Yella Terra Billet Flex Plate – Ford 6cyl Barra 4.0L BA-FG

Yella Terra Billet Flex Plate – Ford 6cyl Barra 4.0L BA-FG

Yella Terra has been designing and manufacturing CNC billet Steel Flywheels for the Performance and Race Industry for the past 25 years.

Applying this experience, Yella Terra are proud to announce the release of our New Ford 6cyl. DOHC 4.0L Flexplate.

With Ford 6cyl turbocharged engines now capable of producing over 1000+ HP the thin factory sheet metal flexplates are failing or fretting loose due to the enormous torsional loads channelled through them.

Yella Terra has engineered an ANDRA specified, Billet Steel Flexplate designed for these performance applications.

Yella Terra’s flexplate is CNC Machined to OE specs and drilled with multiple bolt patterns to accommodate a number of torque converters.

Eight machined slots reduce rotating mass and provide extra airflow around the torque converter.

Our Billet flexplates come ready to bolt on with a new factory spec ring gear, with an assembled weight of just 5.3Kg.

FEATURES

• Explosion Proof Billet Steel.
• CNC machined accuracy to factory specs.
• Offers exceptional Power and Torque holding capacity.
• 10mm material thickness around mount holes to prevent fretting & cracking.
• 8 machined slots to reduce mass and create airflow around converter.
• Meets ANDRA flexplate requirements

Please note: You will require longer flex plate to crank bolts due to the Yella Terra flex plate being thicker then factory. You can find this in the options above.

Additionally, we have provided the option of ARP converter bolts for the same reason.

Barra flexplate or flywheel bolts coming loose is a common issue, typically related to excessively hitting the rev limiter, or in cars which have in the past. When this happens, the damage can have a domino effect quickly becoming expensive, i.e. damaging the cranks mating face, or bolt threads, requiring machining or a new crankshaft to be fitted.

We have tried many various methods over the years to retain these bolts and now only use/recommend one method. This is a method which we use throughout all of the models we specialise in. We highly recommend that we carry out the install, however specific directions are supplied when you purchase this option and want to have a go yourself.

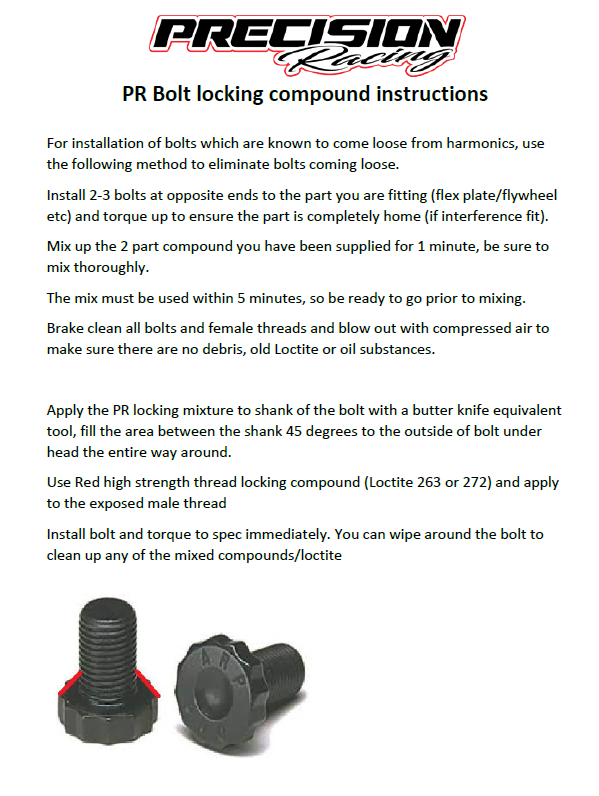

PR Bolt locking compound instructions.

For installation of bolts which are known to come loose from harmonics, use the following method to eliminate bolts coming loose. Install 2-3 bolts at opposite ends to the part you are fitting (flex plate/flywheel etc) and torque up to ensure the part is completely home (if interference fit). Mix up the 2 part compound you have been supplied for 1 minute, be sure to mix thoroughly. The mix must be used within 5 minutes, so be ready to go prior to mixing. Brake clean all bolts and female threads and blow out with compressed air to make sure there are no debris, old Loctite or oil substances. Apply the PR locking mixture to shank of the bolt with a butter knife equivalent tool, fill the area between the shank 45 degrees to the outside of bolt under head the entire way around.Use Red high strength thread locking compound (Loctite 263 or 272) and apply to the exposed male thread Install bolt and torque to spec immediately. You can wipe around the bolt to clean up any of the mixed compounds/loctite.

ARP Flex plate to crankshaft bolts Torque to 90ft/lbs

ARP Flex plate to Torque converter Torque to 80ft/lbs
