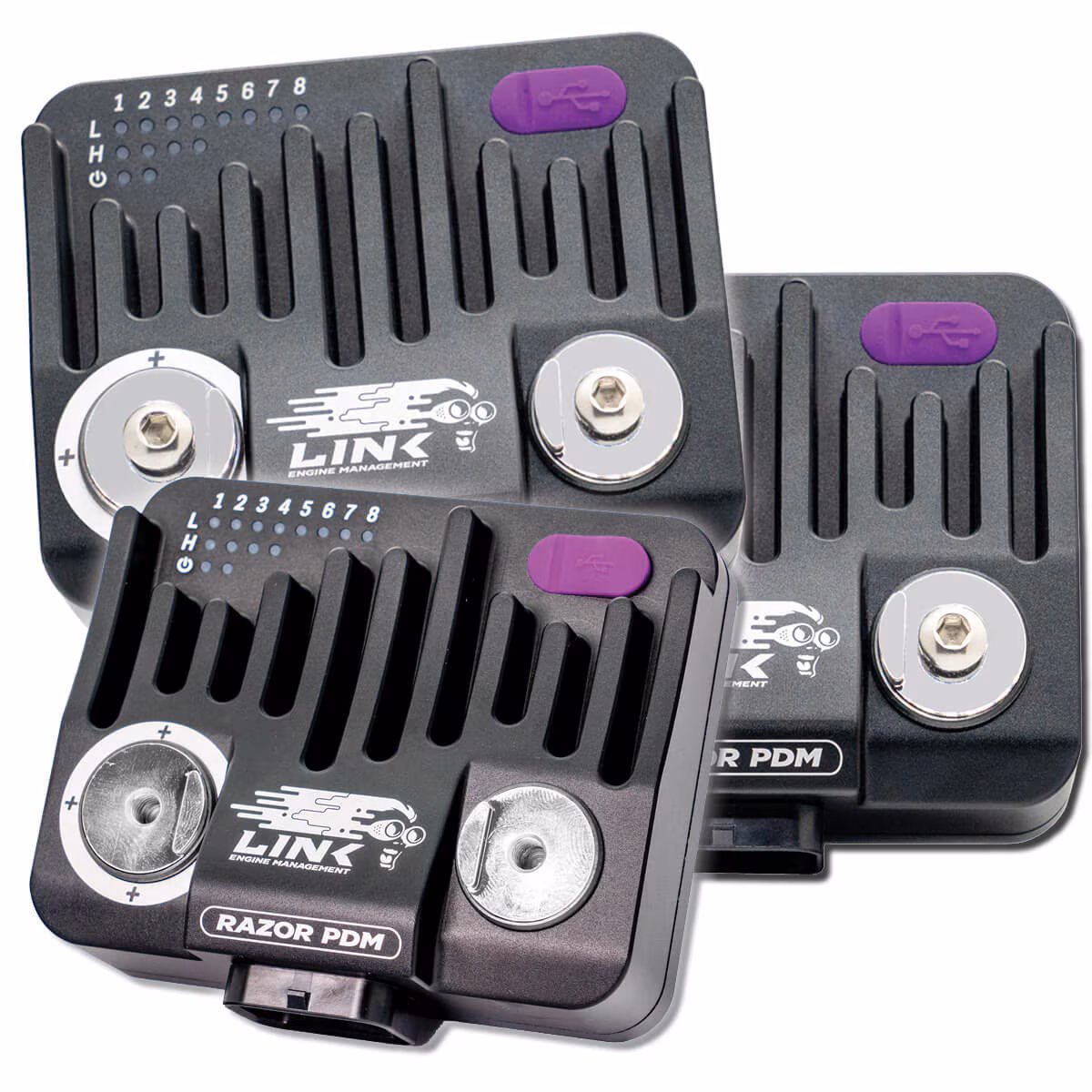

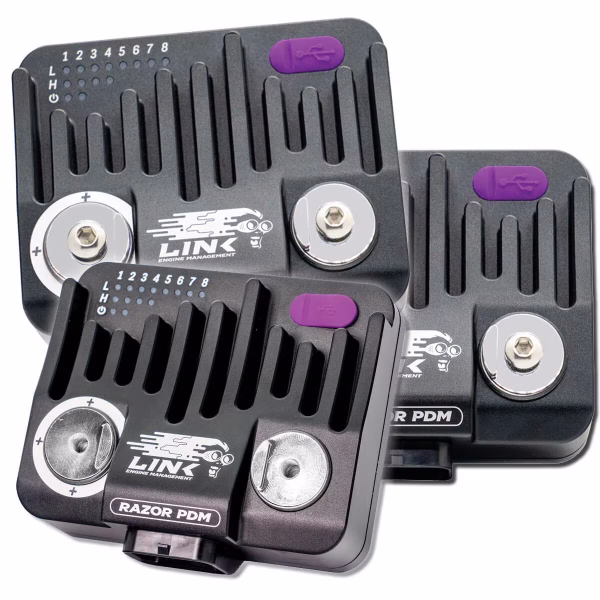

Link Razor PDM Bundle – Triple Pack – 135-9300B

Link Razor PDM Bundle – Triple Pack – 135-9300B

Bundle Includes:

• 3 x Link Razor PDM Units

Overview

Take full control of your electrical system with the Link Razor Triple PDM Bundle — combining three powerful Power Distribution Modules for ultimate flexibility, capacity, and reliability.

The Razor PDM replaces traditional fuses and relays with intelligent, programmable control. It allows logic-based automation, meaning outputs can activate automatically when the vehicle meets specific conditions such as temperature, speed, or pressure thresholds.

Each PDM can manage and protect key components such as fuel pumps, radiator fans, servos, electronic throttles, and lighting, while monitoring analog and digital sensor signals in real time.

Control all outputs through an Analog Switch Panel, CAN Keypad, or ECU, providing superior safety, simplicity, and precision across complex builds.

Performance and Integration

Each Razor PDM handles up to 100A of continuous combined current and 160A peak (non-repetitive).
With three units working together, you can easily expand your input and output capacity by linking them via CAN, allowing seamless integration across the entire electrical system.

The Razor PDM connects directly with Link ECUs via a pre-configured CAN stream for plug-and-play operation, or with other ECU brands using a custom CAN configuration.

All setup, programming, and monitoring are managed through Link’s free PDM Link software, available for Windows.

In the Box (per PDM)

• Link Razor PDM

• Mounting plate and screws

• Superseal C Plug and Pin Kit

• USB-C connection cable

• Positive terminal insulation boot

• 2 x high-current ring terminals and bolts

• Quickstart Guide

Key Features

• Operates as a standalone PDM or integrates seamlessly with Link ECUs

• 4 x high-power outputs (25A continuous each): PWM capable, high-side, low-side, or H-bridge motor control

• 8 x universal A/D I/O pins, configurable as analog or digital inputs (8A max each)

• Software-controlled pull-ups and adjustable switching thresholds for inputs

• Over-current and short-circuit protection with configurable trip and resettable fuse logic

• Advanced control strategies including PID, math functions, and logic expressions

• CAN keypad integration with flexible button logic (compatible with Link G4X and G4+ ECUs)

• Multiple PDM linking via CAN for system expansion

• Logging support via CAN or USB

• USB configuration via PDM Link software (Windows)

• 26-pin Superseal connector

• Fully sealed CNC aluminium enclosure

Technical Highlights

• Continuous Current: 100A per unit

• Peak Current: 160A (non-repetitive)

• Power Outputs: 4 x 25A continuous

• I/O Pins: 8 x universal A/D (8A max each)

• CAN: Supported, with Link pre-configured or custom stream options

• Configuration Interface: USB-C

• Connector: Superseal C (26-pin)

• Enclosure: CNC aluminium, fully sealed

• Software: Link PDM Link (Windows)
