Link G5 Voodoo Neo 4 + DI Driver 4 Bundle – 154-9000B

Link G5 Voodoo Neo 4 + DI Driver 4 Bundle – 154-9000B

Direct Injection ECU Bundle for 4-Cylinder Builds

Optimise your compact engine setup with the G5 Voodoo Neo 4 + DI Driver-4 Bundle — a complete, high-performance solution for direct injection control.

Included Components

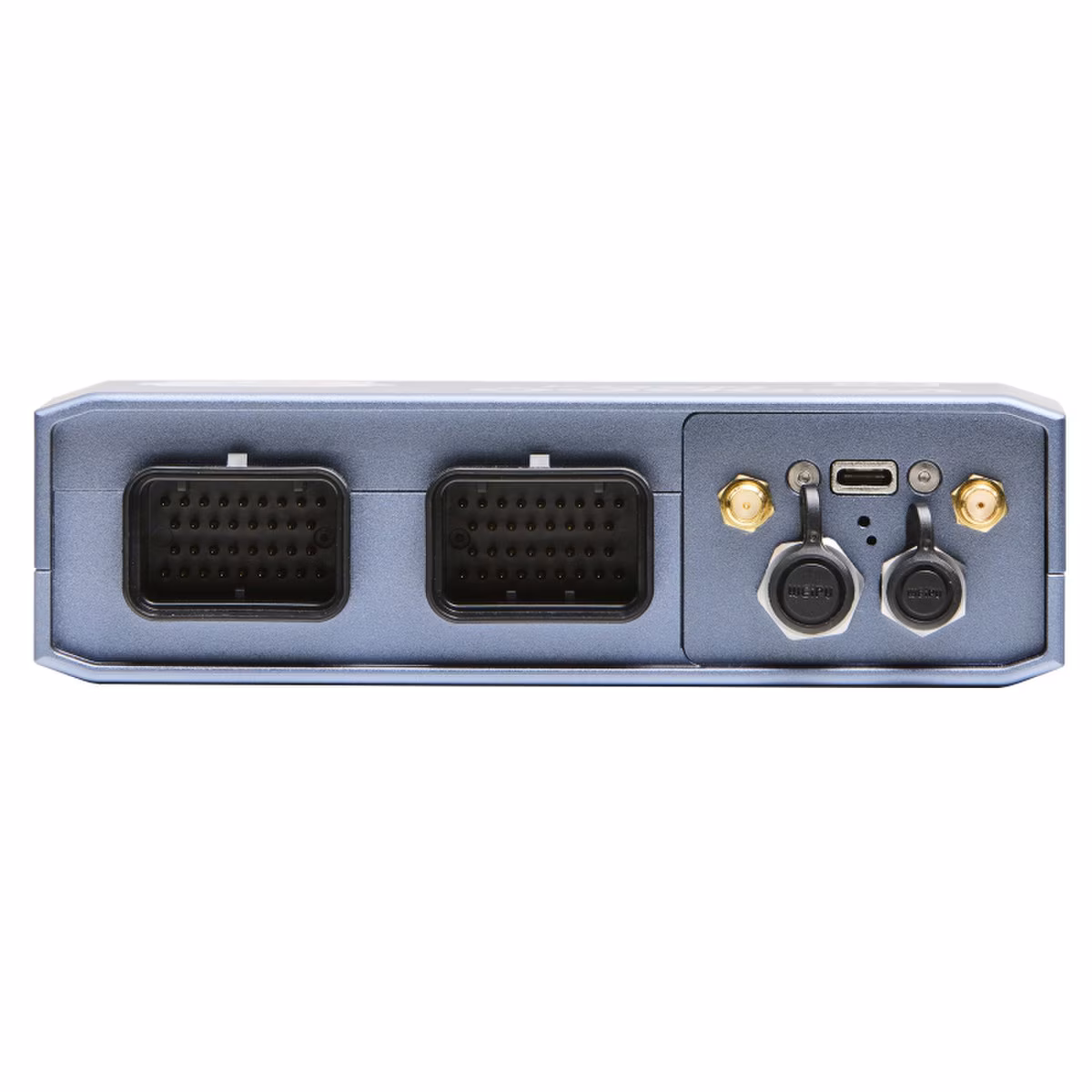

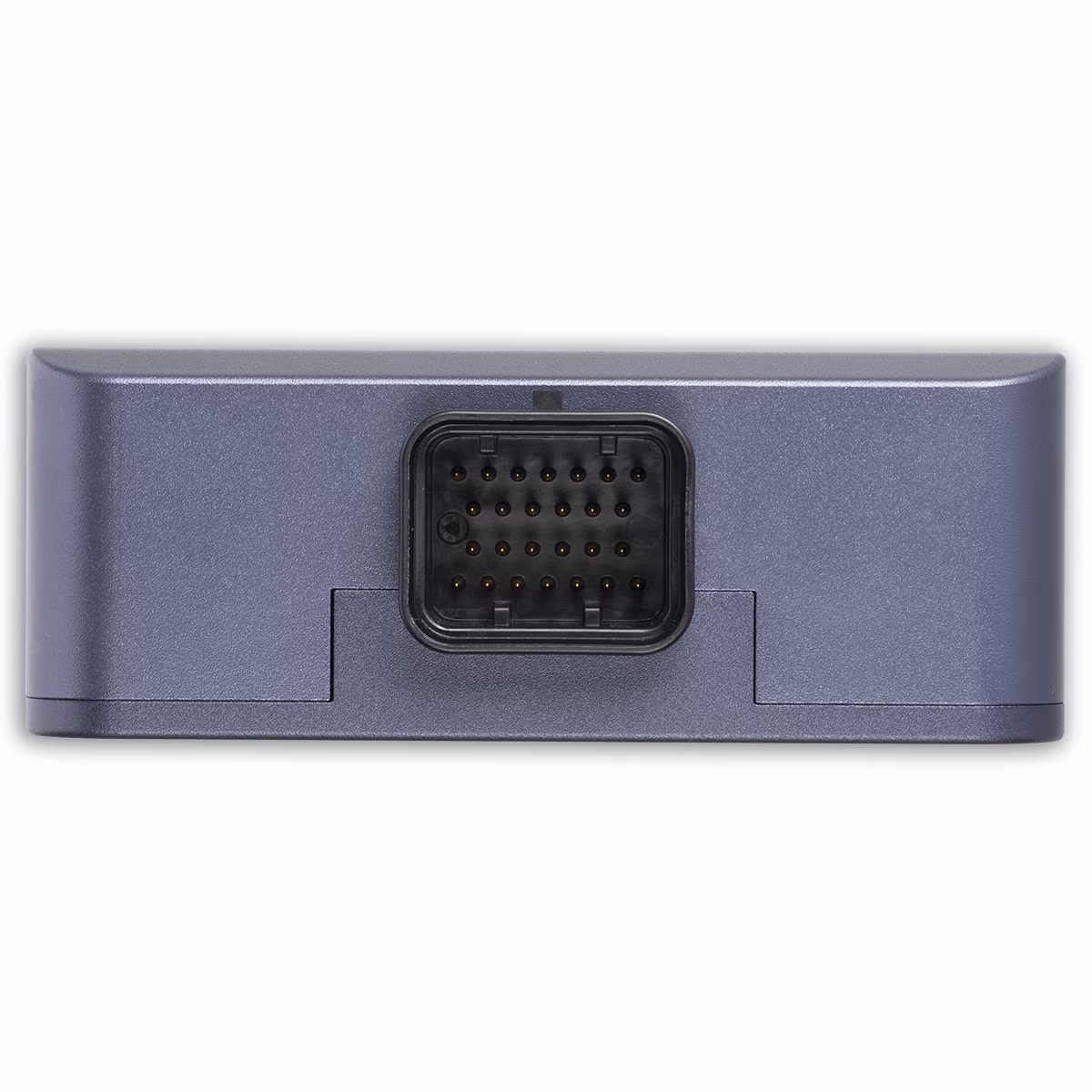

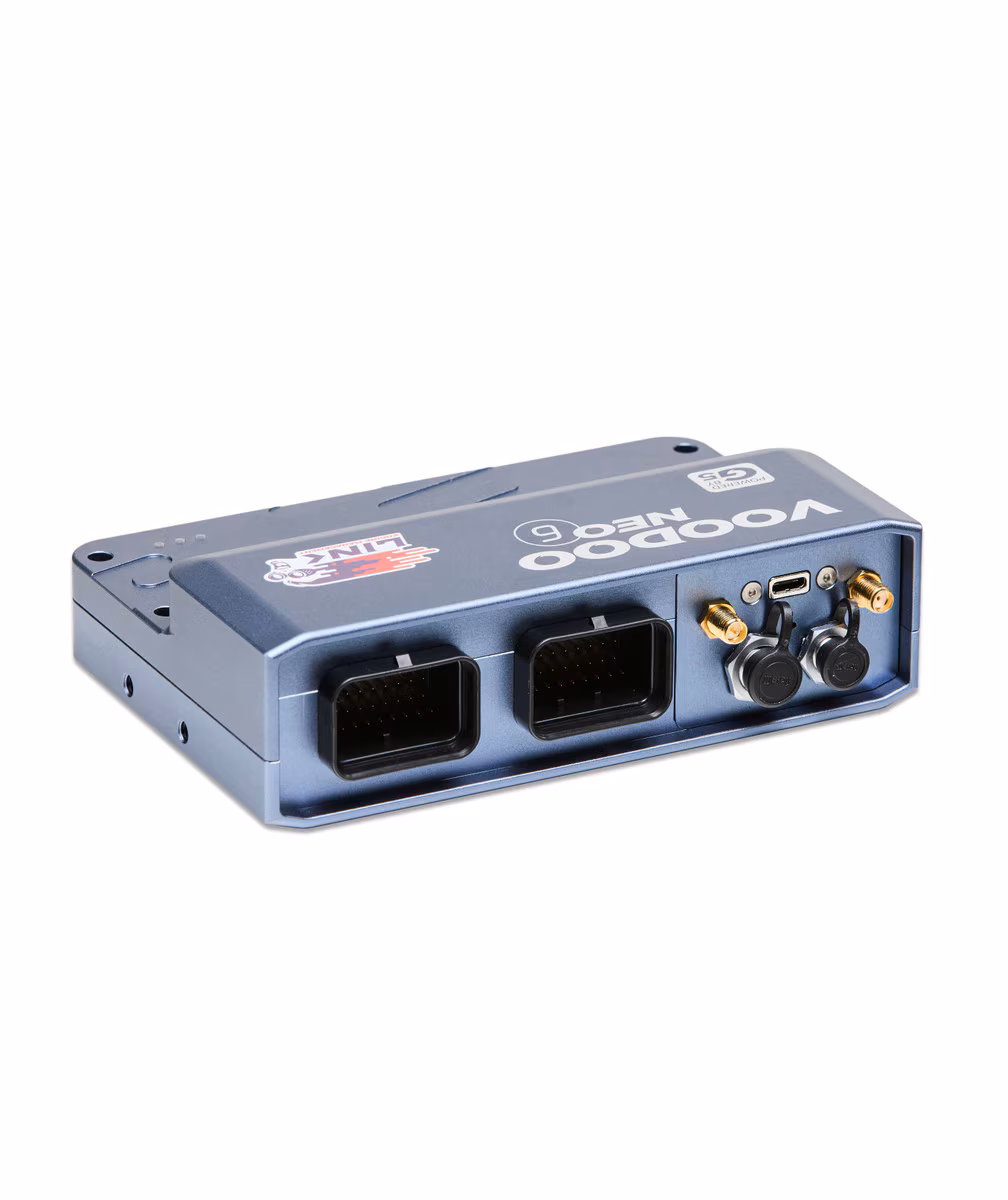

G5 Voodoo Neo 4 ECU
Supports up to 4-cylinder direct injection or 6-cylinder port/direct injection engines with advanced ignition and torque management.

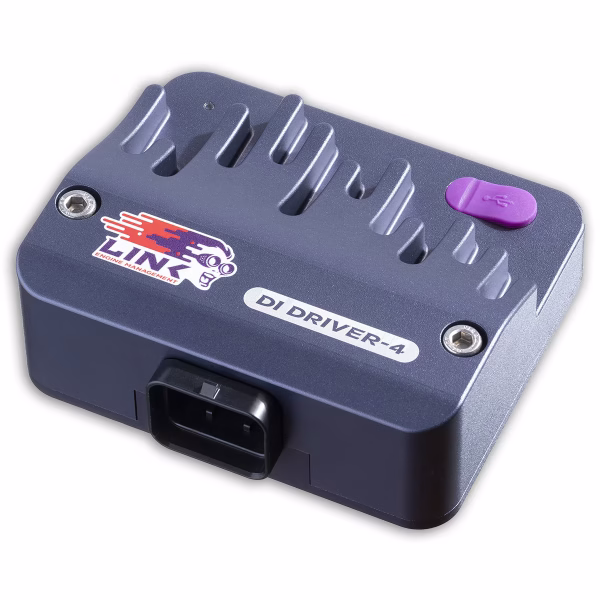

DI Driver-4 Module
Controls up to 4 direct injectors, stackable for expanded systems and multi-pump configurations via CAN.

Key Features

• USB-C (with power-over-USB), Wi-Fi, Ethernet, GPS, and CAN connectivity

• 1 GB onboard data logging (up to 100 kHz, 250 channels)

• 8 injector outputs, 6 ignition, 12 auxiliary, and 6 flexible ADIOs

• Built-in wideband controller and dual E-throttle H-bridge outputs

• Compact, sealed CNC aluminium enclosure with versatile mounting options

Performance Summary

The G5 Voodoo Neo 4 + DI Driver-4 Bundle delivers powerful direct injection control in a compact form factor.
Perfect for tuners who need advanced functionality, quick setup, and maximum flexibility for 4-cylinder or small-capacity DI builds.
