The New Standard in Professional Engine Management

The G5 Voodoo Pro puts real magic in your hands, unlocking a new world of tuning possibilities with advanced control of port and direct injection, expanded I/O, dual microprocessors, and next-generation connectivity.

Engineered for professional motorsport, this ECU delivers unmatched performance, flexibility, and communication speed in a compact, race-ready design.

---

Engine Control Capability

With 12 Injection, 8 Ignition, and 4 multi-purpose (inj/ign/aux) drives — 24 total — the G5 Voodoo Pro can control:

• Up to 12 cylinders or 6 rotors with sequential injection and direct spark

• Up to 8 cylinders with staged injection and direct spark

The G5 Voodoo Pro is the ultimate choice for professional-level motorsport and advanced engine development.

---

Product Overview

• Built-in Wi-Fi for real-time PC Link tuning and wireless data transfer

• Integrated GPS (up to 50 Hz) for position, speed, and logging

• Dual onboard digital wideband lambda controllers

• Dual E-Throttle (Drive-by-Wire) with solid-state throttle relays

• Direct Injection support on up to 12 channels (via external OEM or aftermarket DI driver box)

• Dual microcontrollers for dedicated engine and communication processing

• Link CAN Files – create, lock, and share custom CAN data streams

• Full compatibility with Link’s PC Link software – open G4X and G5 log/map files interchangeably

• Flexible mounting – through-hole or side-mount options for easy installation

• CNC-machined sealed aluminium housing for motorsport durability

Requires A, B & E connector kits (sold separately).

---

Included in the Box

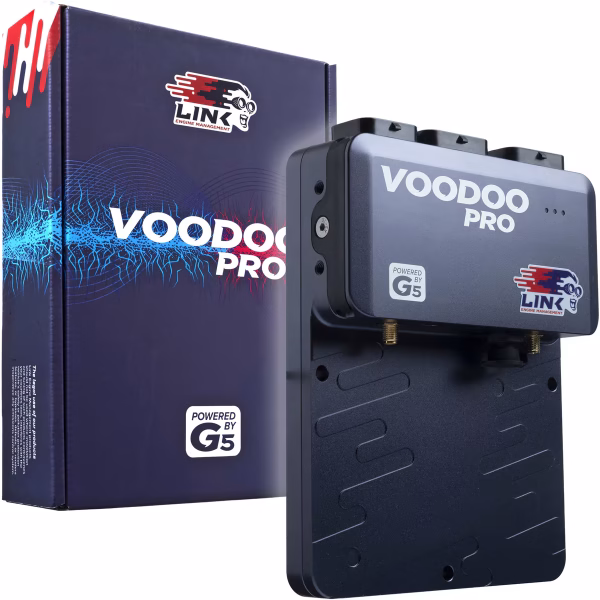

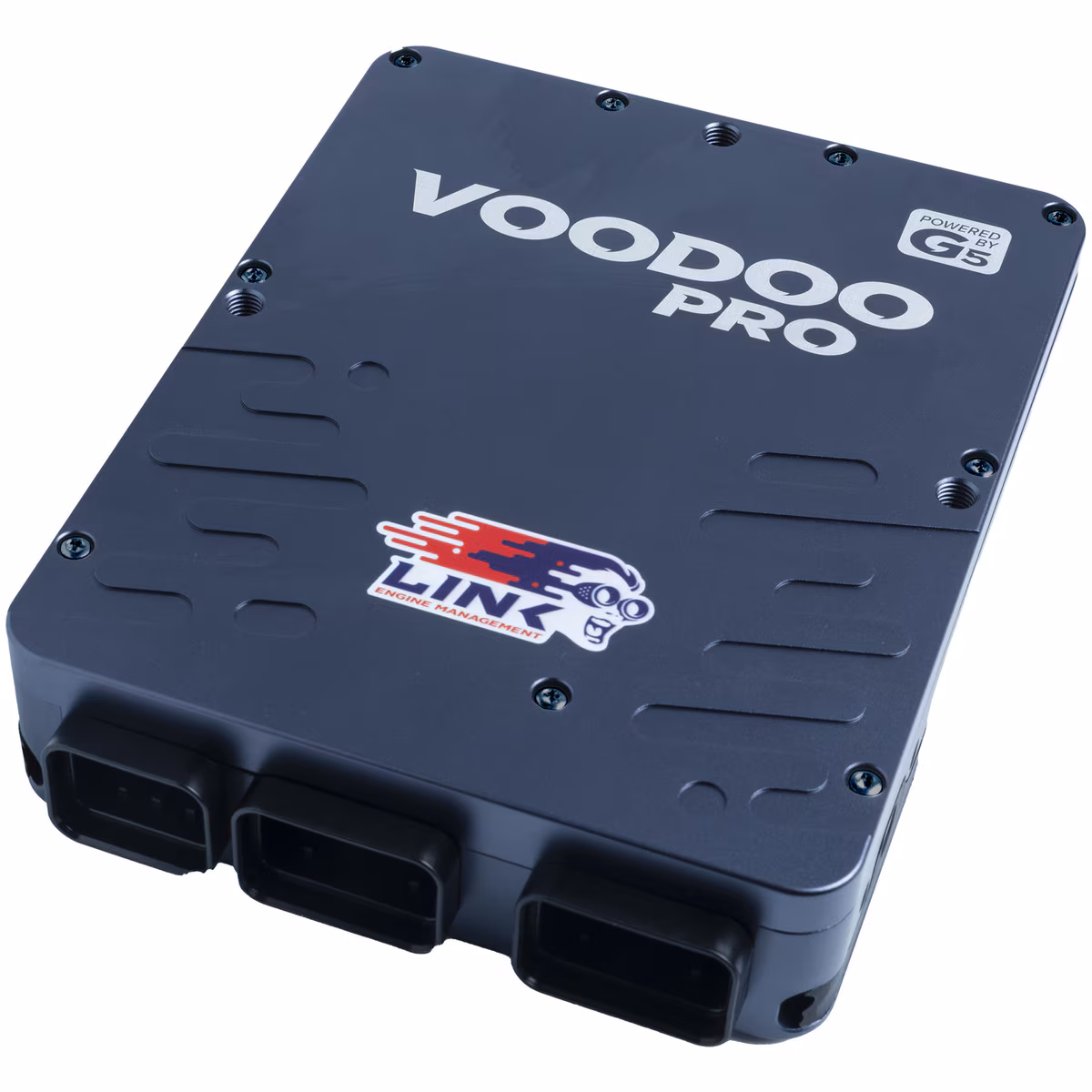

• G5 Voodoo Pro ECU

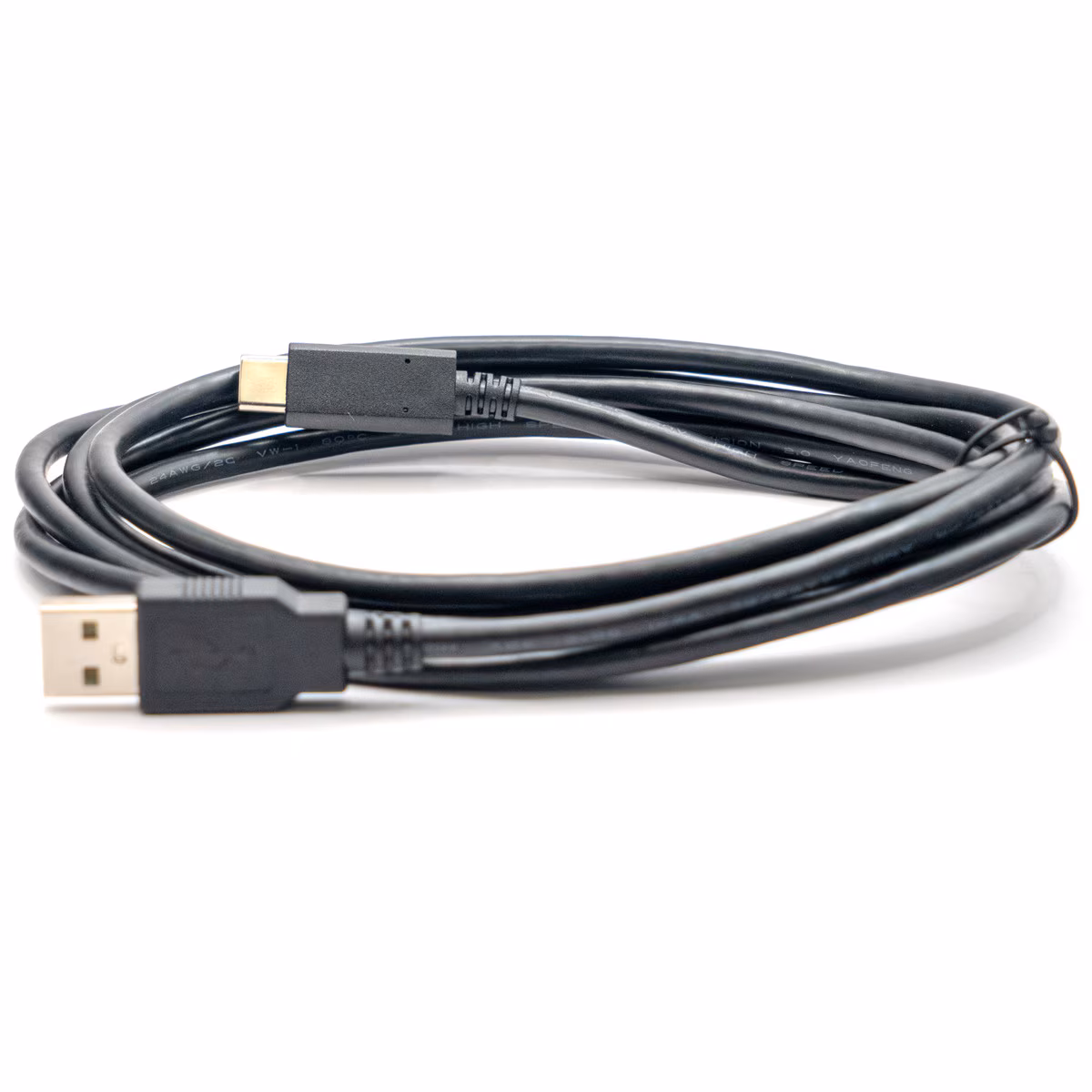

• USB-C connection cable

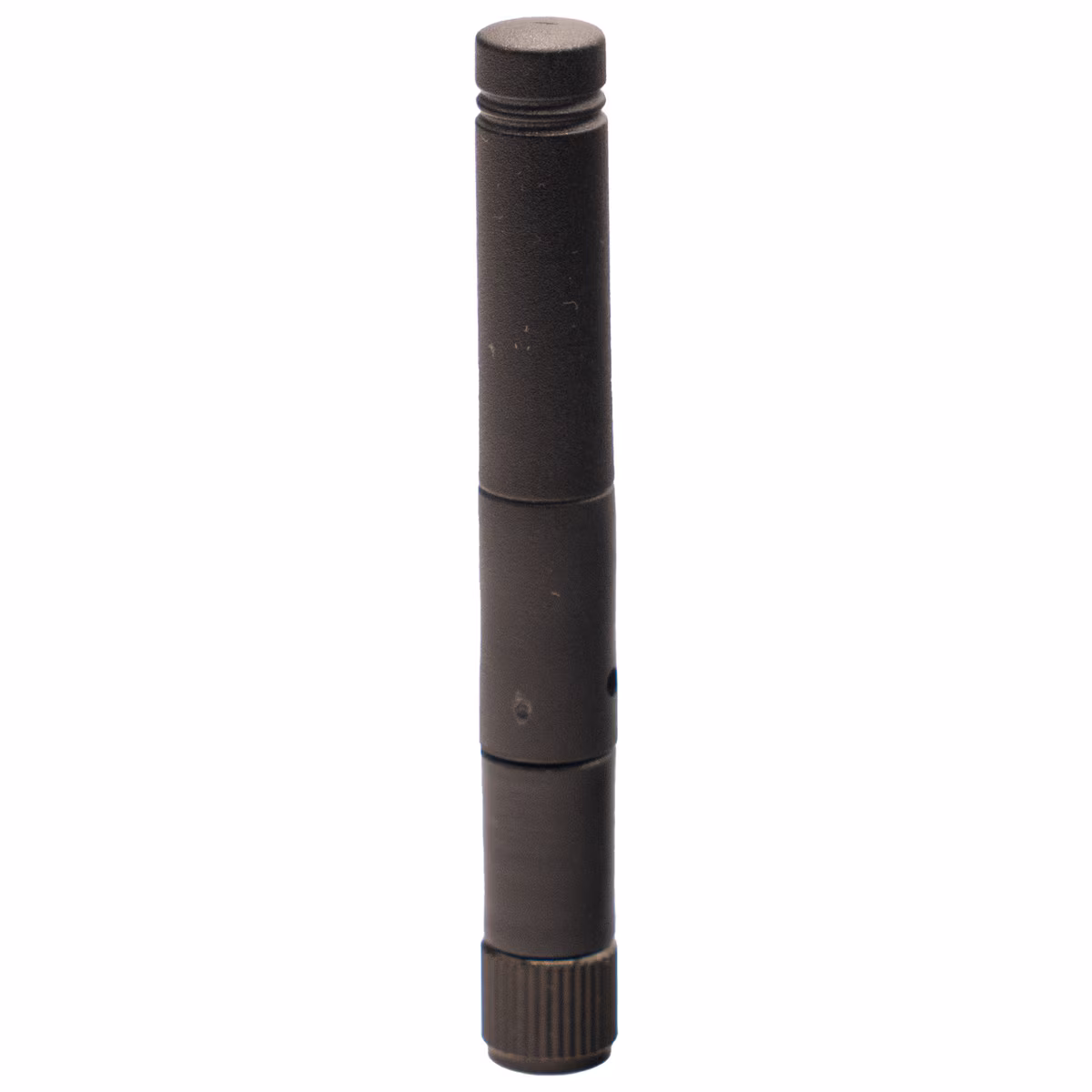

• Wi-Fi antenna

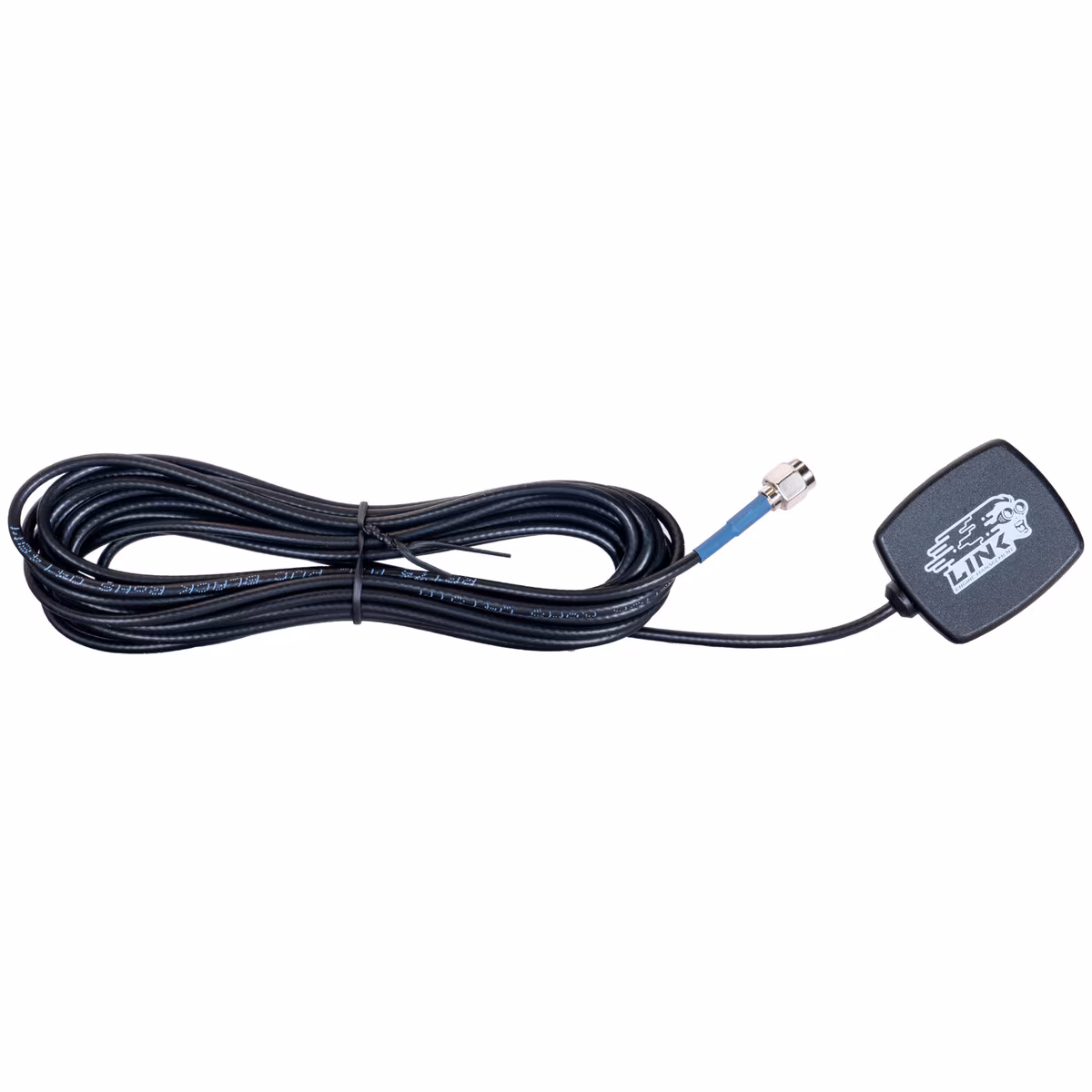

• 4 m GPS antenna (magnetic or adhesive mount)

• USB-C and SMA dust covers

• QuickStart Guide (A5)

• Installer I/O table (A3)

• Link stickers

---

Inputs and Outputs

Injection and Ignition Control

• 12 injector pins

• 8 ignition pins

• 4 injector/ignition dual-role pins

• Up to 30 auxiliary outputs (depending on setup):

  • 8 dedicated auxiliary pins

  • 4 shared E-Throttle H-Bridge pins

  • 2 shared wideband heater pins

  • Up to 16 available from unused injector and ignition drives

• All ignition and auxiliary pins are back-feed protected

Sensor and Input Channels

• 14 analogue inputs

• 10 digital inputs

• 4 temperature inputs

• Dual knock inputs

• 2 trigger inputs

• Dedicated ignition switch pin

• Dual internal wideband lambda controllers

• Dual E-Throttle drivers with internal relays

• 5 V sensor supply

• CAN 1 input via CAN connector

---

Communications

• USB-C (cable included)

• Wi-Fi – connect directly to ECU or via an existing network

• Dual CAN channels – CAN 1 via connector, CAN 2 via header E

• GPS – functional when antenna is connected

Connectivity Standards:
USB-C | Wi-Fi | CAN | GPS

---

Data Logging

• 1 GB onboard storage

• Wi-Fi log transfer

• Up to 100 kHz total logging rate

• 250 configurable logging channels

---

Size and Weight

• Length: 177.1 mm (6.97 in)

• Width: 137.3 mm (5.40 in)

• Height: 15.5 – 40.2 mm (0.61 – 1.58 in)

• Weight: 795 g (28 oz)

---

Mounting Options

• 3 x top-down through-holes (M5 or 3/16 in socket screws)

• 4 x M5 side mounting points for bracket or dash bar mounting

---

Connectors

• A, B & E Headers: Link Superseal 1.0 connectors

• CAN 1: WEIPU connector with power and ground

• GPS: SMA antenna

• Wi-Fi: RP-SMA antenna

• USB: Type-C

---

Summary

The G5 Voodoo Pro is Link’s flagship ECU — combining unrivalled processing power, advanced I/O capability, and seamless PC Link integration.
With built-in wideband, Wi-Fi, GPS, and dual E-Throttle control, it sets a new benchmark for engine management in professional motorsport applications.
