Easy to install. Affordable. Reliable.

G4X Plug-In ECUs offer the latest in engine management technology, designed to easily maximise your car’s potential.
This ECU fits neatly inside the factory OEM enclosure. Installation is simple, with no alteration of the factory wiring loom required for the models listed below.

Designed for the 1JZ-GTE (Non-VVTi) engine.

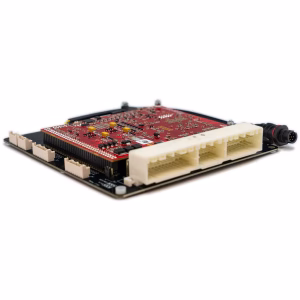

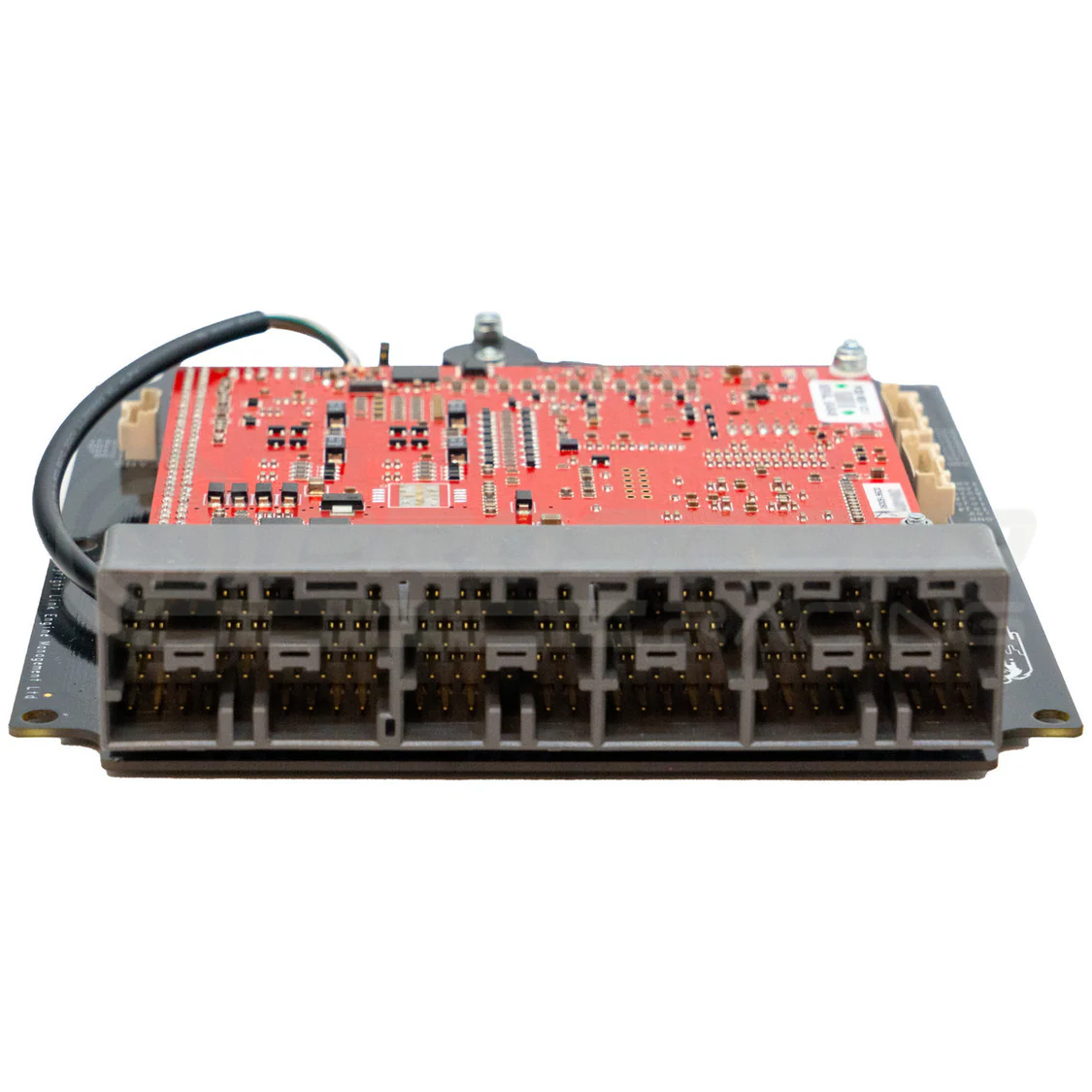

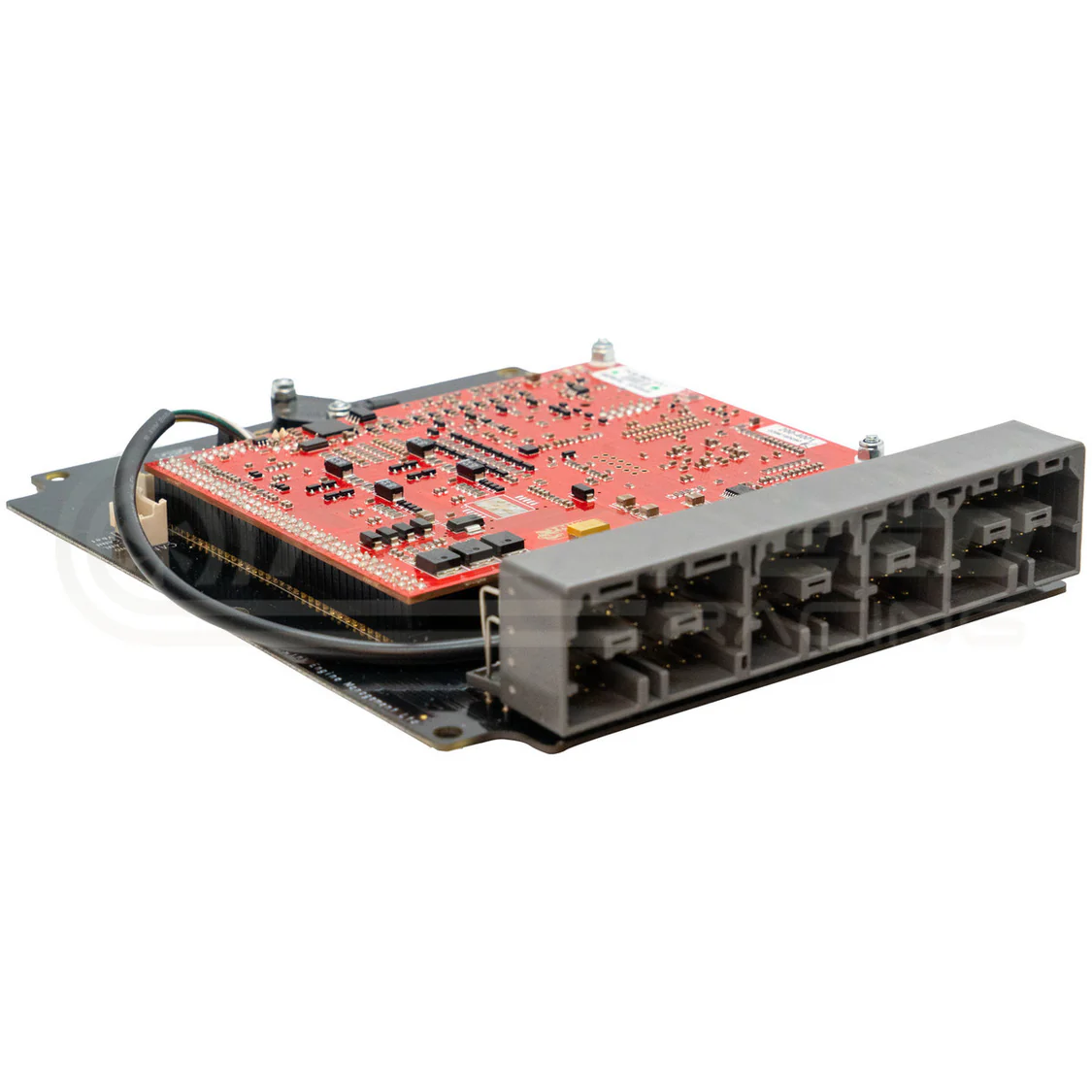

Before purchasing, please ensure your connector matches the header shown in the product photo.
This ECU is for manual transmission models only and includes an onboard 7-bar MAP sensor.
Most factory features are supported (factory traction control not supported – dash light may remain illuminated).
Refer to the Features section for I/O expansion options.

Suitable Applications

Toyota JZX90 (Chaser / Cresta / Mark II) – 1JZ-GTE (Non-VVTi), Manual Transmission
Toyota JZZ30 (Soarer) – 1JZ-GTE (Non-VVTi), Manual Transmission

CAN Connection Note

This Plug-In features a new 4-pin powered CAN connector and cannot use the old CANPCB cable.
Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices.
This 4-pin port and cable provide both CAN communication and a protected 12V power and ground supply, protected by a self-resetting 3A fuse.

G4X Plug-In Key Features (where applicable)

Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features – antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune – automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 megabytes data logging memory
Staged injection
Knock control with “windowing”

I/O Expansion Options

Expansion Connector 1
Pin 1 – Ground (Signal)
Pin 2 – +5V Out
Pin 3 – Injector 6
Pin 4 – DI 8
Pin 5 – DI 7
Pin 6 – IGN 8
Pin 7 – AN Temp 4
Pin 8 – AN Temp 3

E-Throttle Connector
Pin 1 – Ground (Signal)
Pin 2 – +5V Out
Pin 3 – An Volt 4
Pin 4 – An Volt 5
Pin 5 – An Volt 6
Pin 6 – An Volt 7
Pin 7 – Aux 10
Pin 8 – Aux 9
