Elixir 1680 Brushless Fuel Pump Surge Tank Kit – Universal 2,700whp+ E85

Elixir 1680 Brushless Fuel Pump Surge Tank Kit – Universal 2,700whp+ E85 (ELIXIR-1680-SURGE-KIT)

The Elixir 1680 is an extremely high-output brushless fuel pump system developed for serious high-horsepower petrol and E85 applications. It provides exceptional fuel delivery from a single pump while avoiding the electrical load, heat and complexity associated with running multiple conventional fuel pumps.

At Precision Racing, we have used a single Elixir 1680 to support over 2,700whp on E85 at approximately 90psi fuel pressure and 13.7V, demonstrating the capability of this pump in genuine high-power applications. Despite its enormous fuel-flow capability, the 1680 draws under 70 amps at full load in our 2,700+whp application.

The brushless motor is controlled by Elixir’s proprietary controller, allowing PWM variable pump-speed control. Pump output can be reduced during low-load operation and increased progressively as fuel demand rises, significantly reducing unnecessary electrical load and fuel heating during normal operation while retaining the fuel delivery required for extreme power levels under full load.

Why Run a Single Elixir 1680?

• Under 6 amps at low fuel flow (idle) at 3 bar base pressure

• Proven by PR at 2,700+whp on E85 at 90psi fuel pressure

• Under 70 amps current draw at 13.7V in our 2,700+whp application

• Massive fuel-flow capability from a single brushless pump

• PWM variable-speed pump control

• Reduced fuel heating during low-load operation

• Reduced electrical demand compared with large multi-pump configurations

• Less wiring, plumbing and overall fuel system complexity

• Suitable for extreme-power street, roll racing and drag applications

• Quiet pump operation – no noise

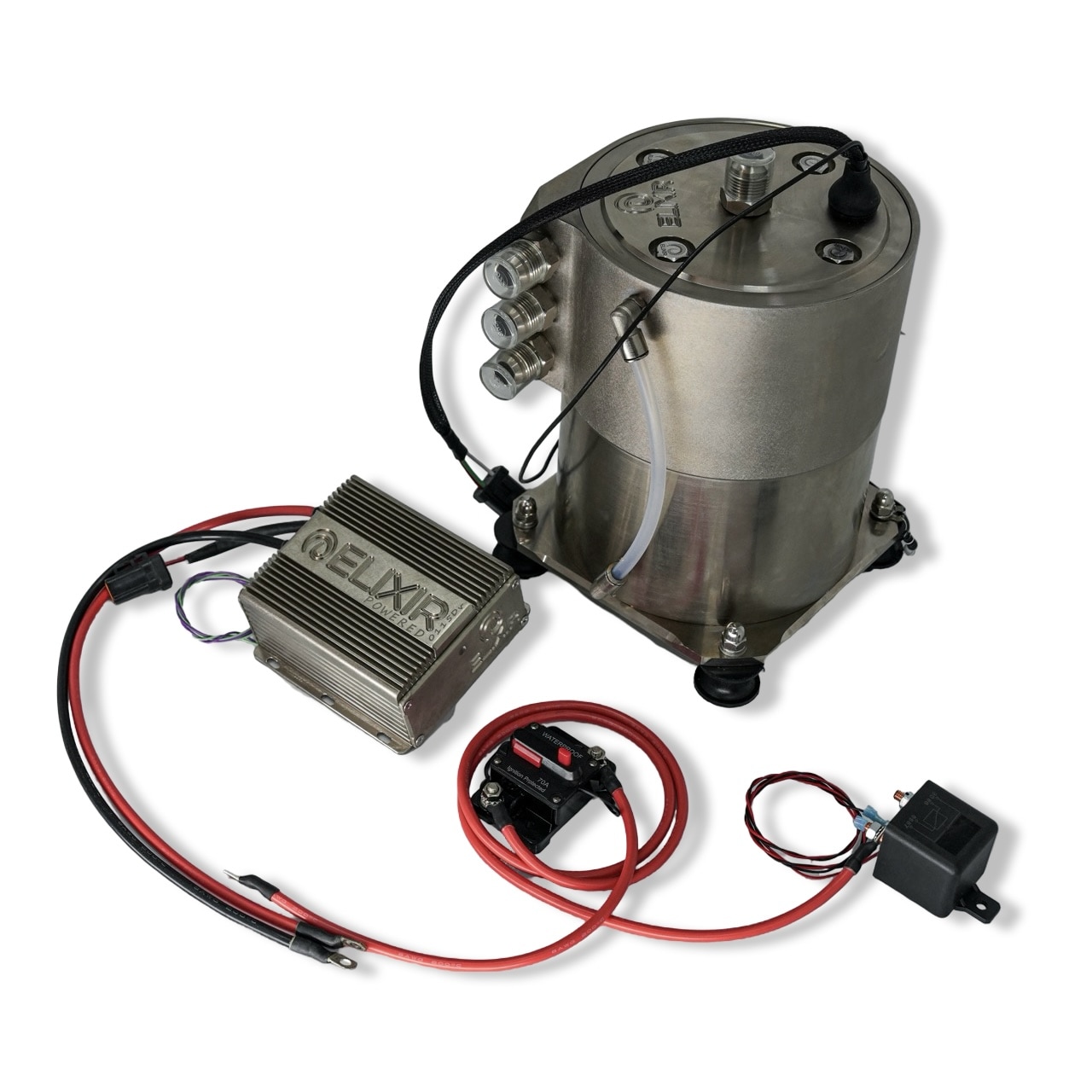

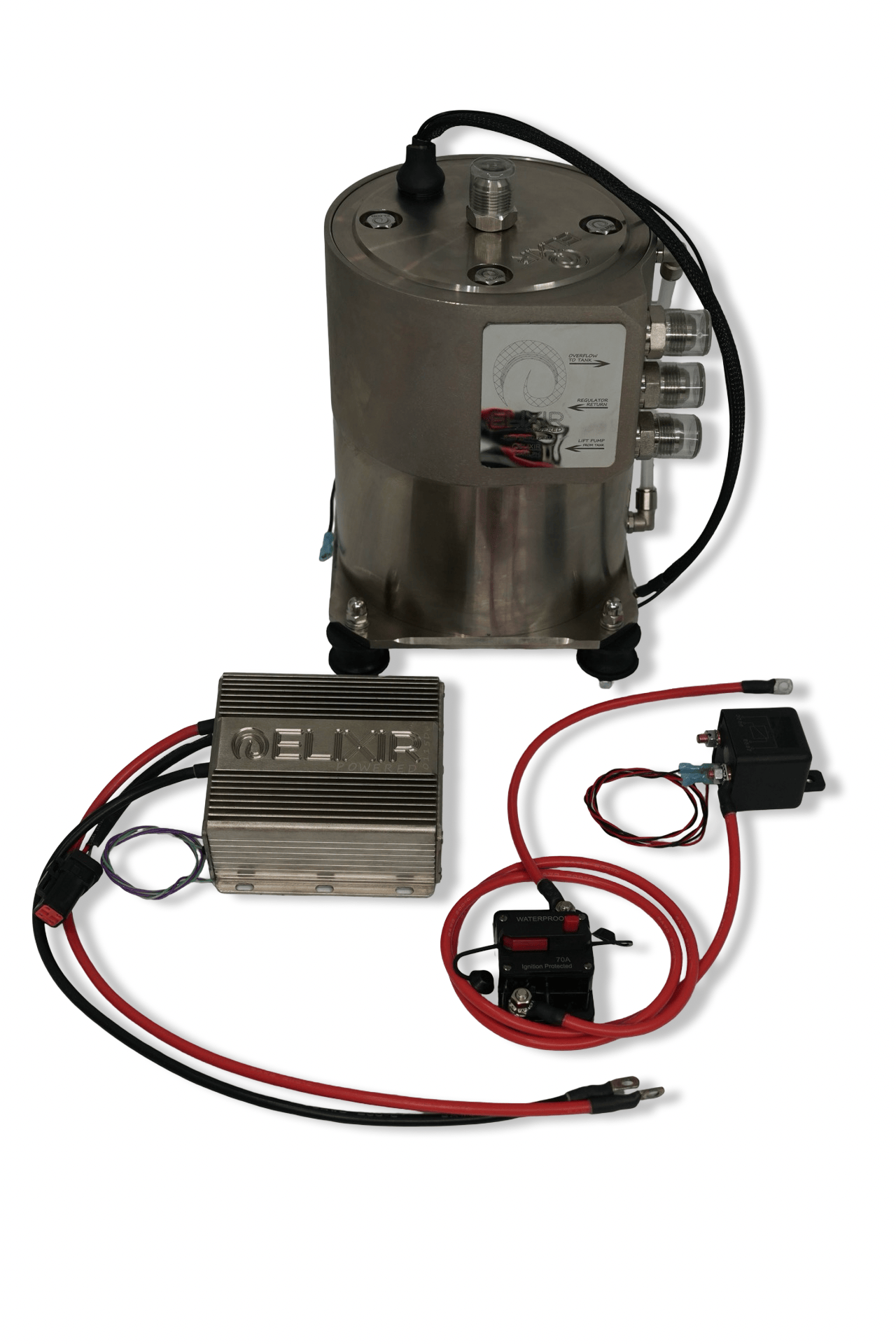

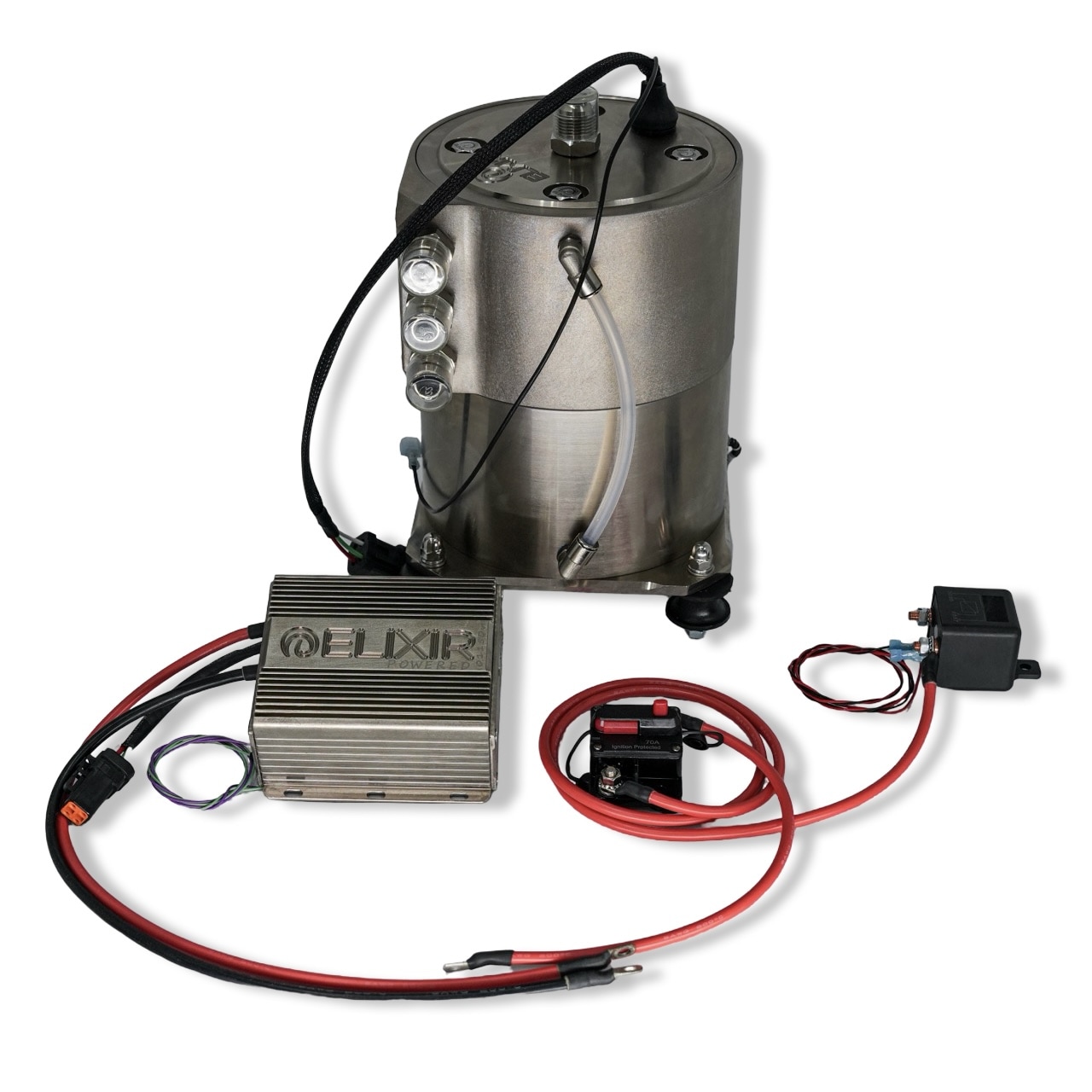

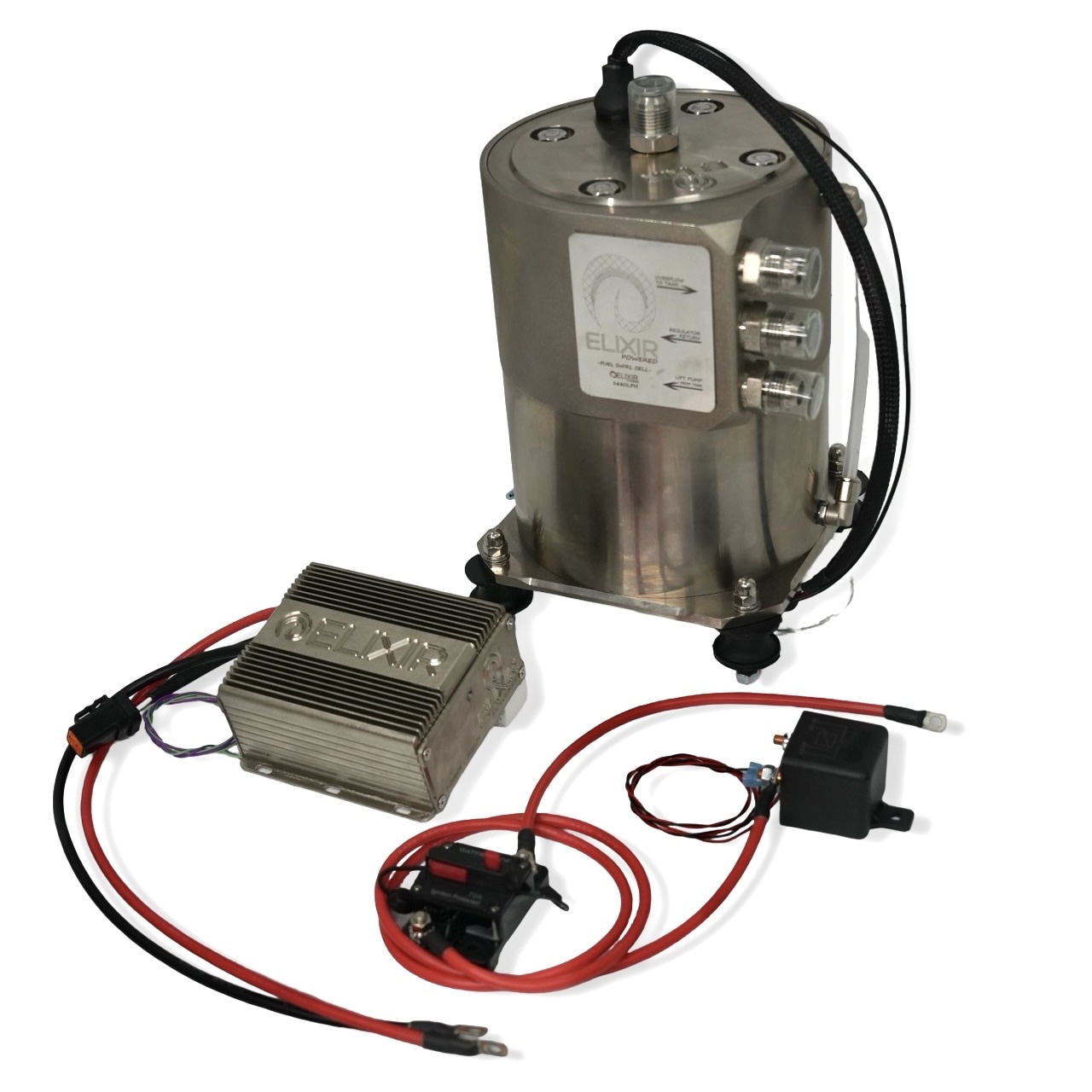

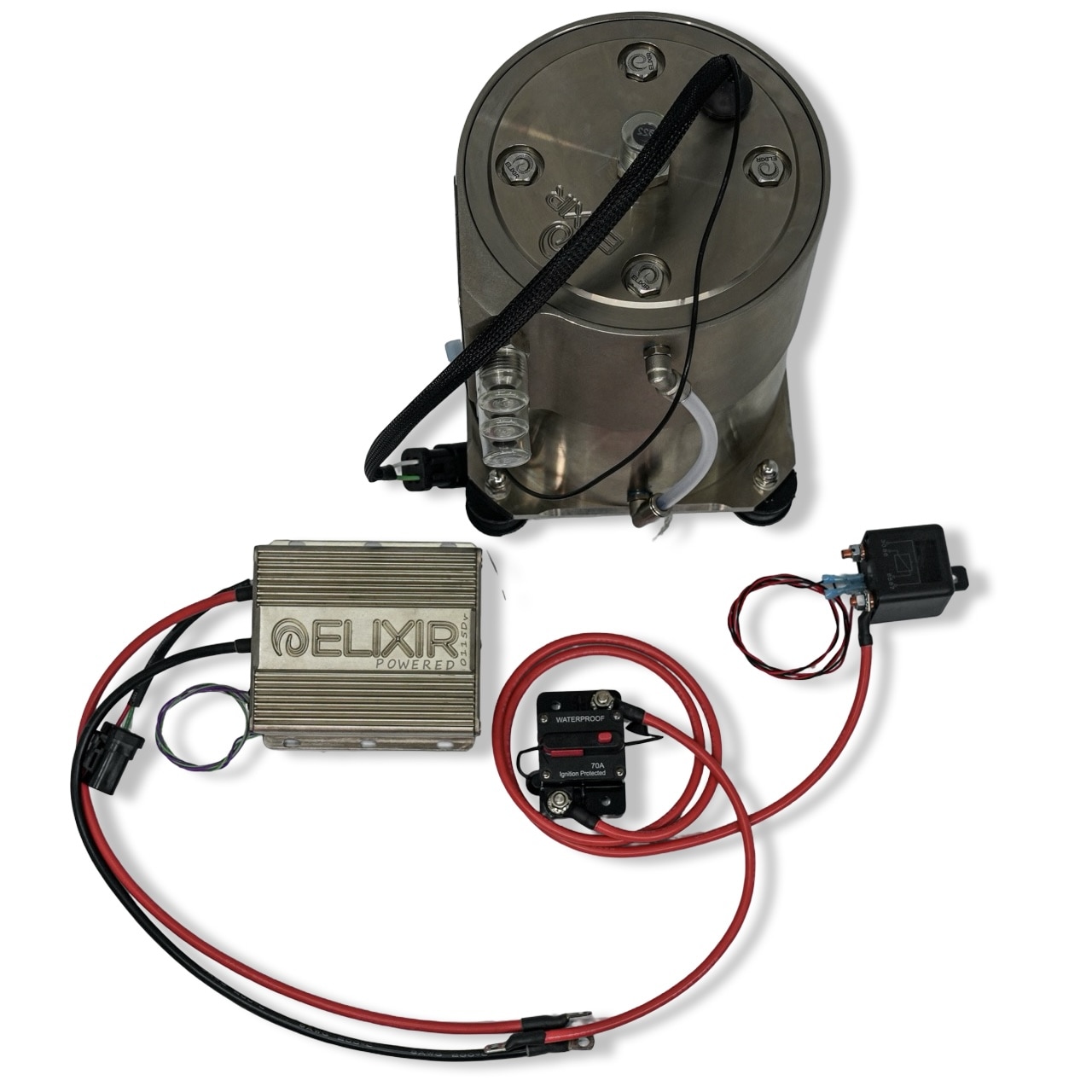

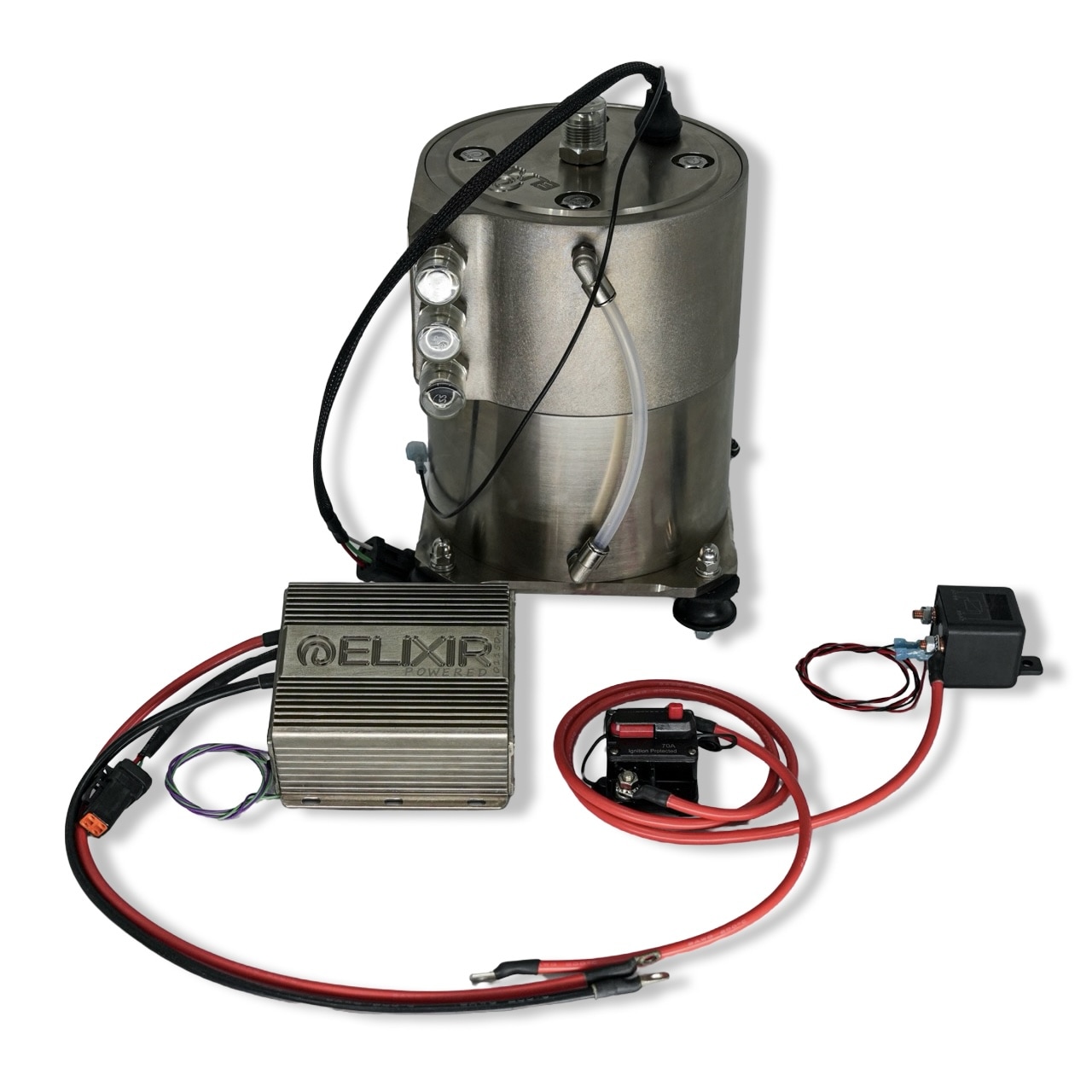

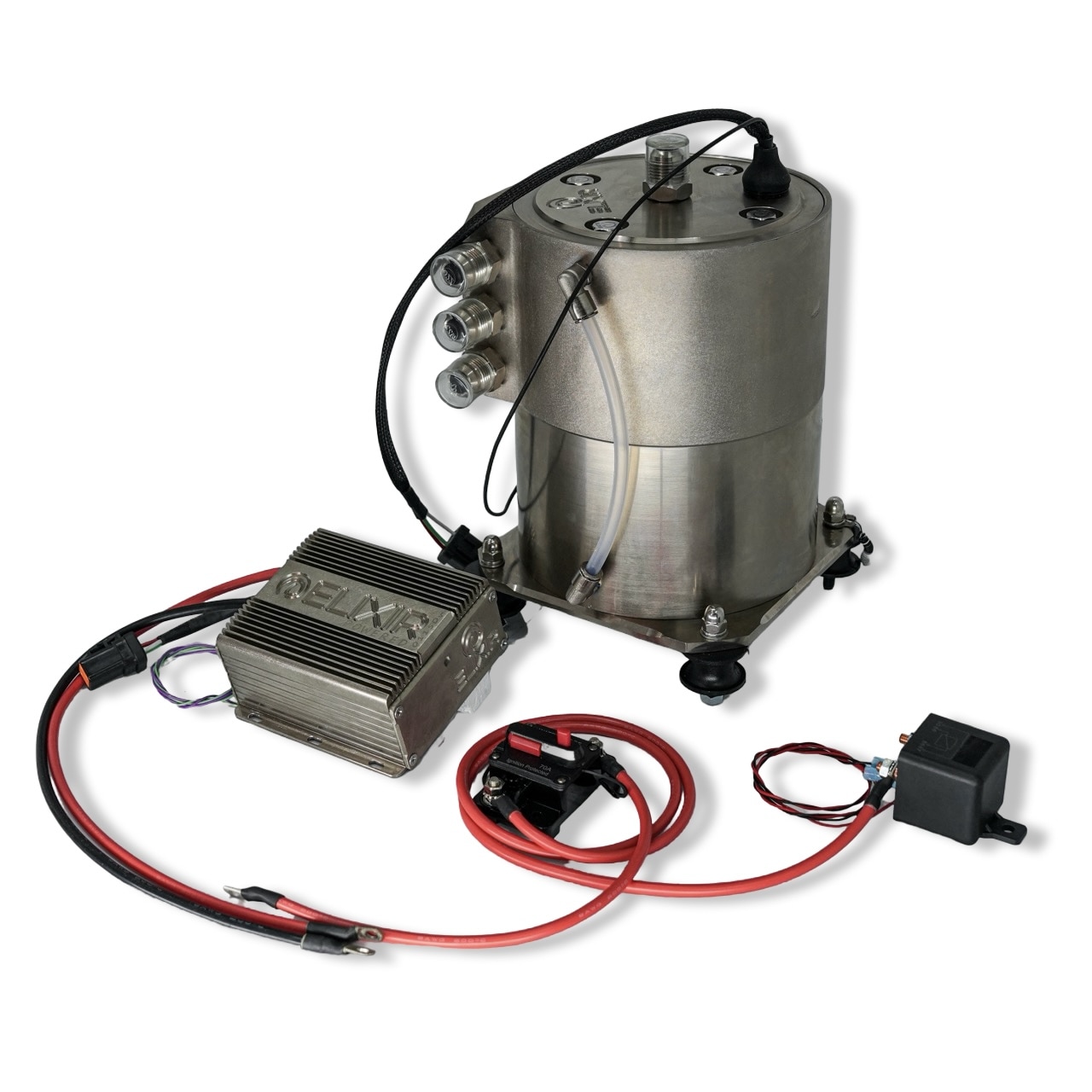

Kit Includes

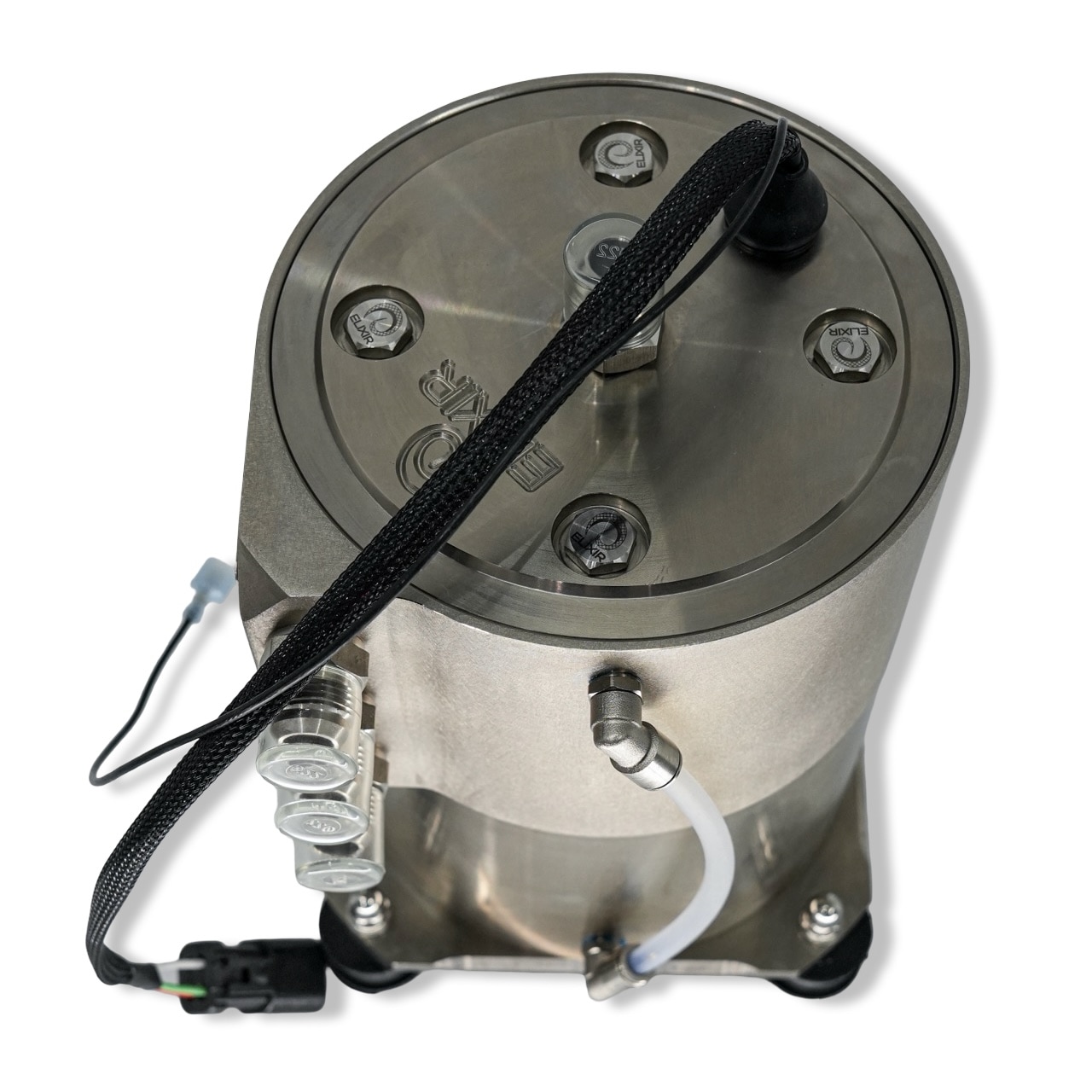

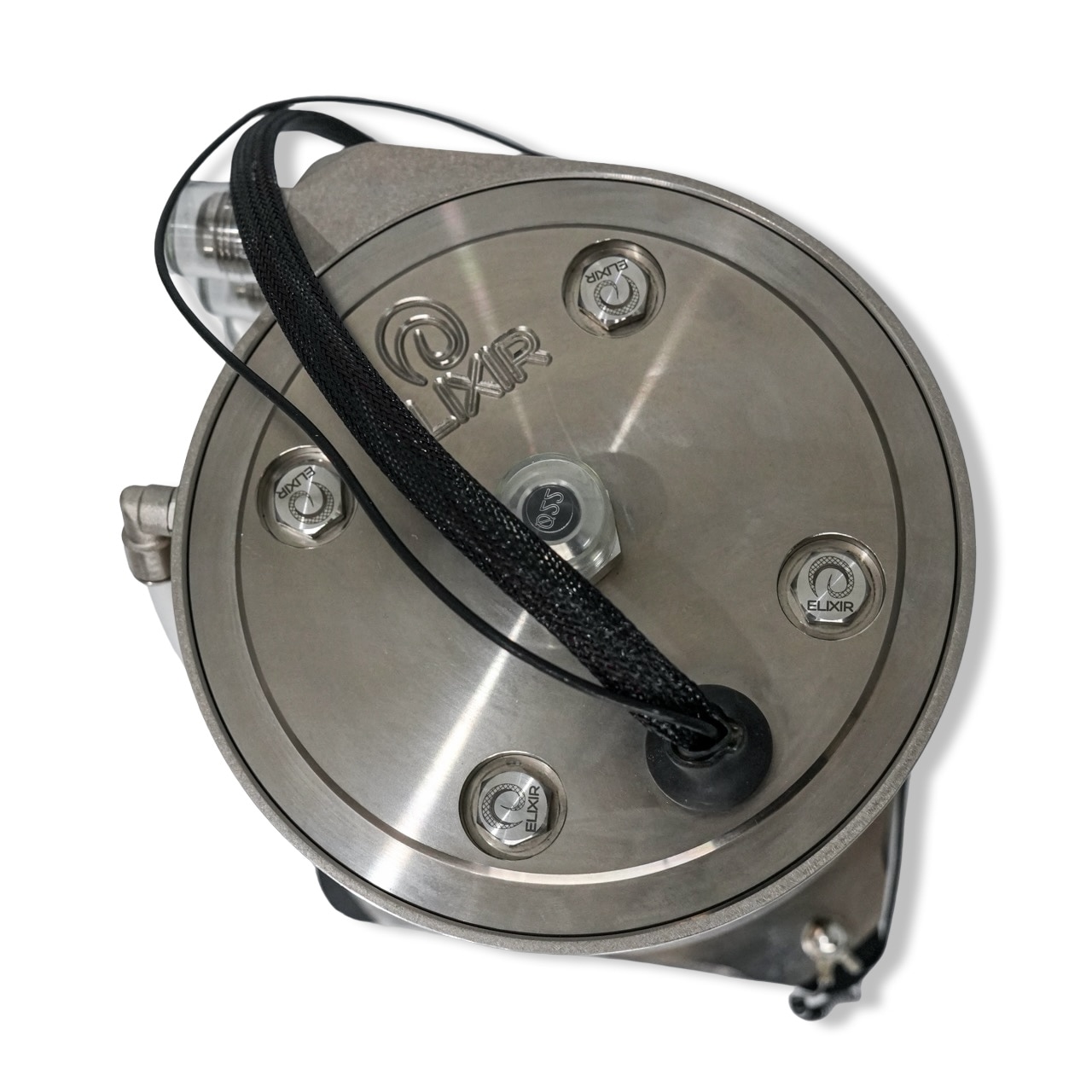

• Elixir stainless steel 5L surge tank system

• Elixir 1680 high-flow brushless fuel pump

• Fully assembled surge tank and pump, pressure tested and ready to mount

• Proprietary Elixir brushless pump controller

• PWM variable pump-speed control capability

• Solid-state relay

• Main power supply wiring

• Pre-pump fuel filter

For applications requiring extreme fuel volume without resorting to complicated multi-pump systems, the Elixir 1680 provides a compact and highly capable single-pump solution.

PR tested and proven at over 2,700whp on E85 from a single pump.

NOTE: For high HP methanol applications, a two-pump option can be configured – please email or call us for pricing and availability.

NOTE: FUEL PUMP MUST NOT RUN DRY – THIS WILL CAUSE INSTANT DAMAGE TO THE PUMP. ENSURE PUMP IS SUBMERGED BEFORE OPERATING.
