Billet Ice Box & Intercooler Water Tank Lid – Universal 152mm Opening

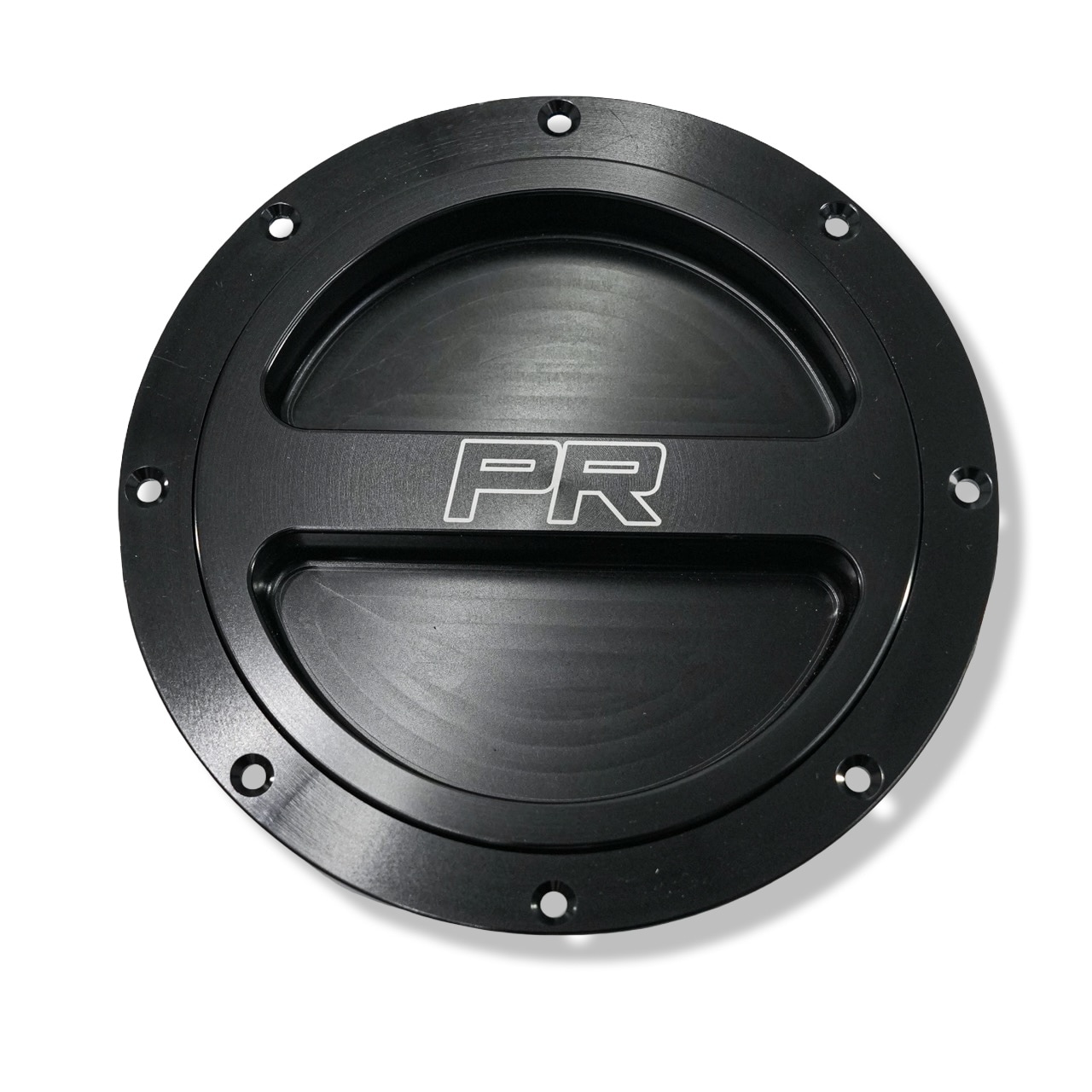

Billet Ice Block Lid 1 Of 2

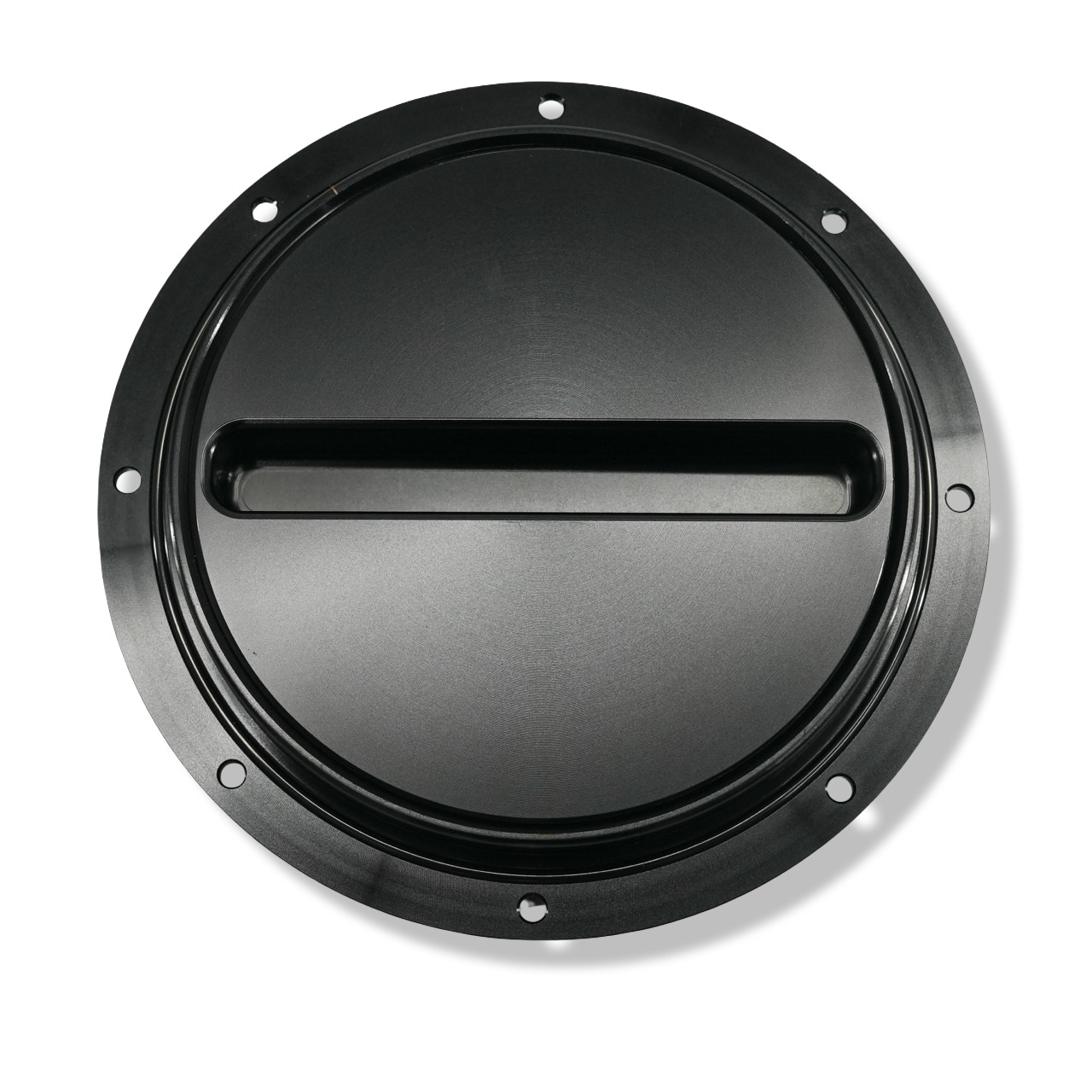

Billet Ice Block Lid 2 Of 2

AUD $245.45 ex. GST

  • Universal black anodised billet aluminium lid

  • Large 152mm internal opening

  • Suits a 165mm tank cut-out

  • O-ring sealed, O-rings included

SKU: PR-ICEBOX-LID Category: Brand:

Description

Billet Ice Box & Intercooler Water Tank Lid – Universal 152mm Opening (PR-ICEBOX-LID)

The PR Billet Ice Box / Water Tank Lid is a universal billet aluminium lid designed for custom ice box, intercooler water tank and reservoir applications.

Machined from aluminium and finished in black anodising with an engraved PR logo, the lid uses an O-ring face seal against the tank and a separate O-ring seal on the removable centre plug for a clean, reliable installation.

The large 152mm internal opening provides easy access for filling with ice, water or coolant, making the lid well suited to high-performance intercooler tank applications.

Specifications

  • Black anodised billet aluminium construction

  • Engraved PR logo

  • 201.5mm overall diameter

  • 152mm internal opening

  • Designed to suit a 165mm tank cut-out

  • 8 x 5.5mm mounting holes

  • 187.5mm PCD mounting pattern

  • O-ring face seal between lid and tank

  • O-ring sealed removable centre plug

  • O-rings included

  • Suitable for aluminium and other custom fabricated tanks

Ideal for custom ice boxes, intercooler water tanks, coolant reservoirs and other motorsport fluid tank applications where a large, easily accessible and properly sealed opening is required.
