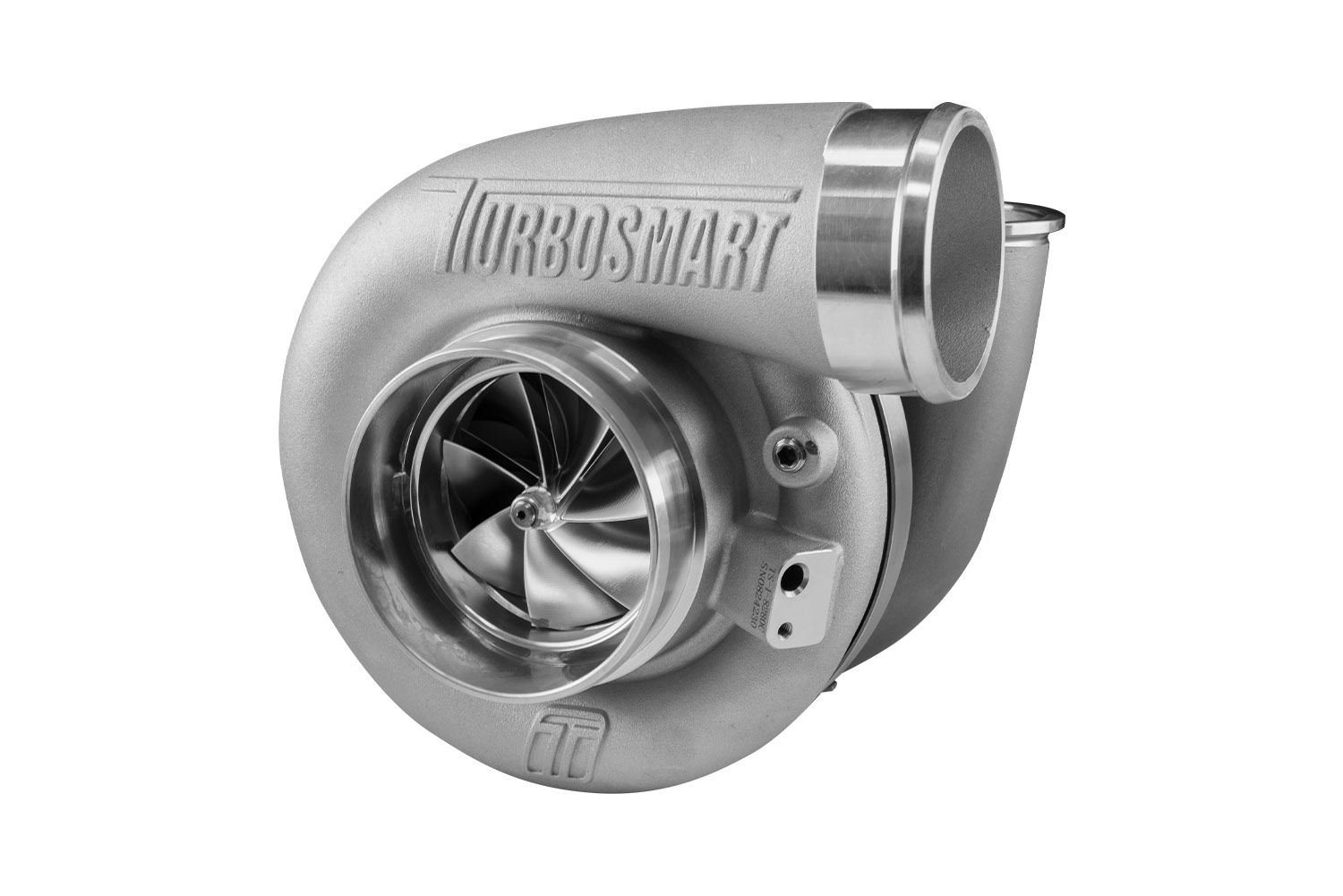

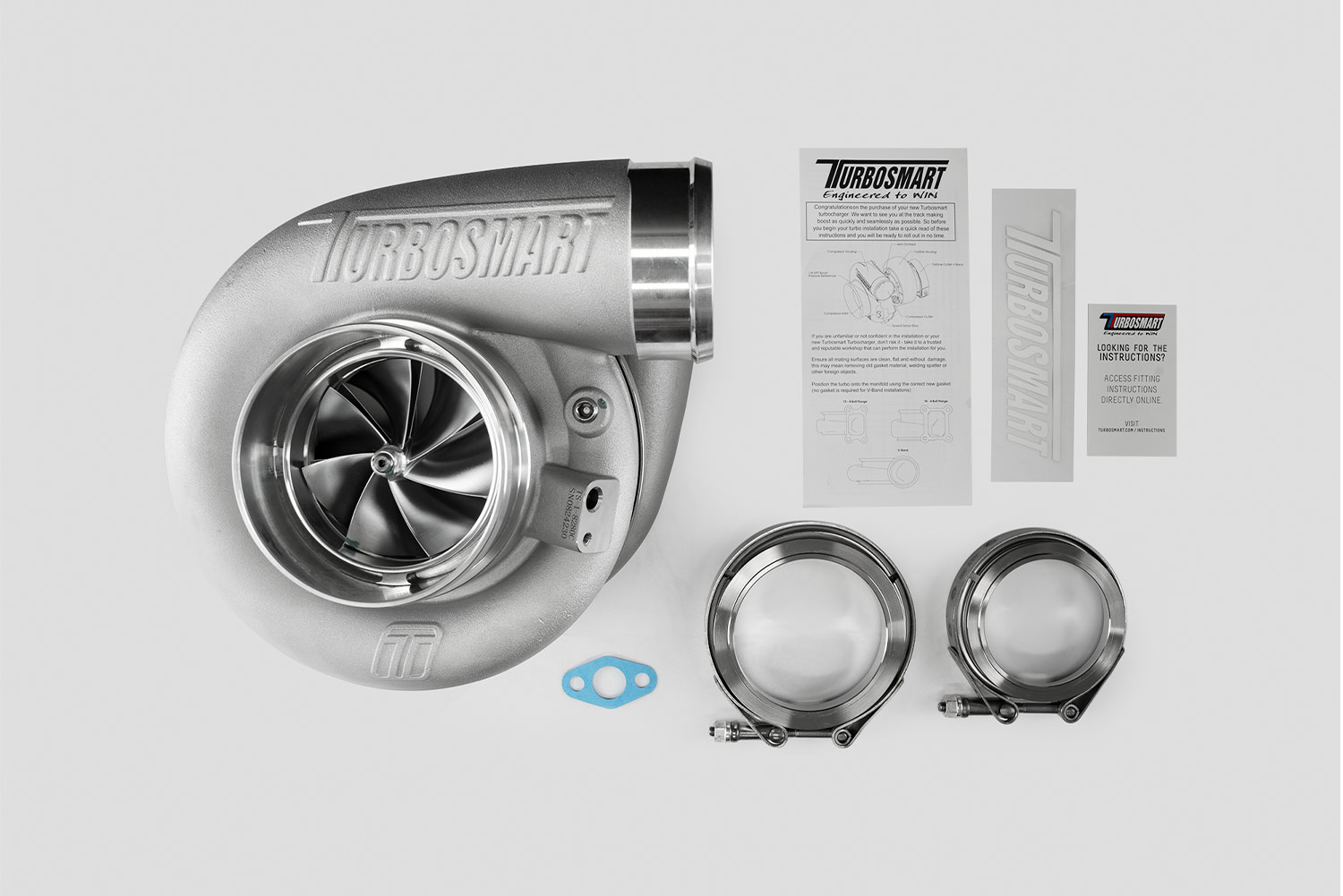

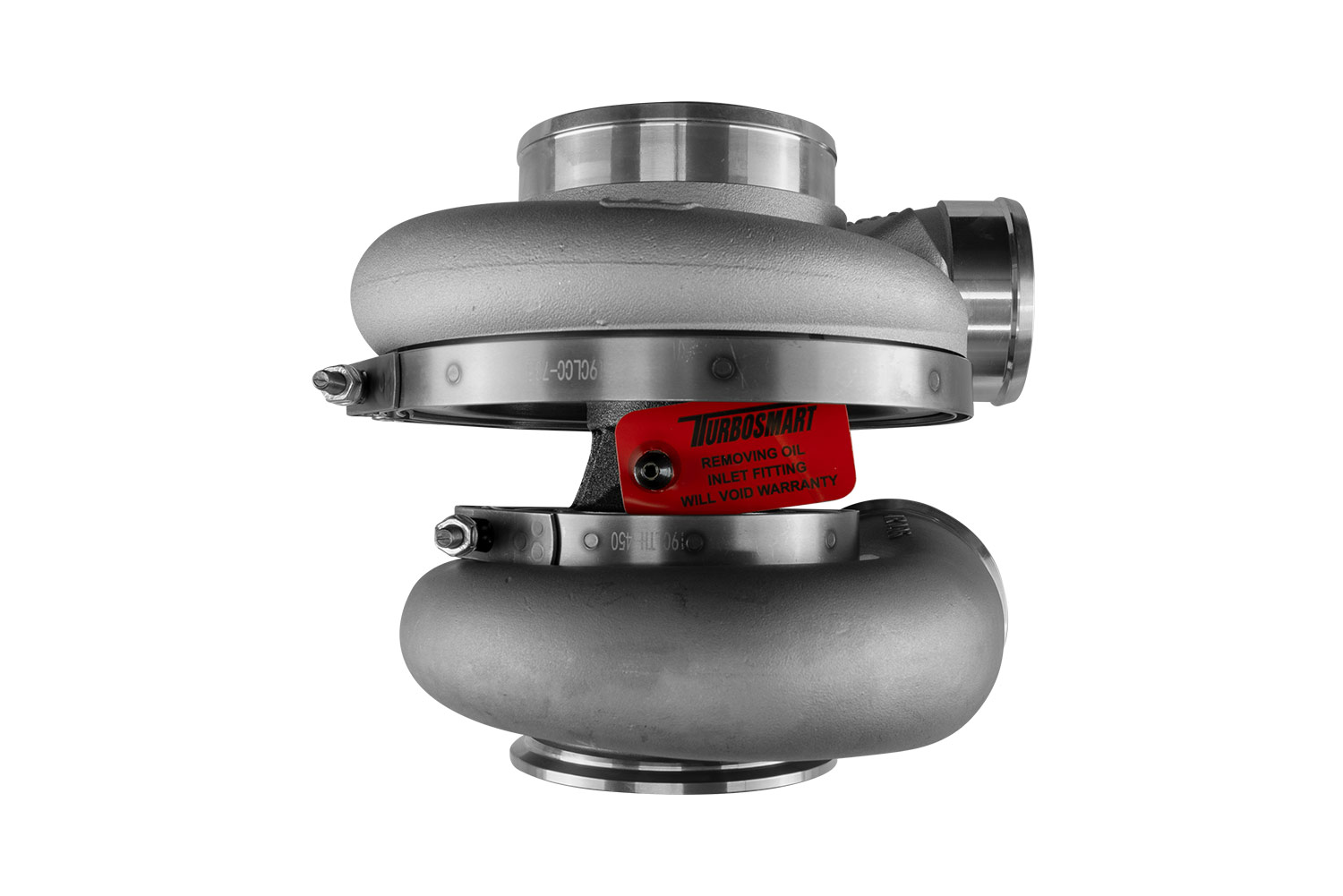

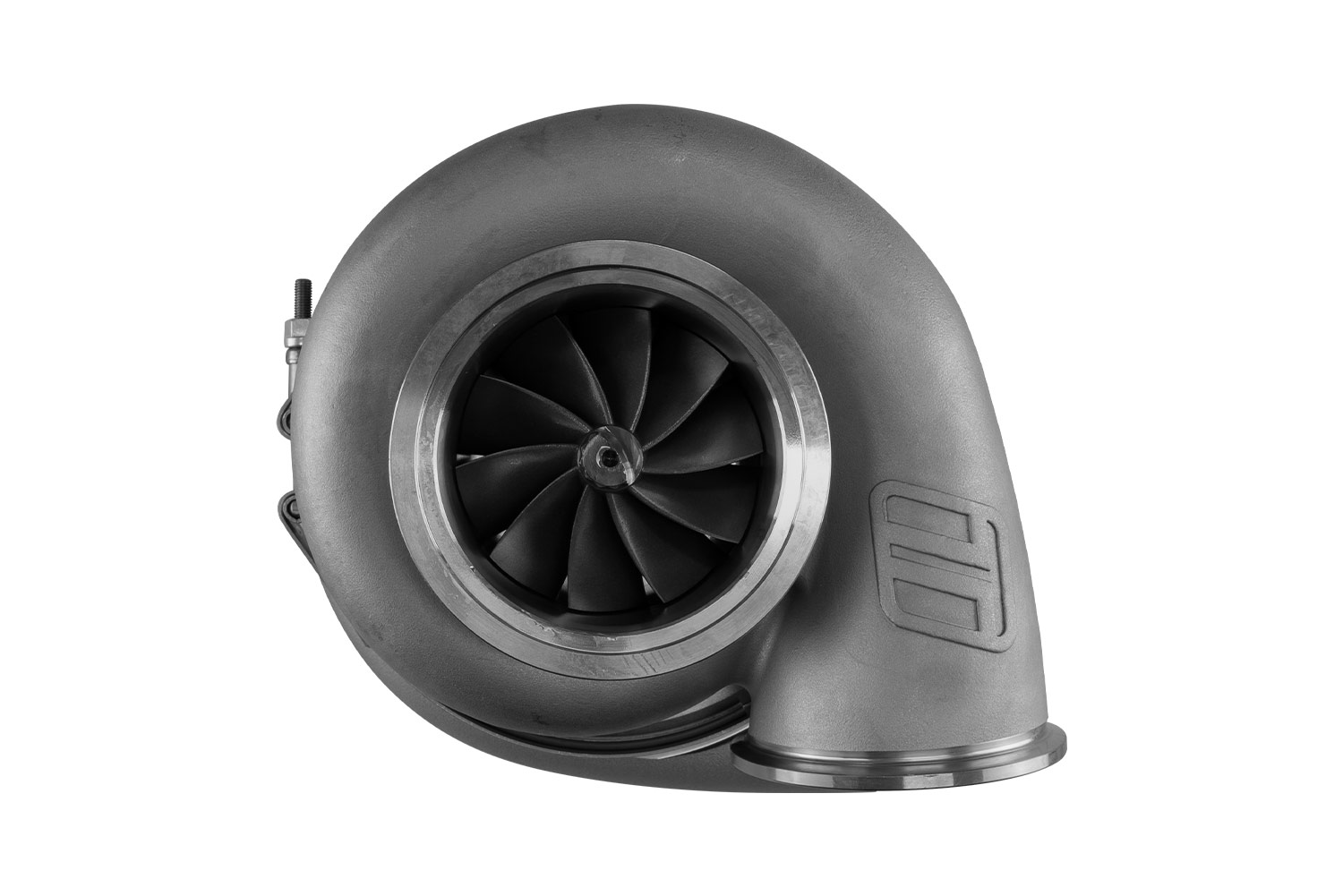

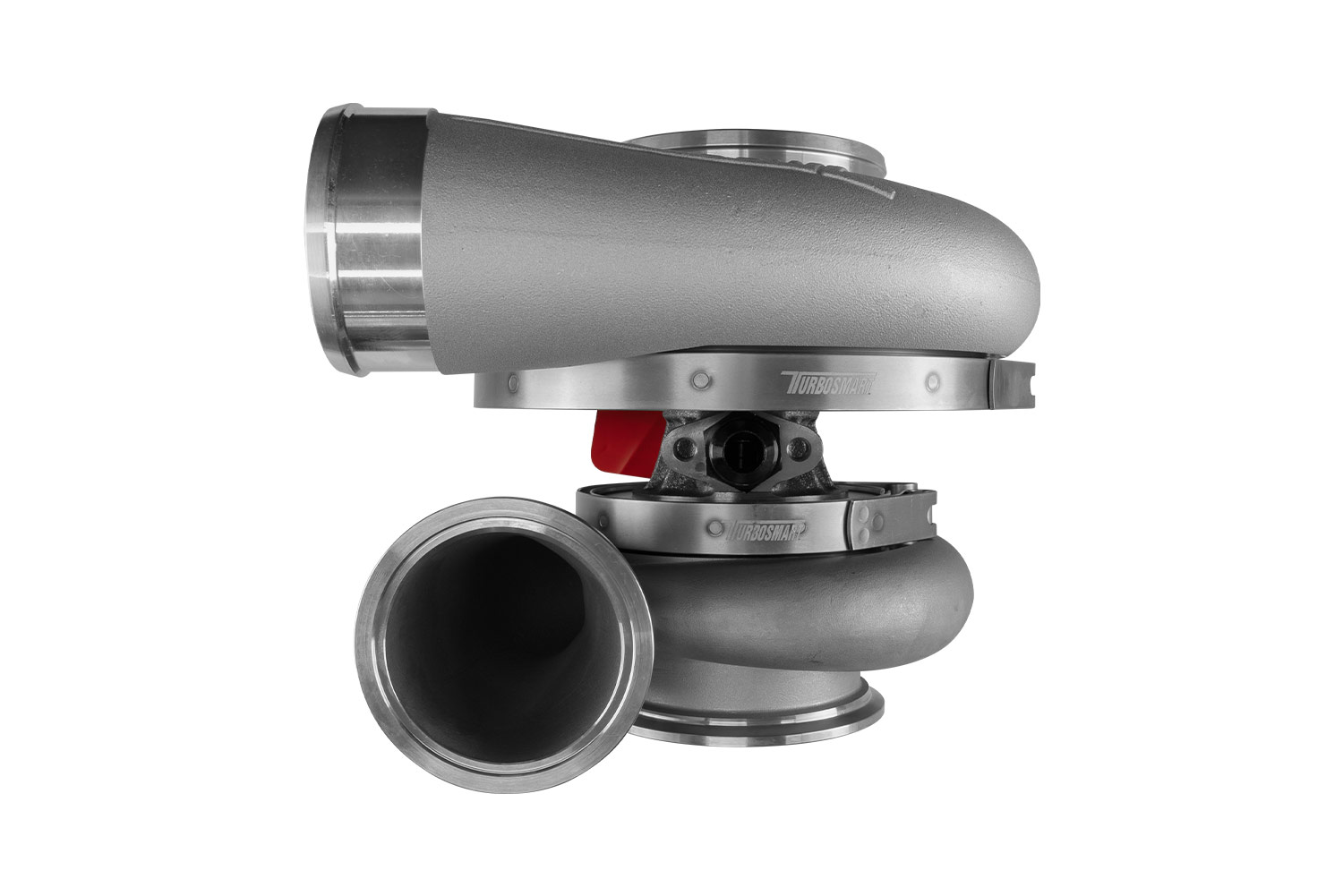

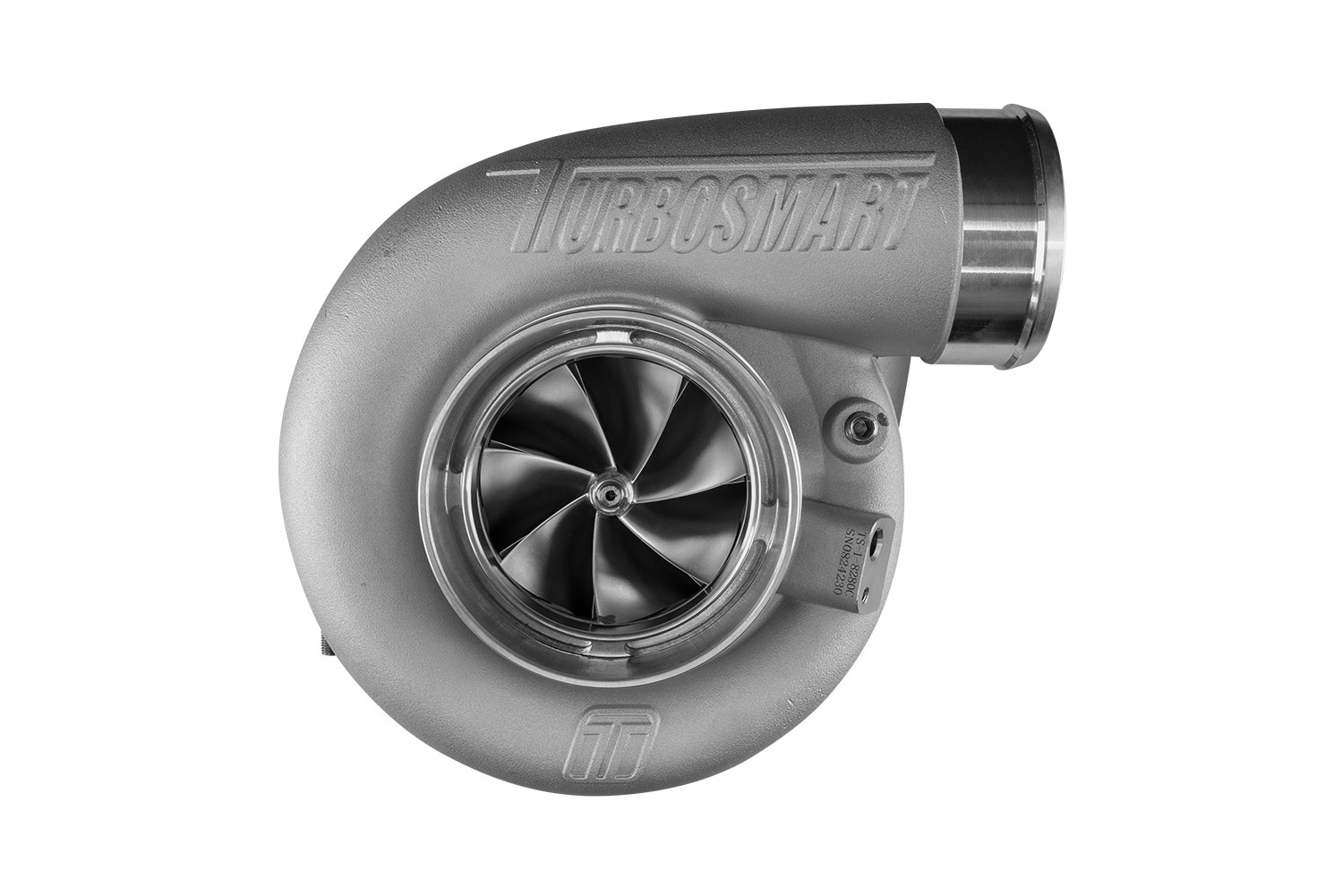

TS-1 Turbocharger 8280 V-Band 0.96AR Externally Wastegated

Turbosmart TS-1 8280 V-Band Turbocharger (0.96AR Externally Wastegated) Features

• Unparalleled transient response
• Aggressive aerodynamics with 7+7 splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight, Aluminium compressor covers
• CFD driven designed housings for optimal AR’s and flow
• T14 Inconel turbine wheel for extreme EGT’s
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate on center housing


Turbosmart TS-1 8280 V-Band Turbocharger (0.96AR Externally Wastegated) Specifications

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 82mm
Turbine Inlet: V-Band (3.00″)
Turbine Exducer: 80mm
Turbine AR: 0.96
Turbine Outlet: V-Band (3.50″)
Weight: 9.63kg / 21.23bs
Horsepower Rating: 1300-1450HP
