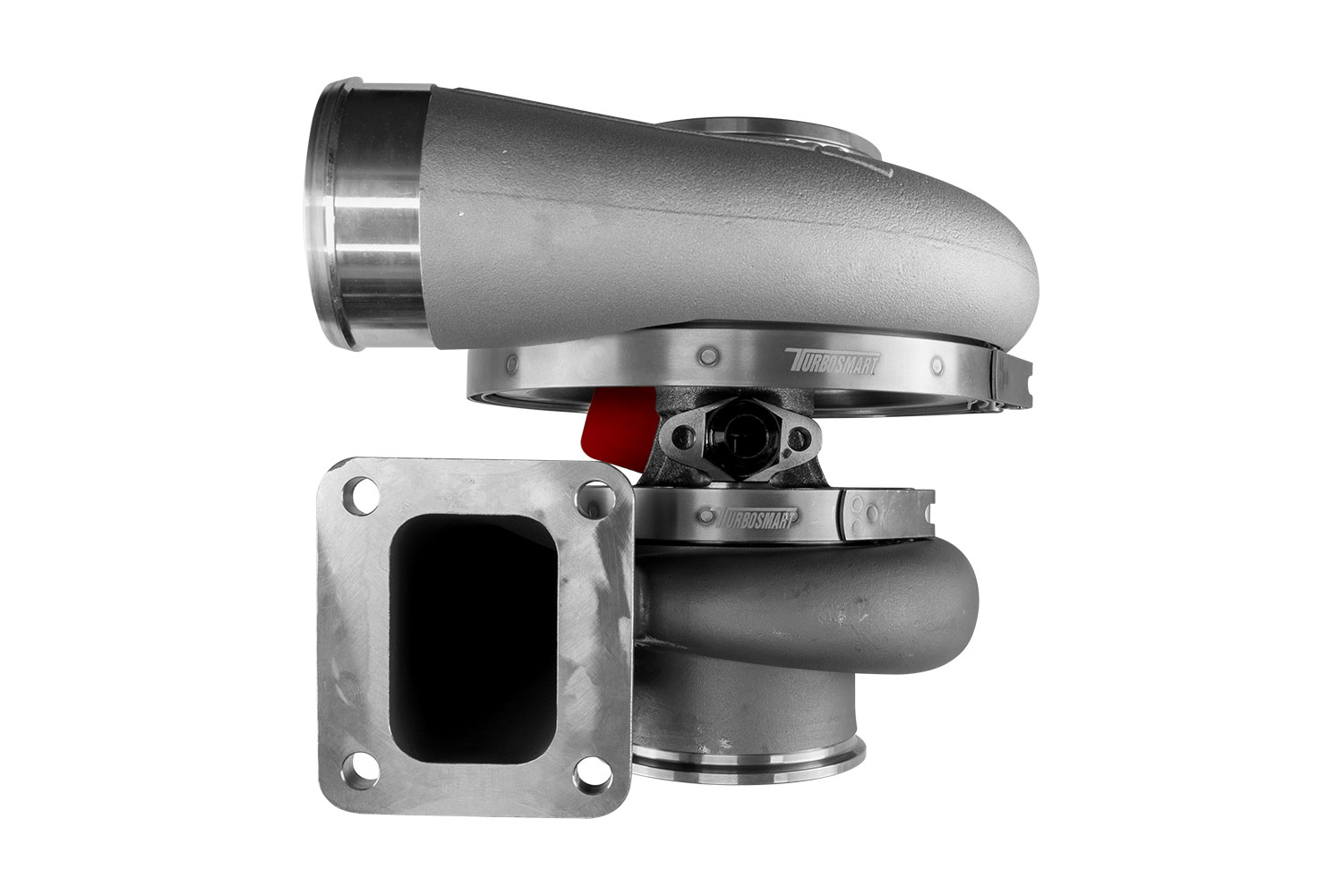

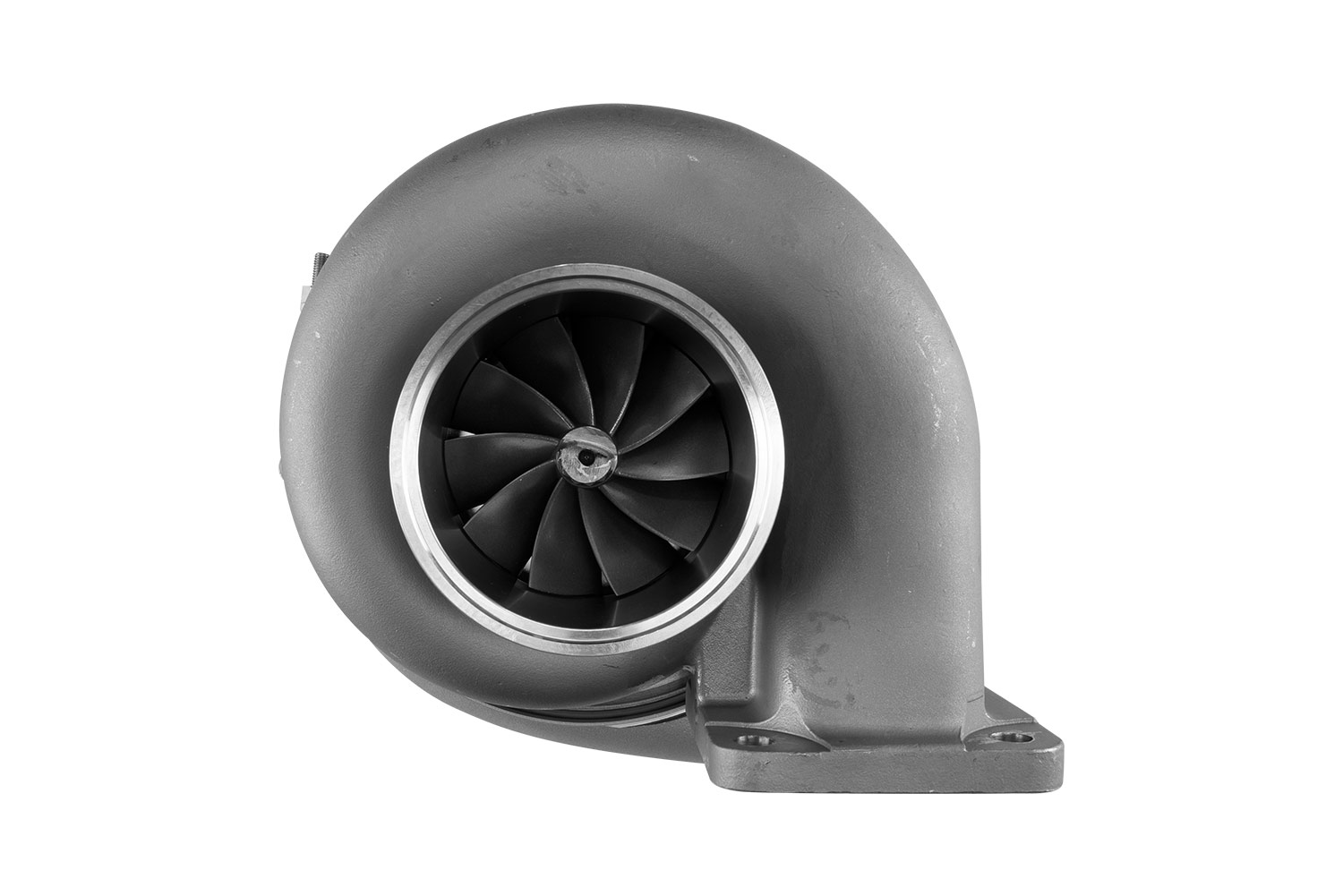

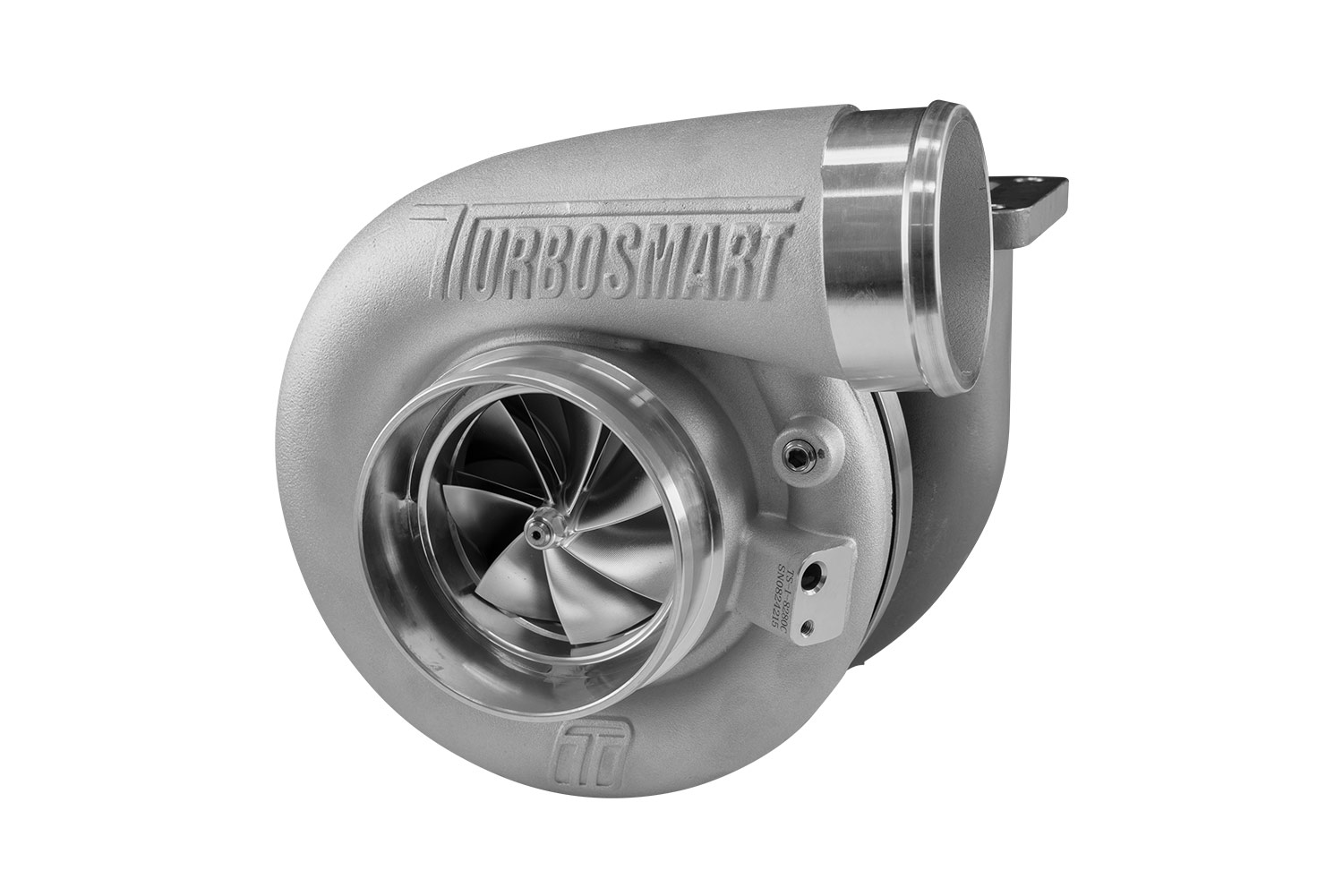

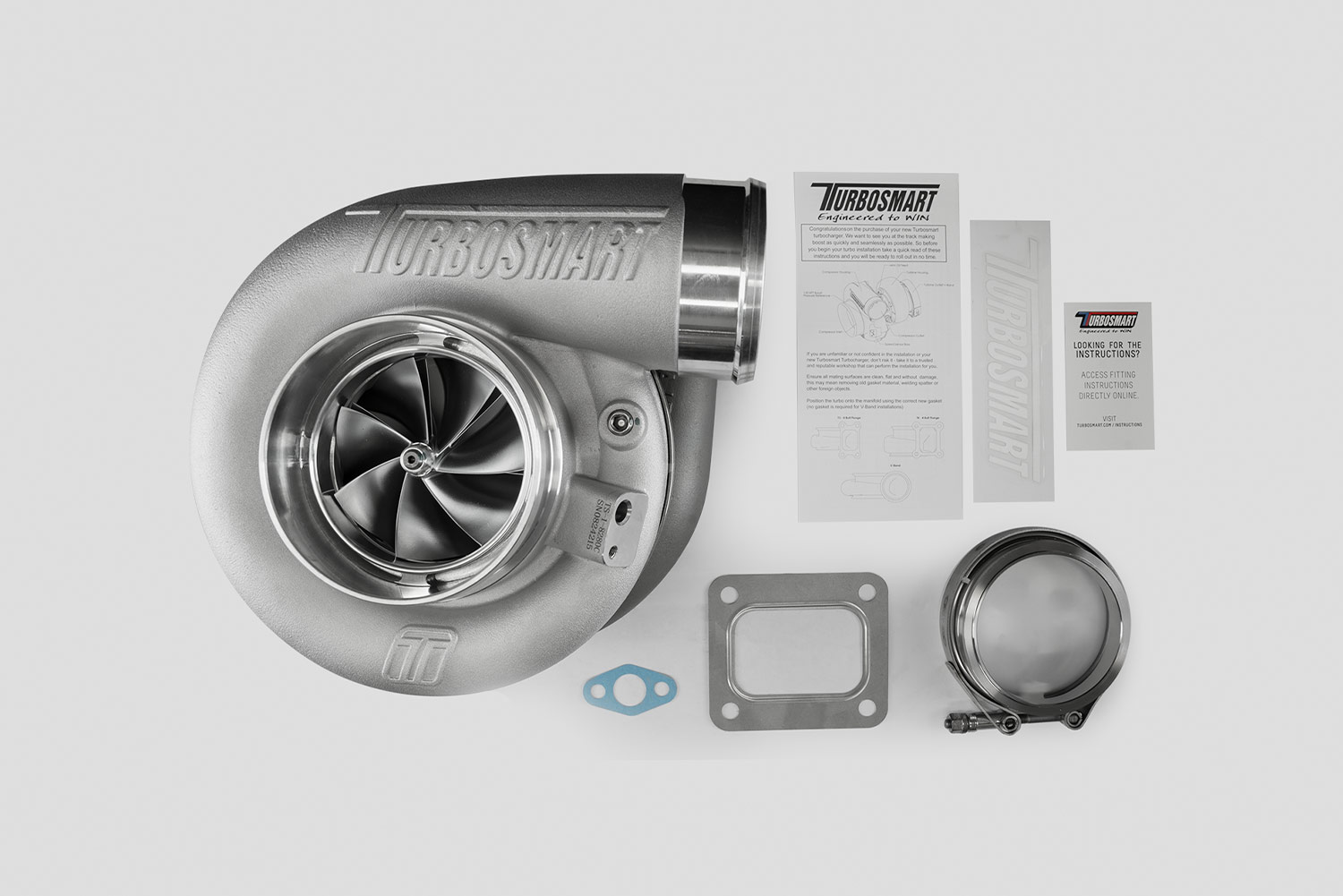

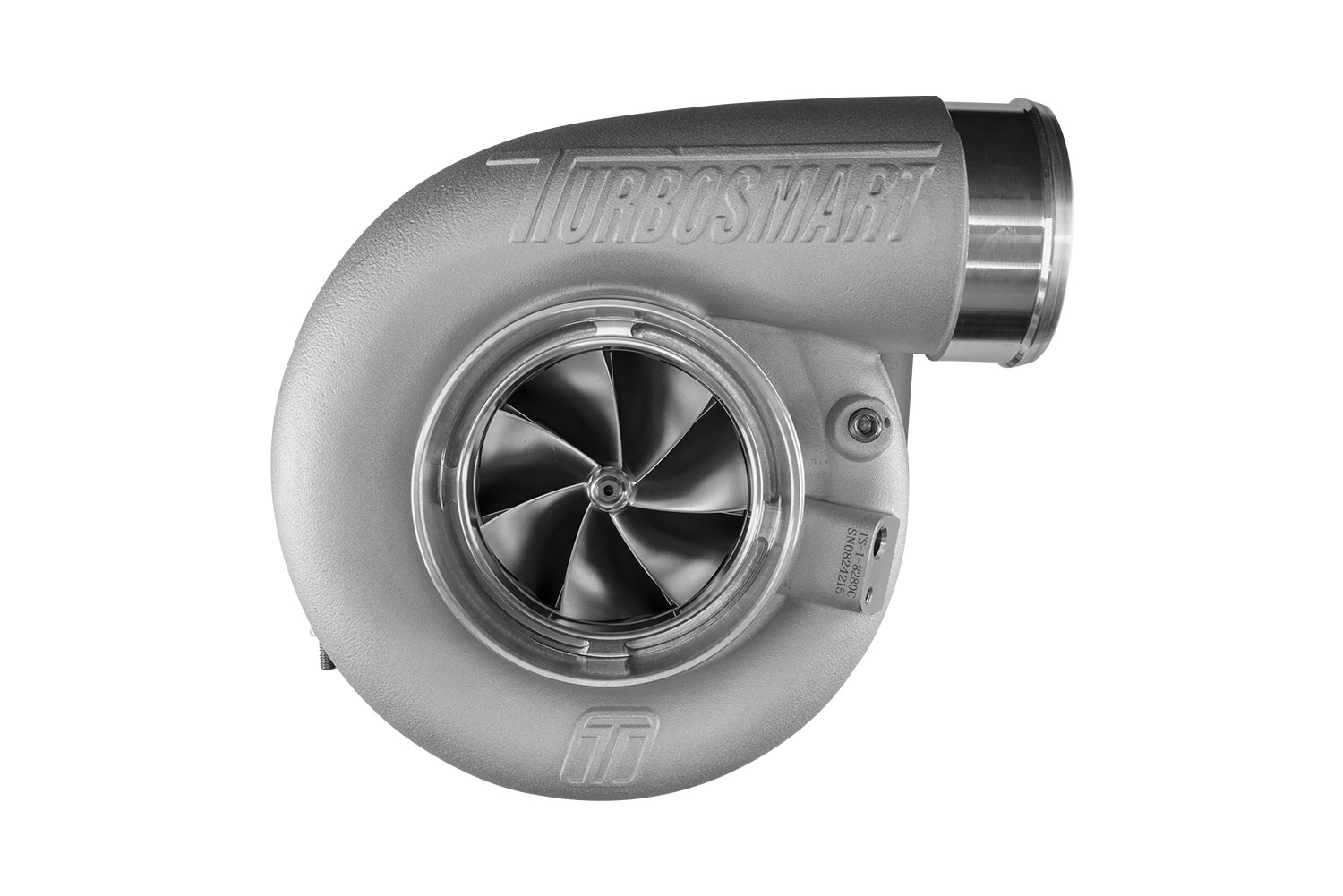

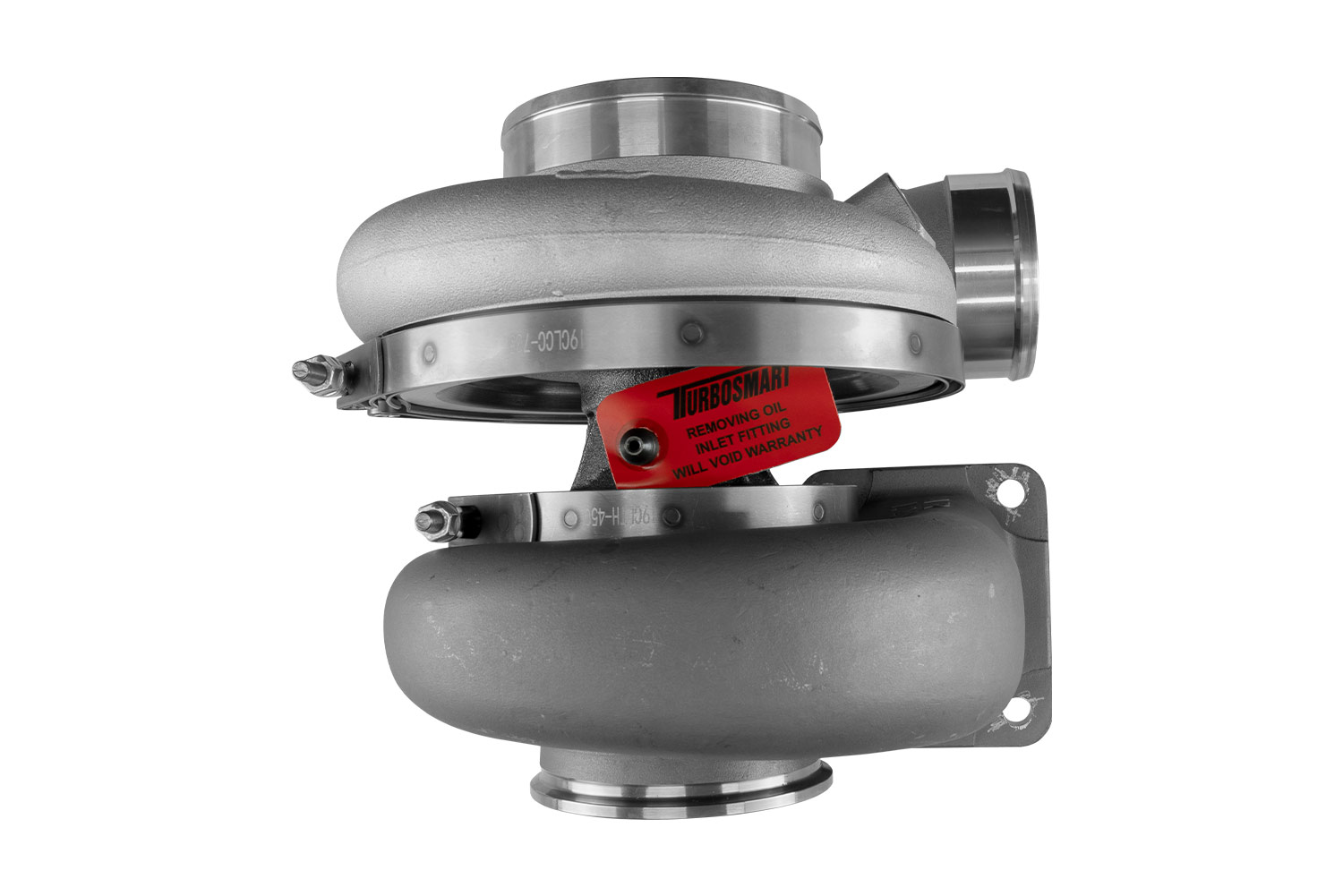

TS-1 Turbocharger 8280 T4 0.96AR Externally Wastegated

Features – Turbosmart TS-1 8280 T4 Turbocharger (0.96AR Externally Wastegated)

Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal AR’s and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

Specifications – Turbosmart TS-1 8280 T4 Turbocharger (0.96AR Externally Wastegated)

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 82mm
Turbine Inlet: T4
Turbine Exducer: 80mm
Turbine AR: 0.96
Turbine Outlet: V-Band (3.50″)
Weight: 9.63kg / 21.23bs
Horsepower Rating: 1300-1450HP
