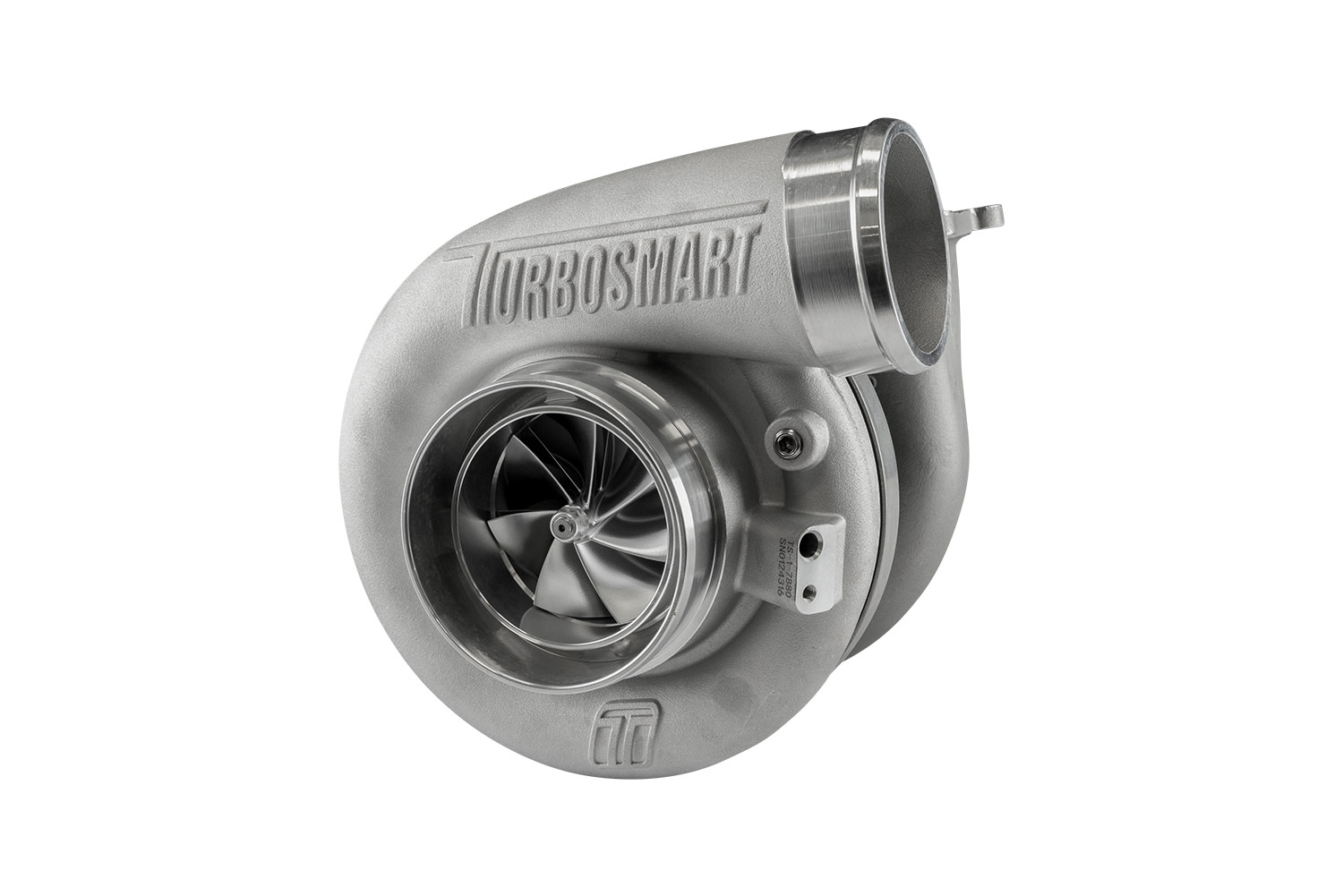

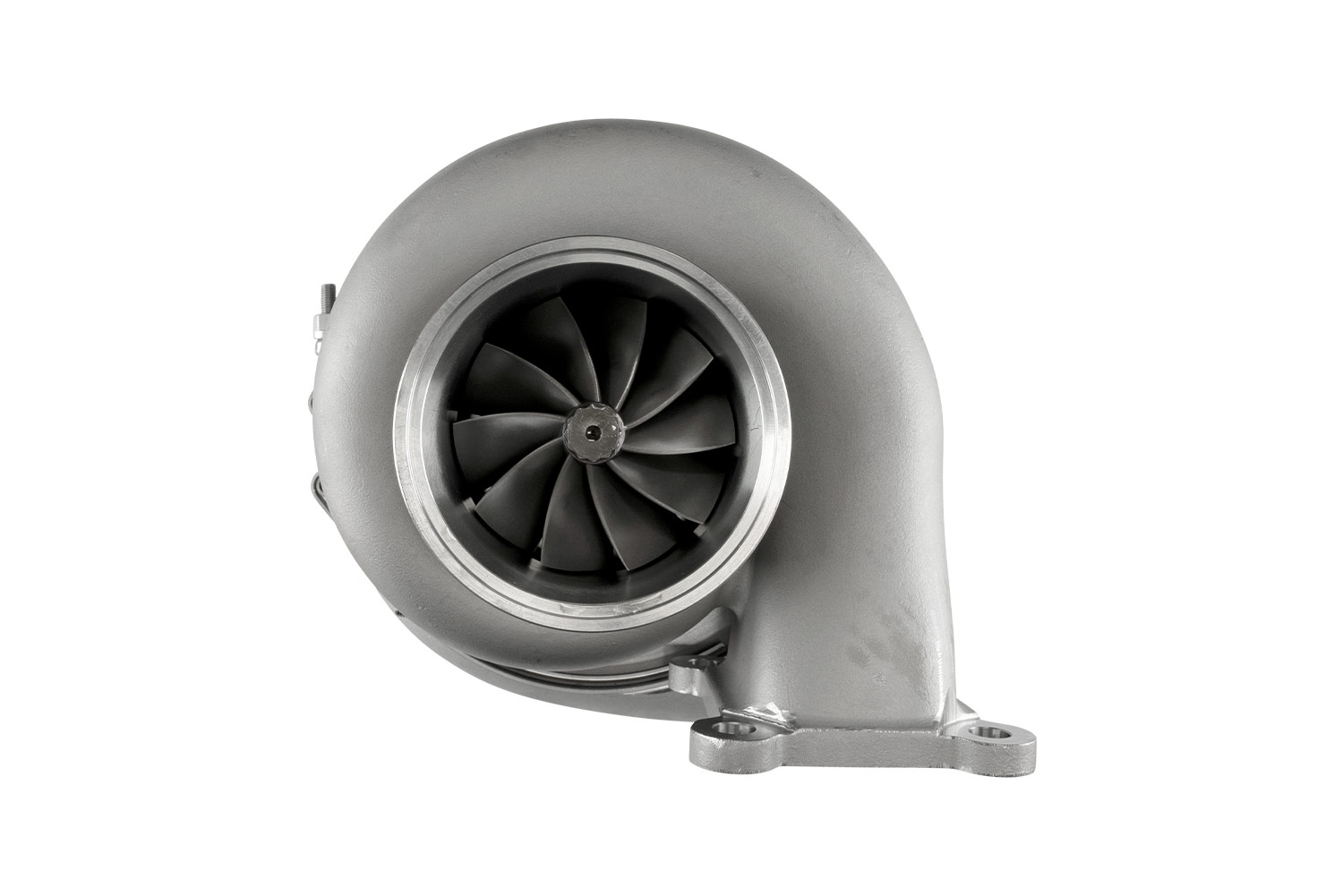

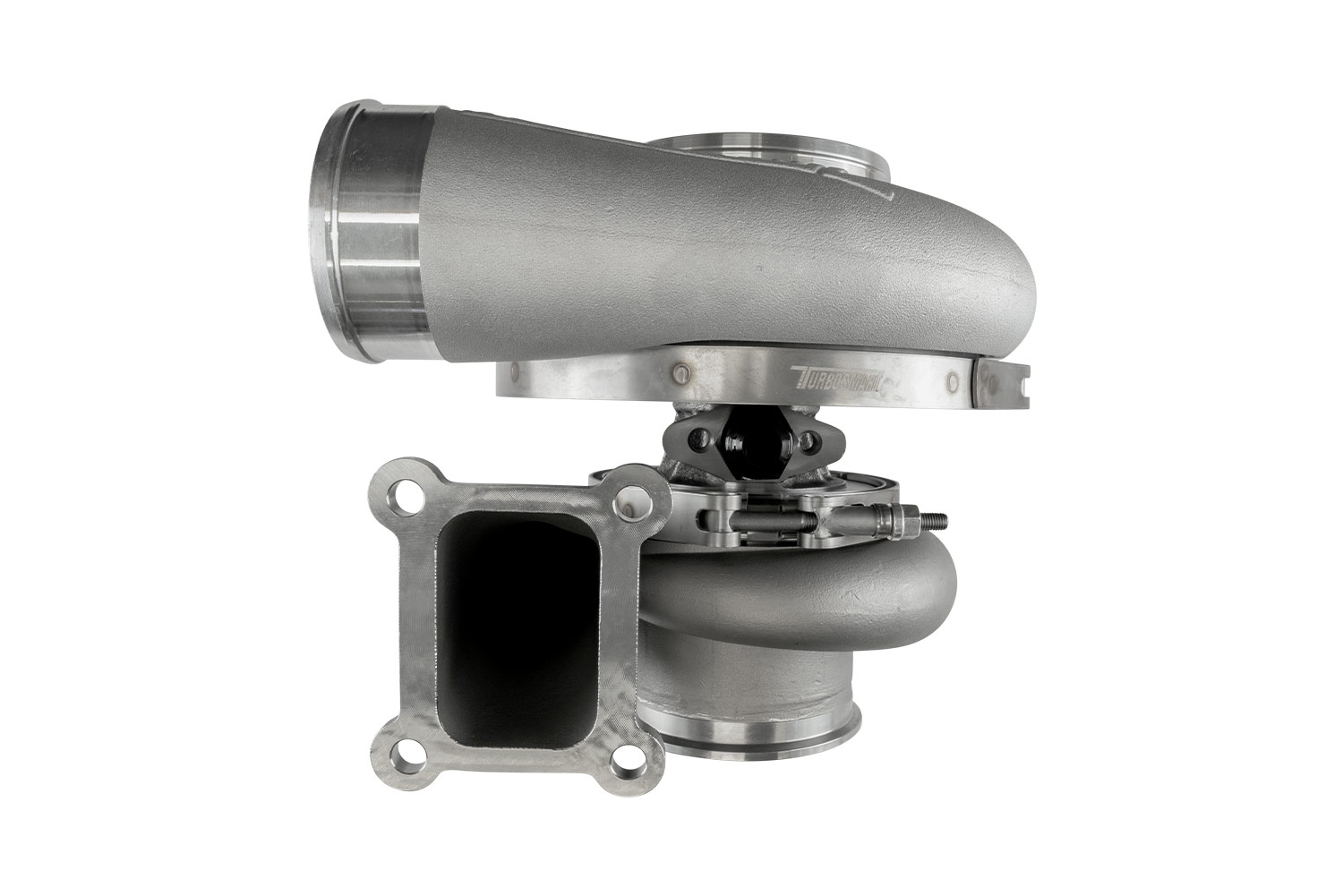

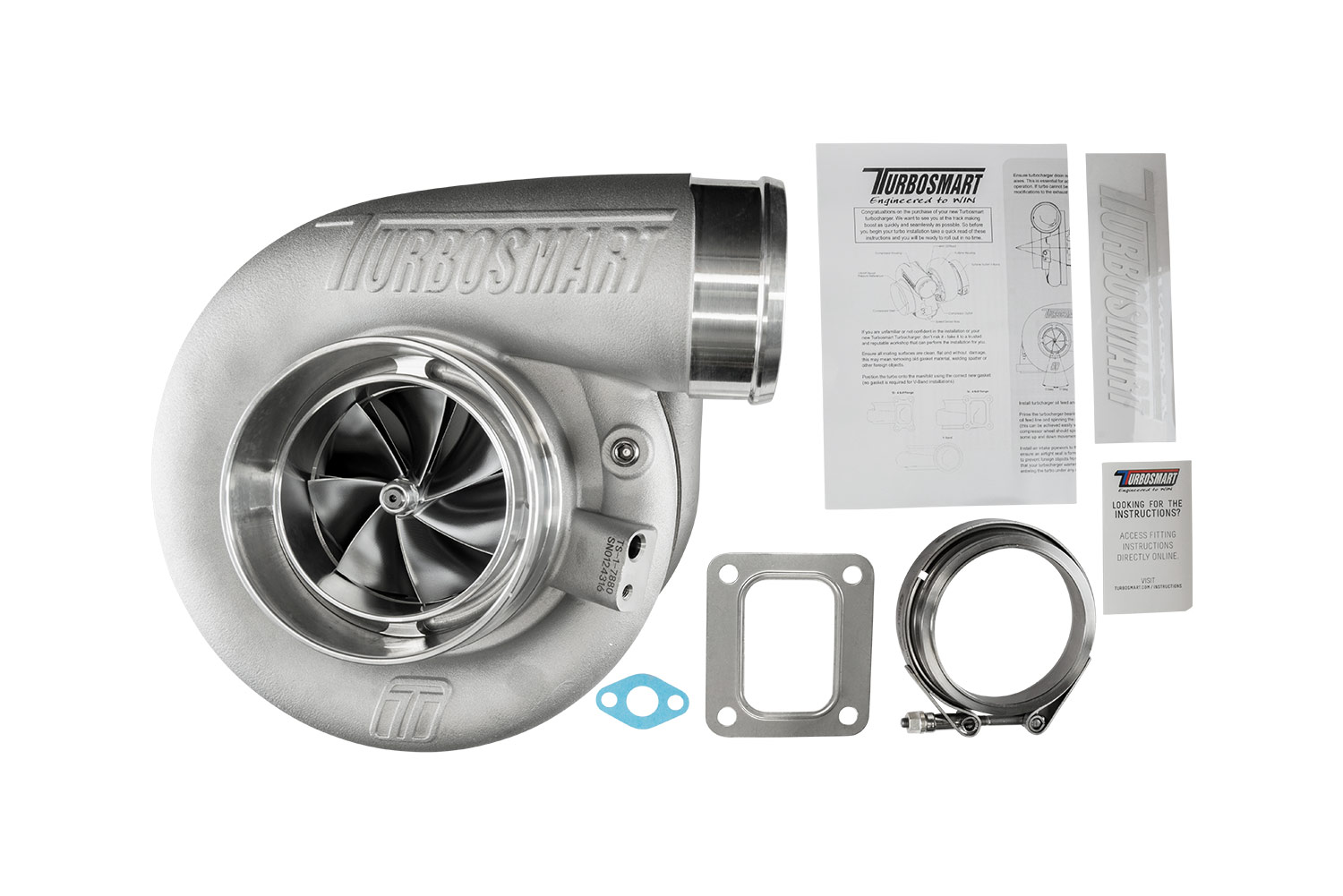

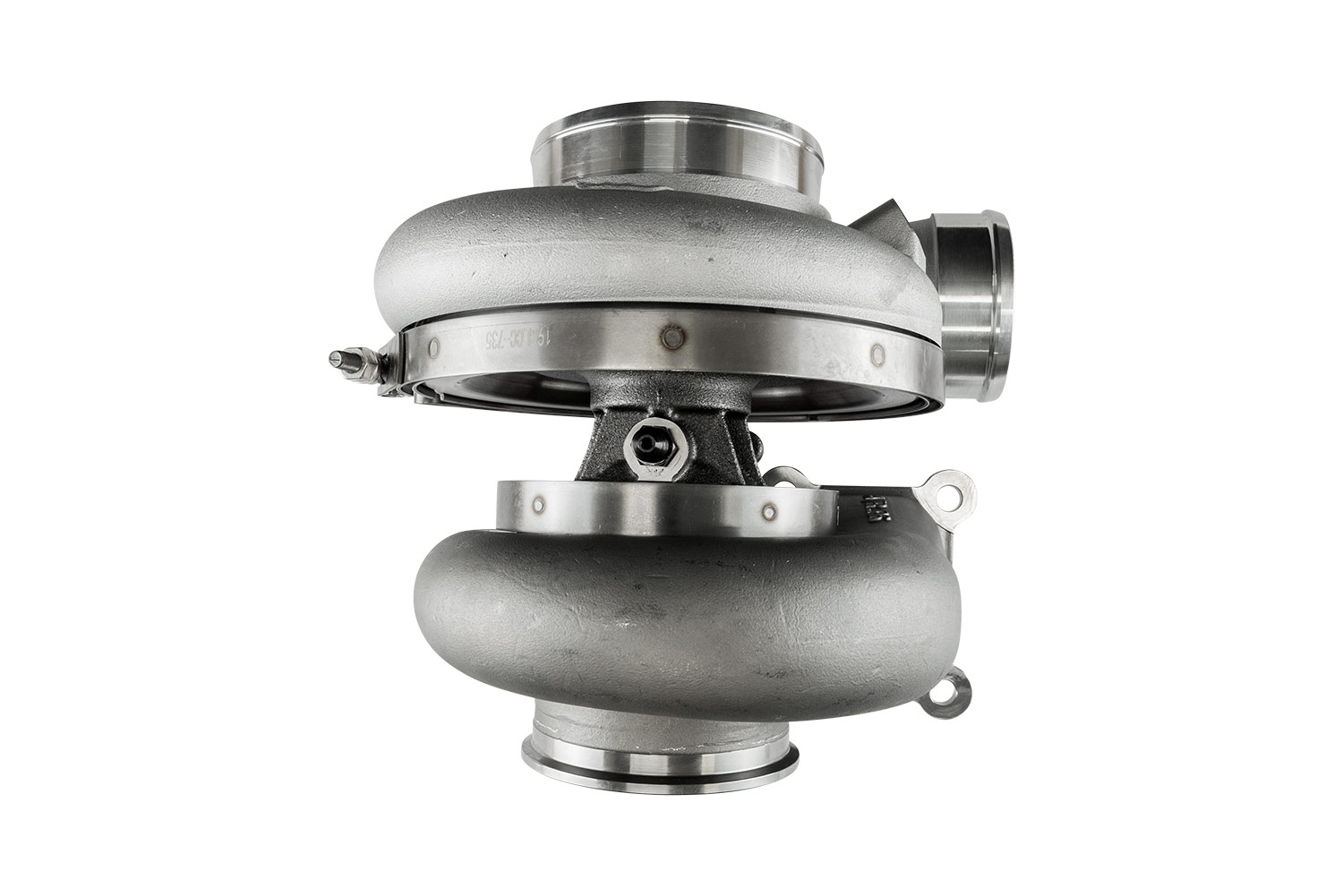

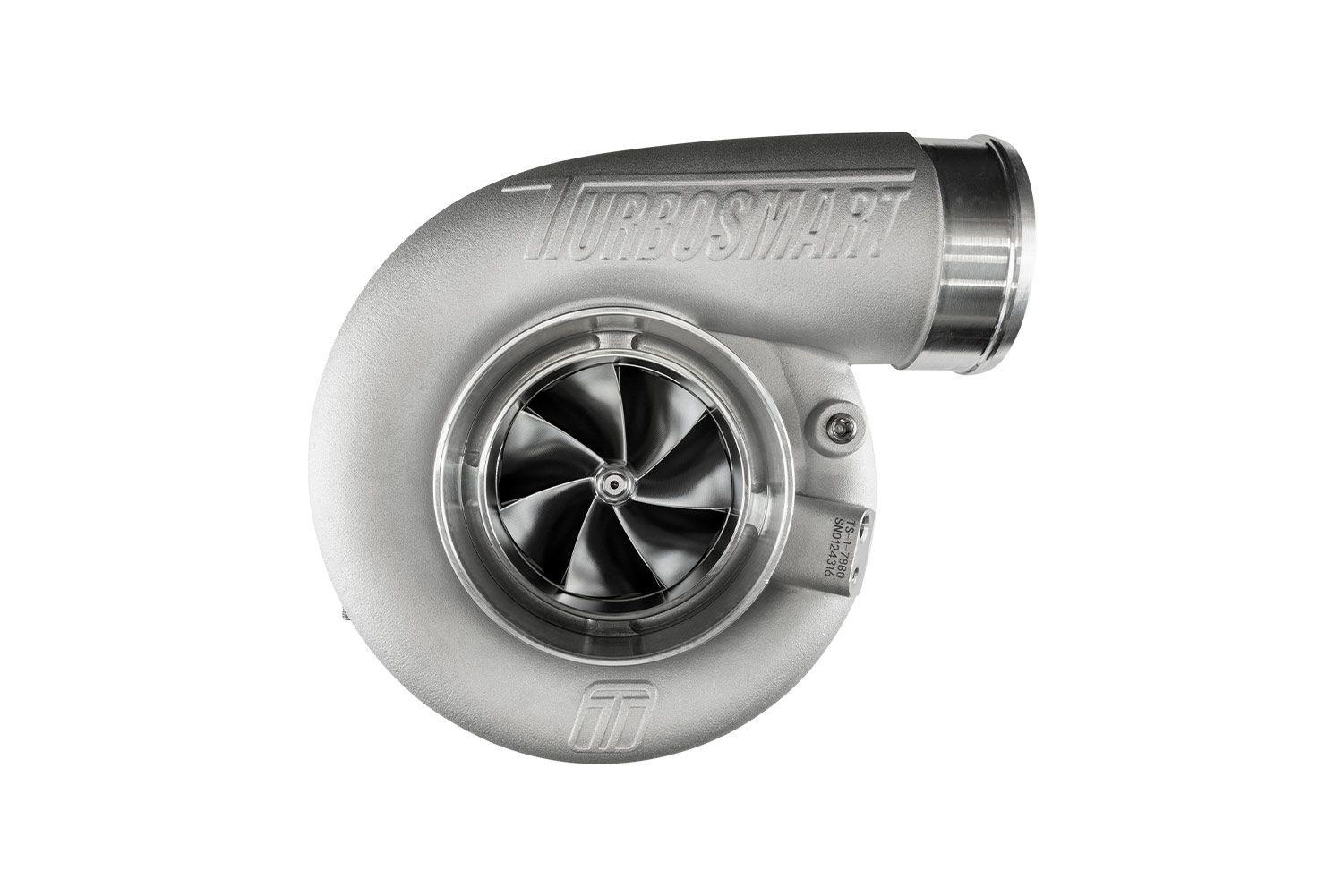

TS-1 Turbocharger 7880 T4 1.24AR Externally Wastegated

Ts 1 7880c T4124e 1
Ts 1 7880c T4124e 2
Ts 1 7880c T4124e 3
Ts 1 7880c T4124e 4
Ts 1 7880c T4124e 5
Ts 1 7880c T4124e 6

AUD $5,074.95

Turbosmart TS-1 7880 T4 Turbocharger (1.24AR Externally Wastegated) Specifications

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 78mm
Turbine Inlet: T4
Turbine Exducer: 80mm
Turbine AR: 1.24
Turbine Outlet: V-Band (3.50″)
Weight: 9.63kg / 21.23bs
Horsepower Rating: 1275-1425HP

SKU: TS-1-7880C-T4124E Category:

Description

Turbosmart TS-1 7880 T4 Turbocharger (1.24AR Externally Wastegated) Features

Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal A/Rs and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

Turbosmart TS-1 7880 T4 Turbocharger (1.24AR Externally Wastegated) Specifications

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 78mm
Turbine Inlet: T4
Turbine Exducer: 80mm
Turbine AR: 1.24
Turbine Outlet: V-Band (3.50″)
Weight: 9.63kg / 21.23bs
Horsepower Rating: 1275-1425HP
