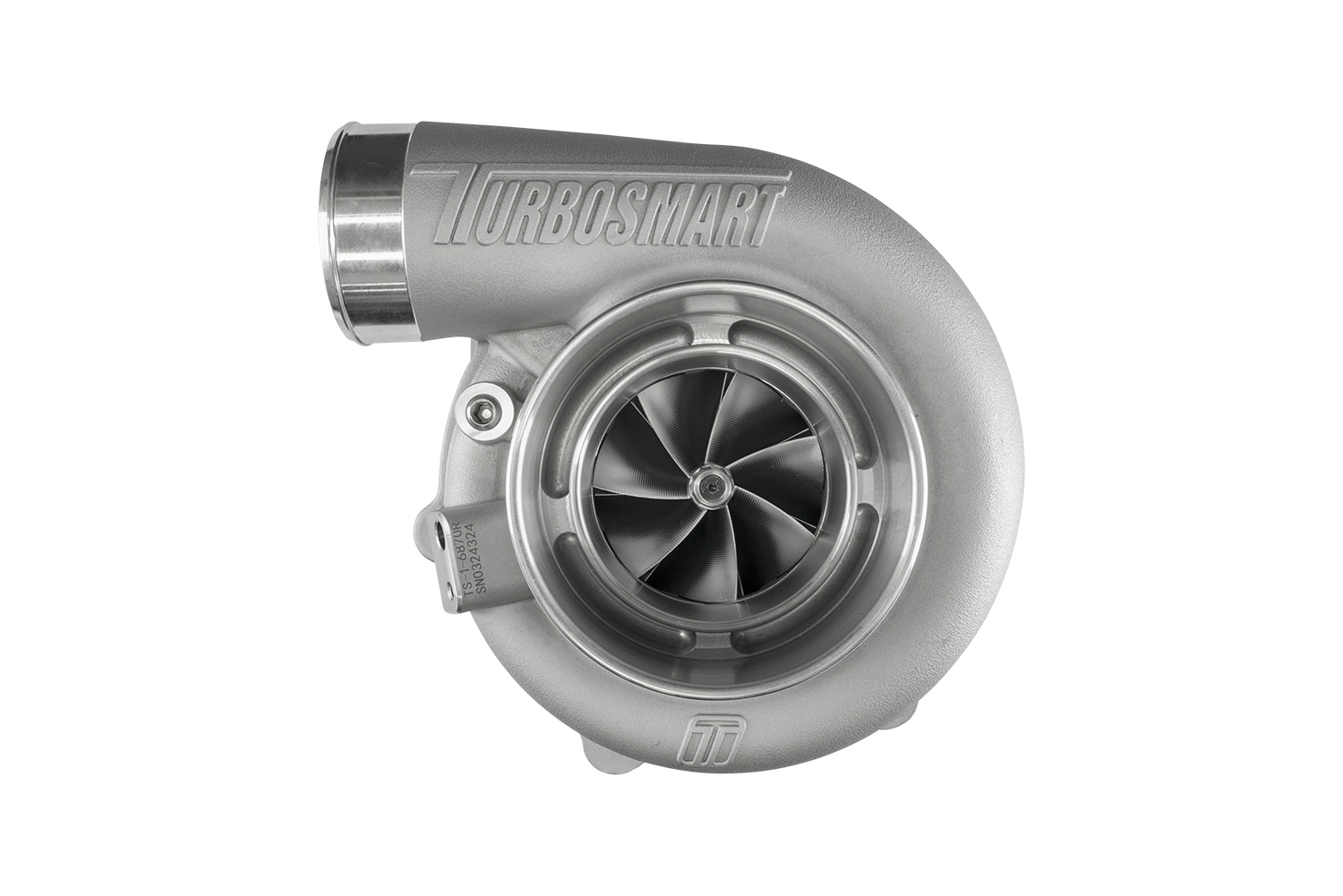

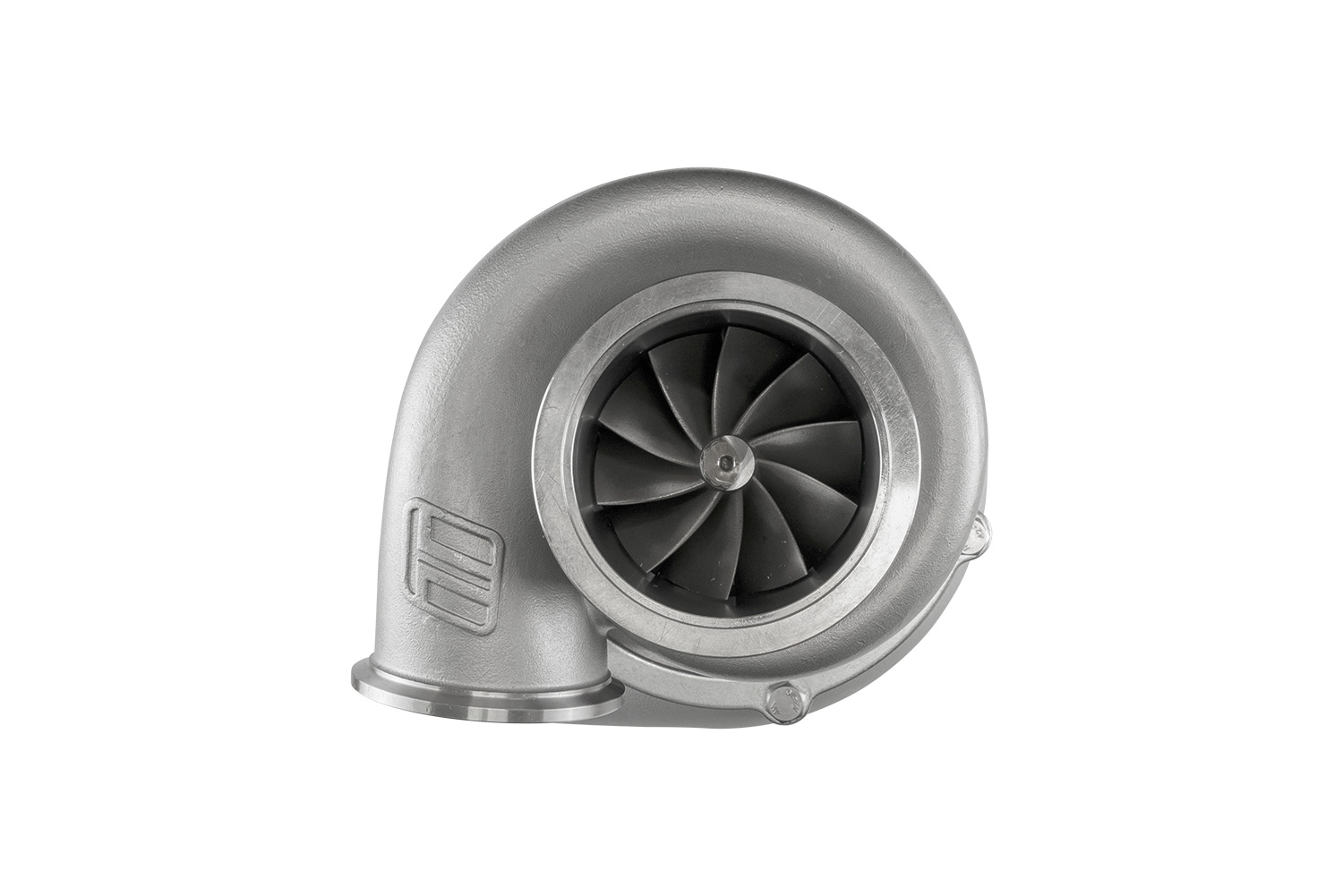

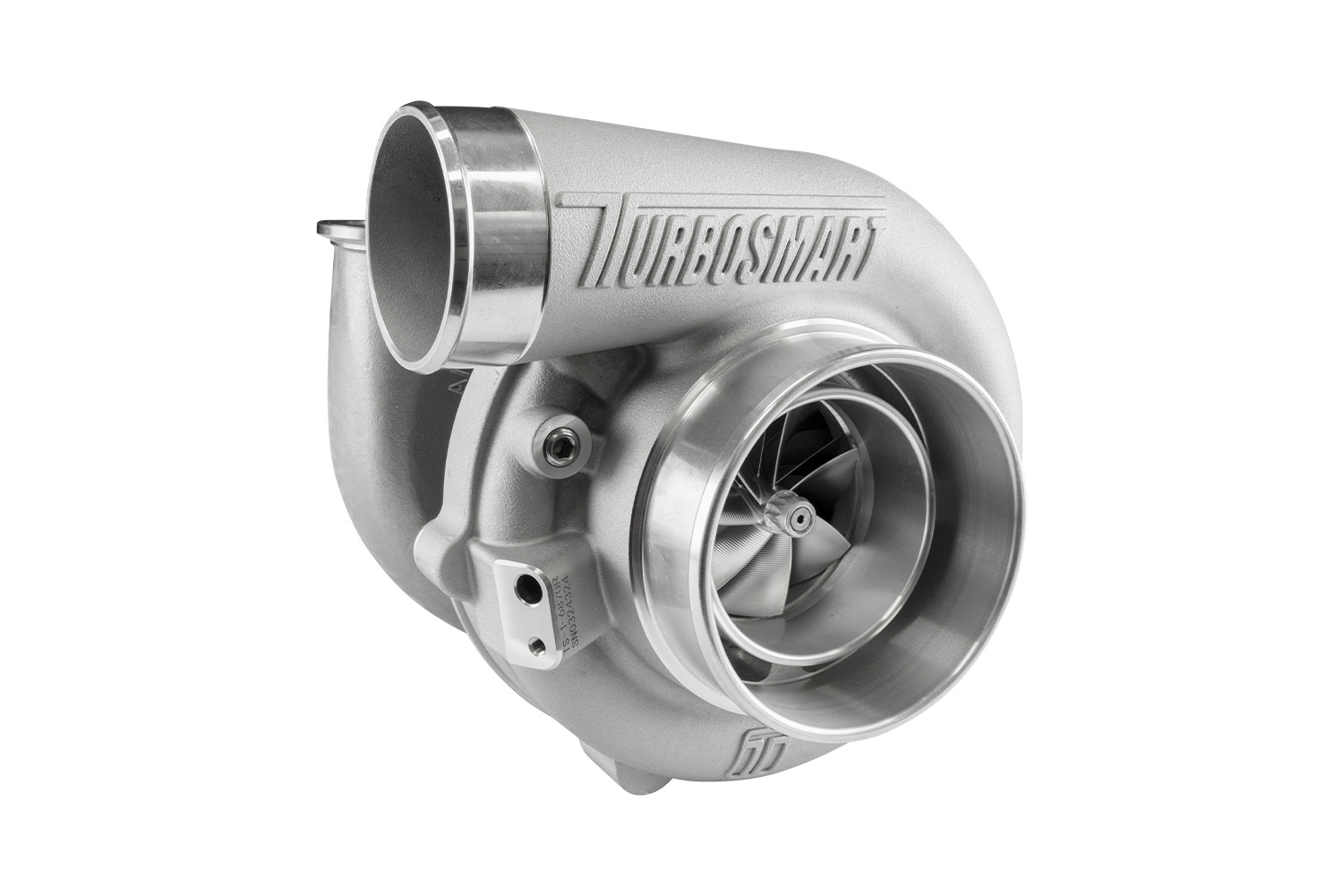

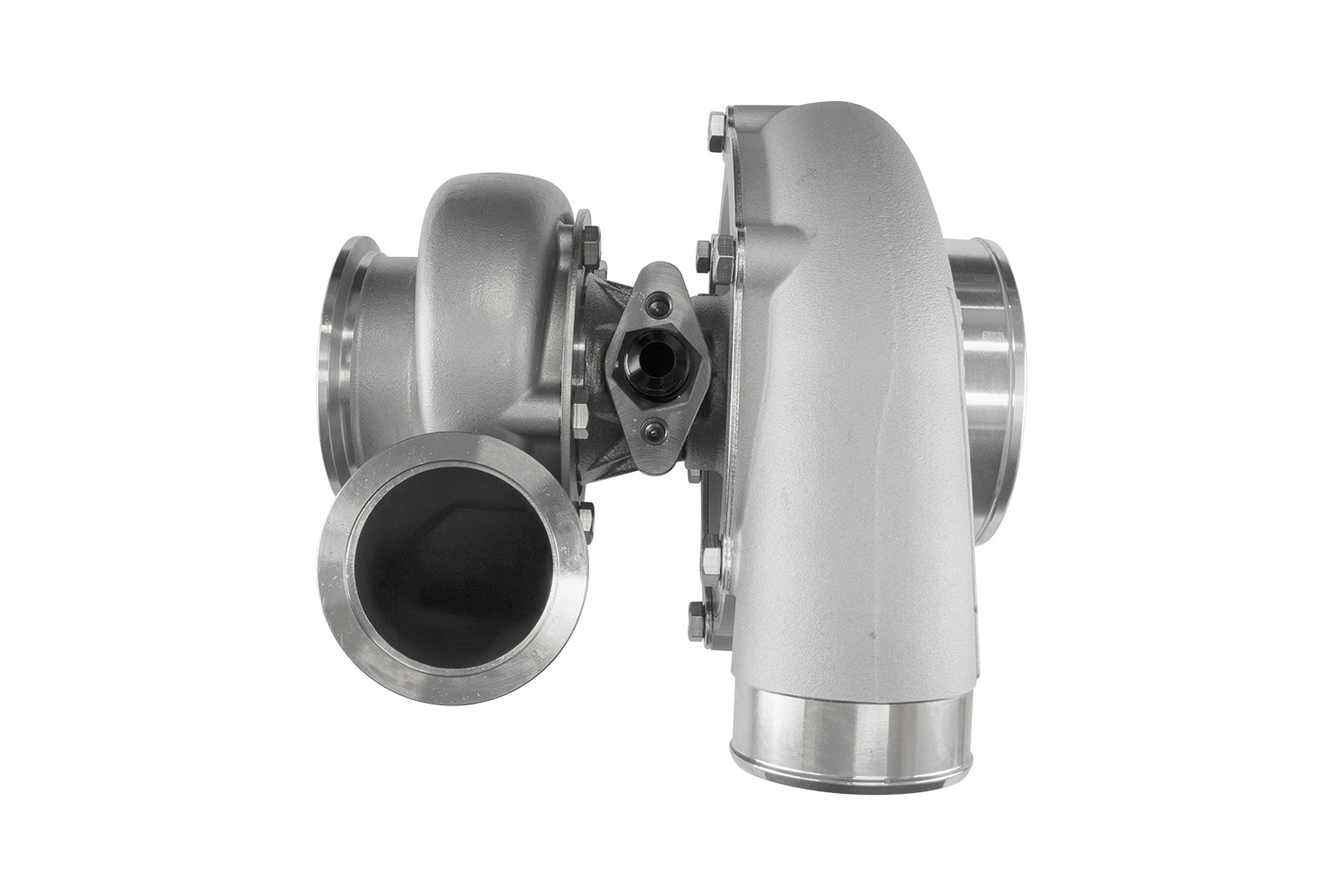

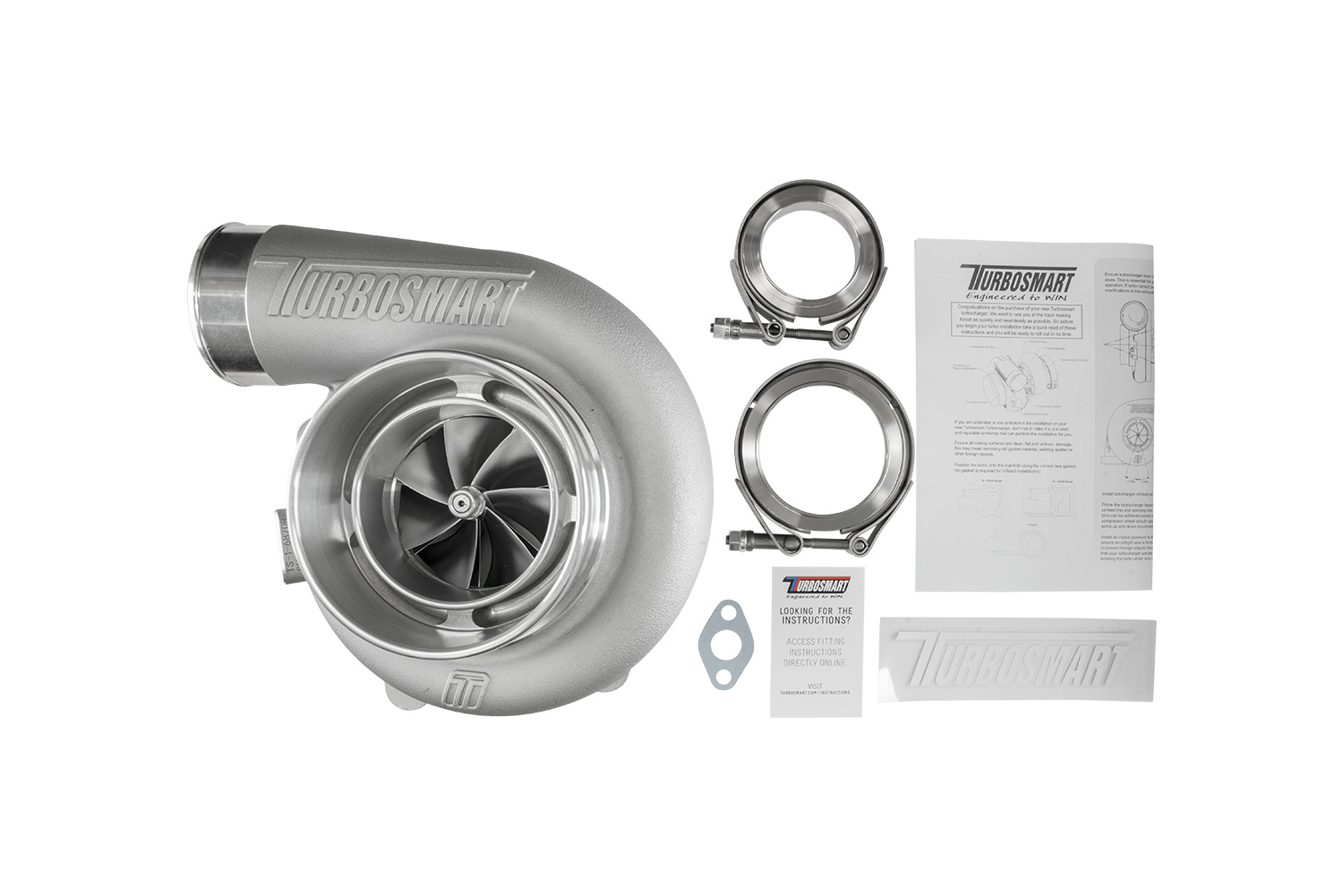

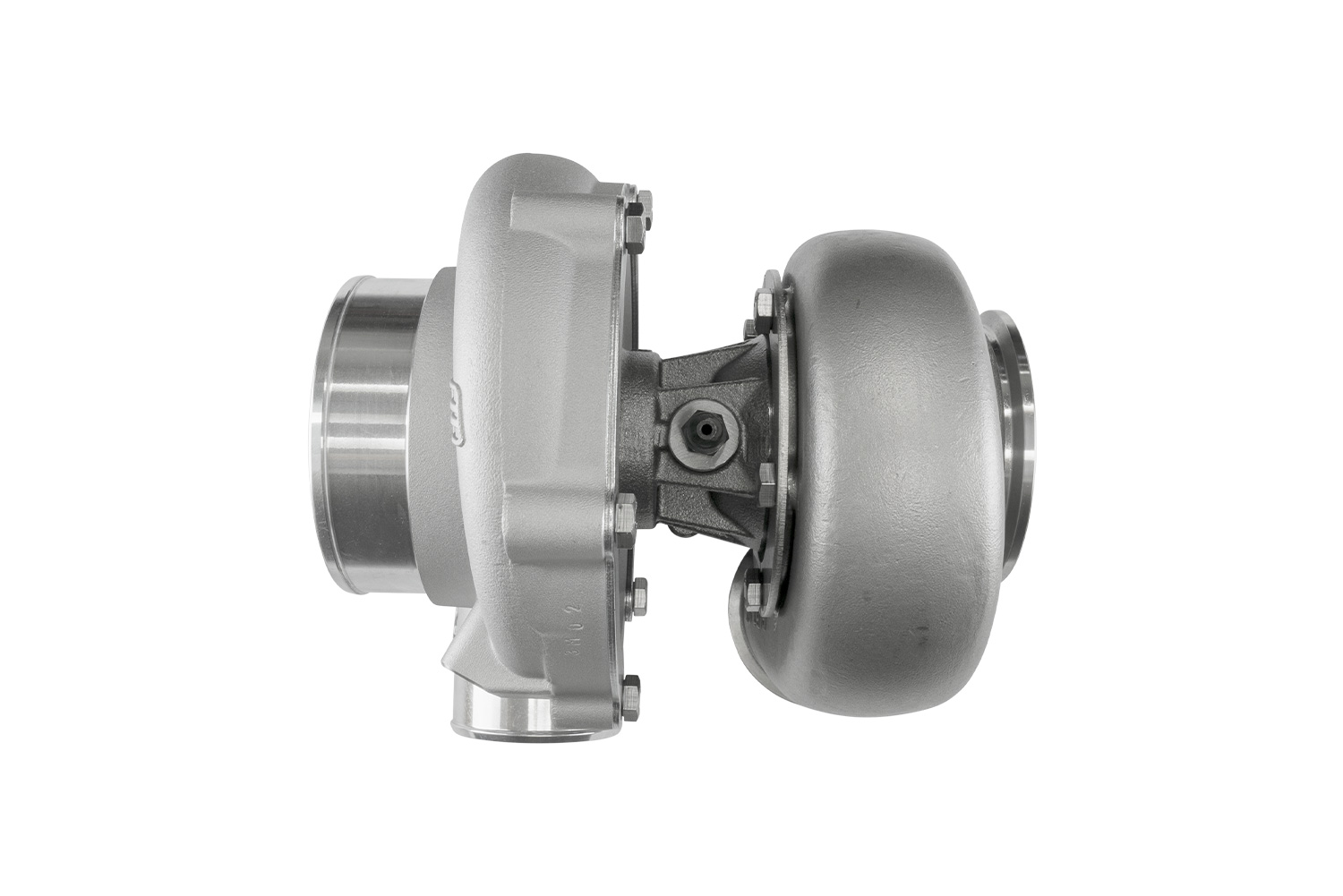

TS-1 Turbocharger 6870 (Kompact) V-Band Reverse Rotation 1.07AR Externally Wastegated

TS-1 Turbocharger 6870 (Kompact) V-Band Reverse Rotation 1.07AR Externally Wastegated Features

Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal A/Rs and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

TS-1 Turbocharger 6870 (Kompact) V-Band Reverse Rotation 1.07AR Externally Wastegated Specifications

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 68mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 70mm
Turbine AR: 1.07
Turbine Outlet: V-Band (3.00″)
Weight: 6.43kg / 14.17bs
Horsepower Rating: 850-990HP
