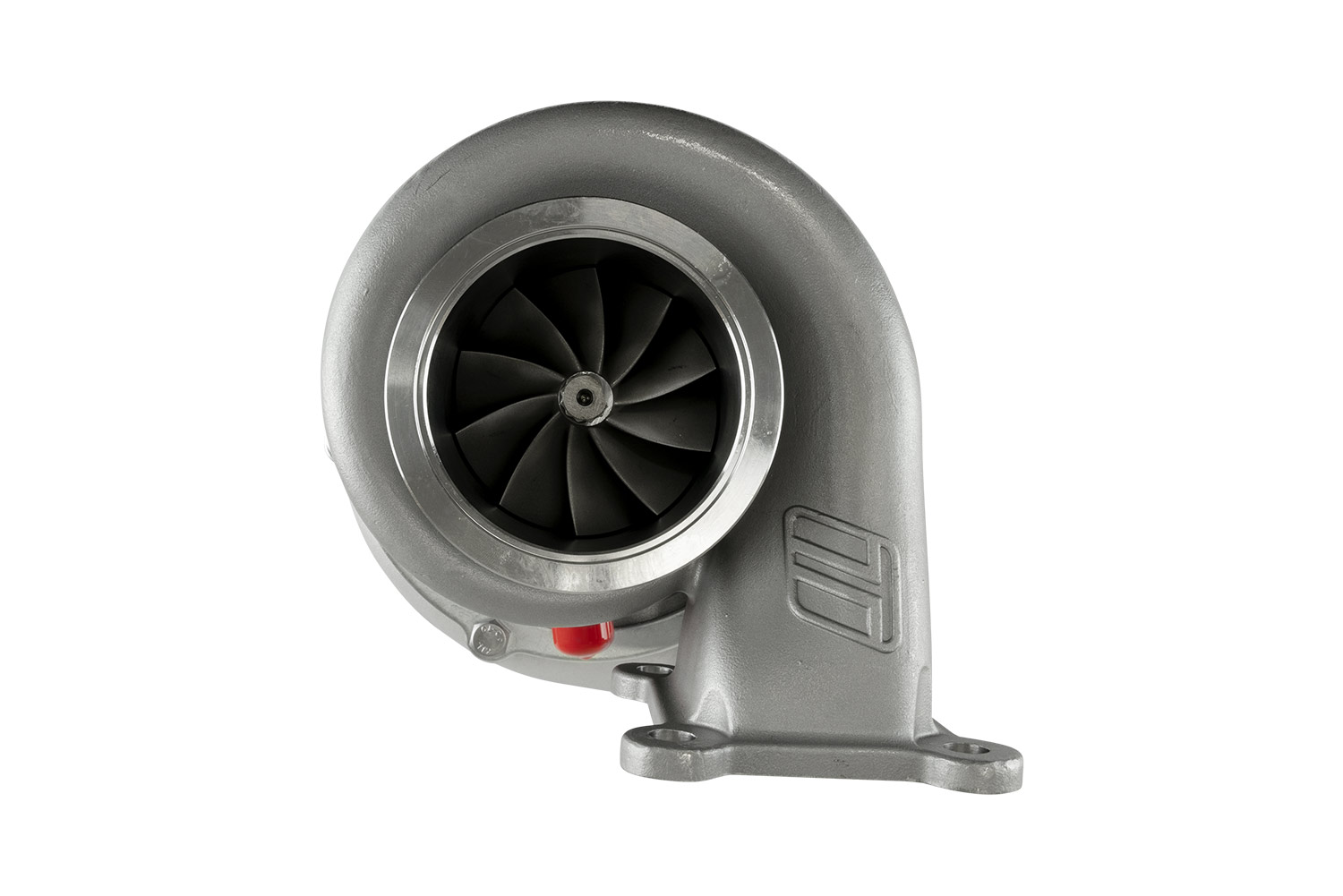

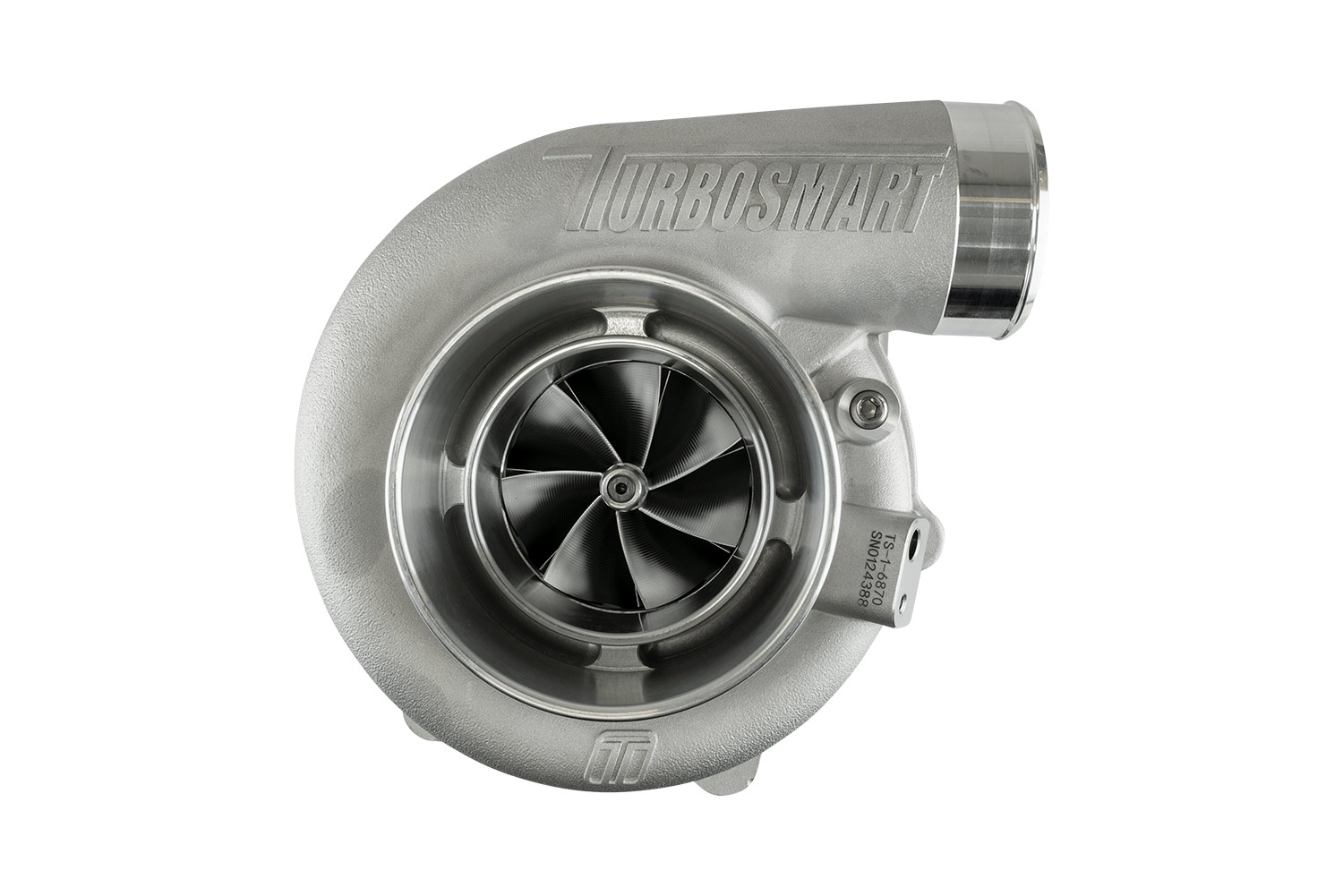

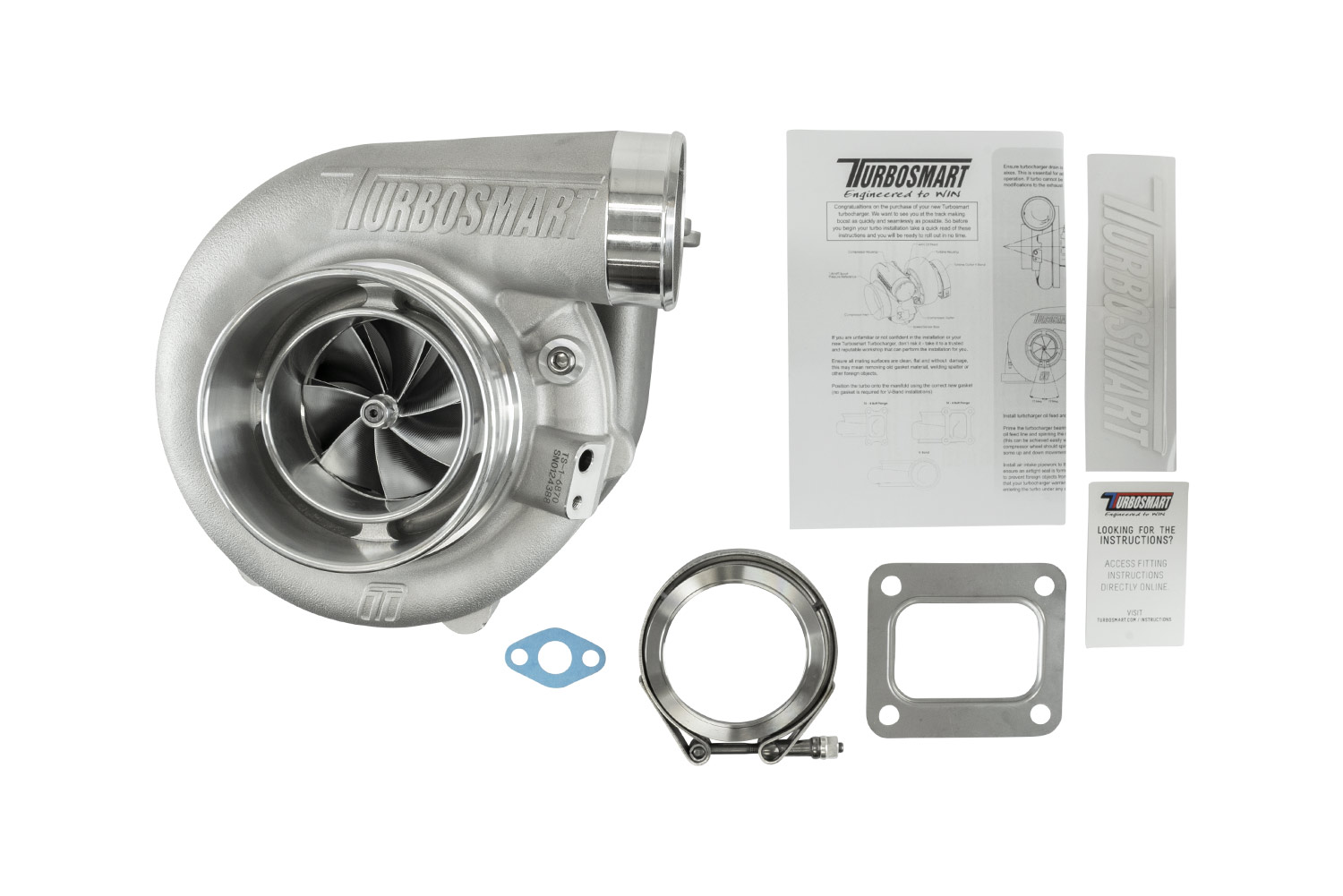

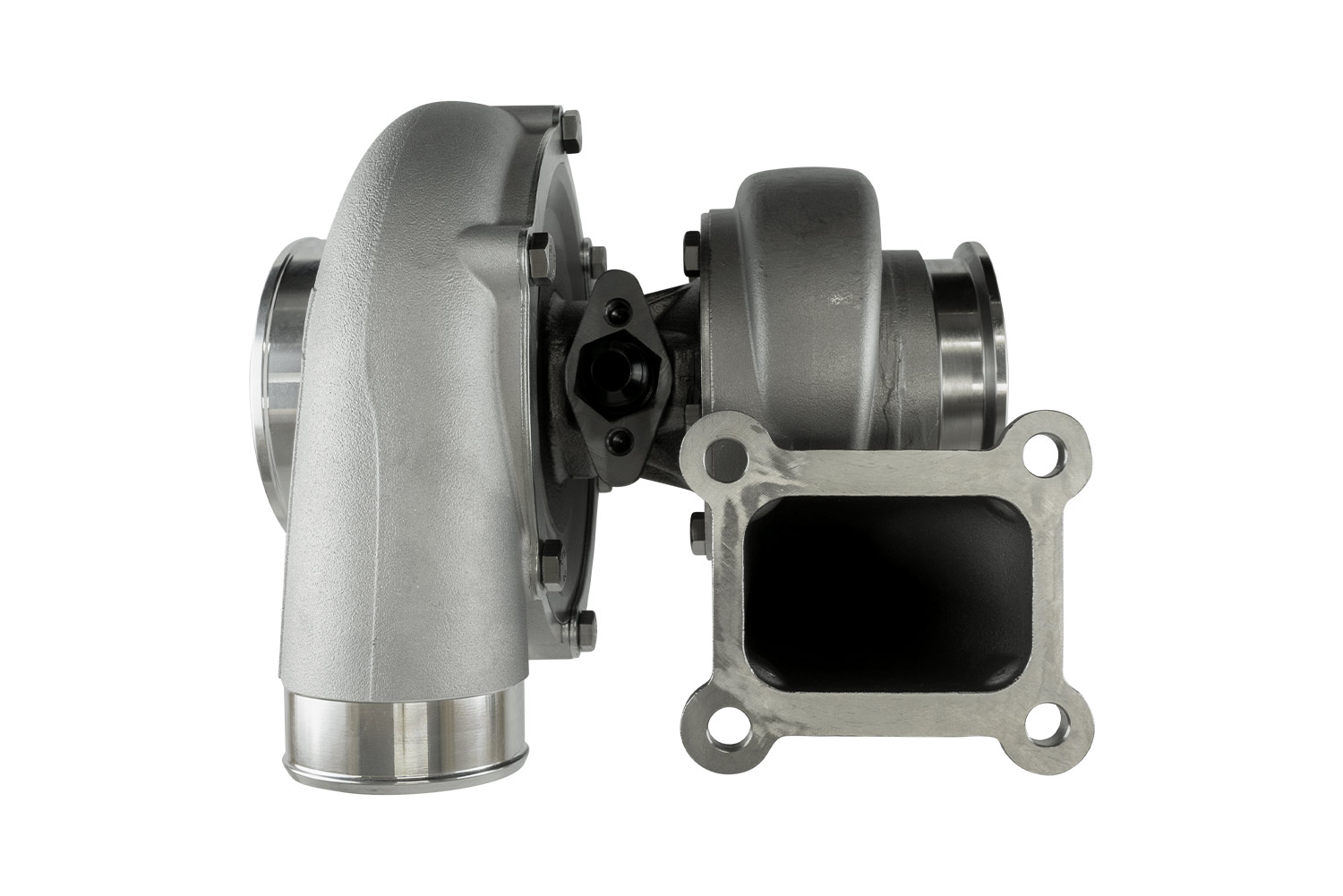

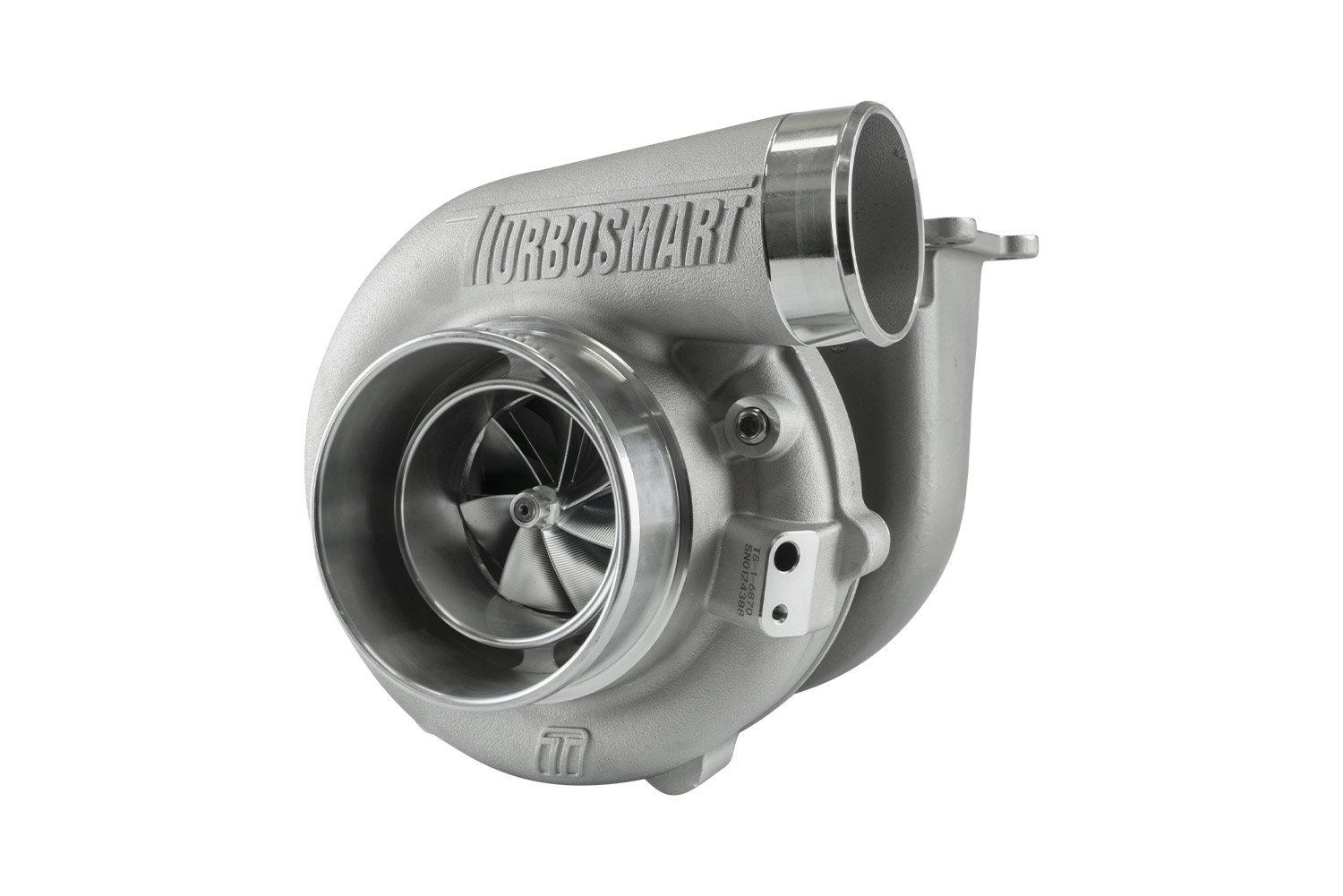

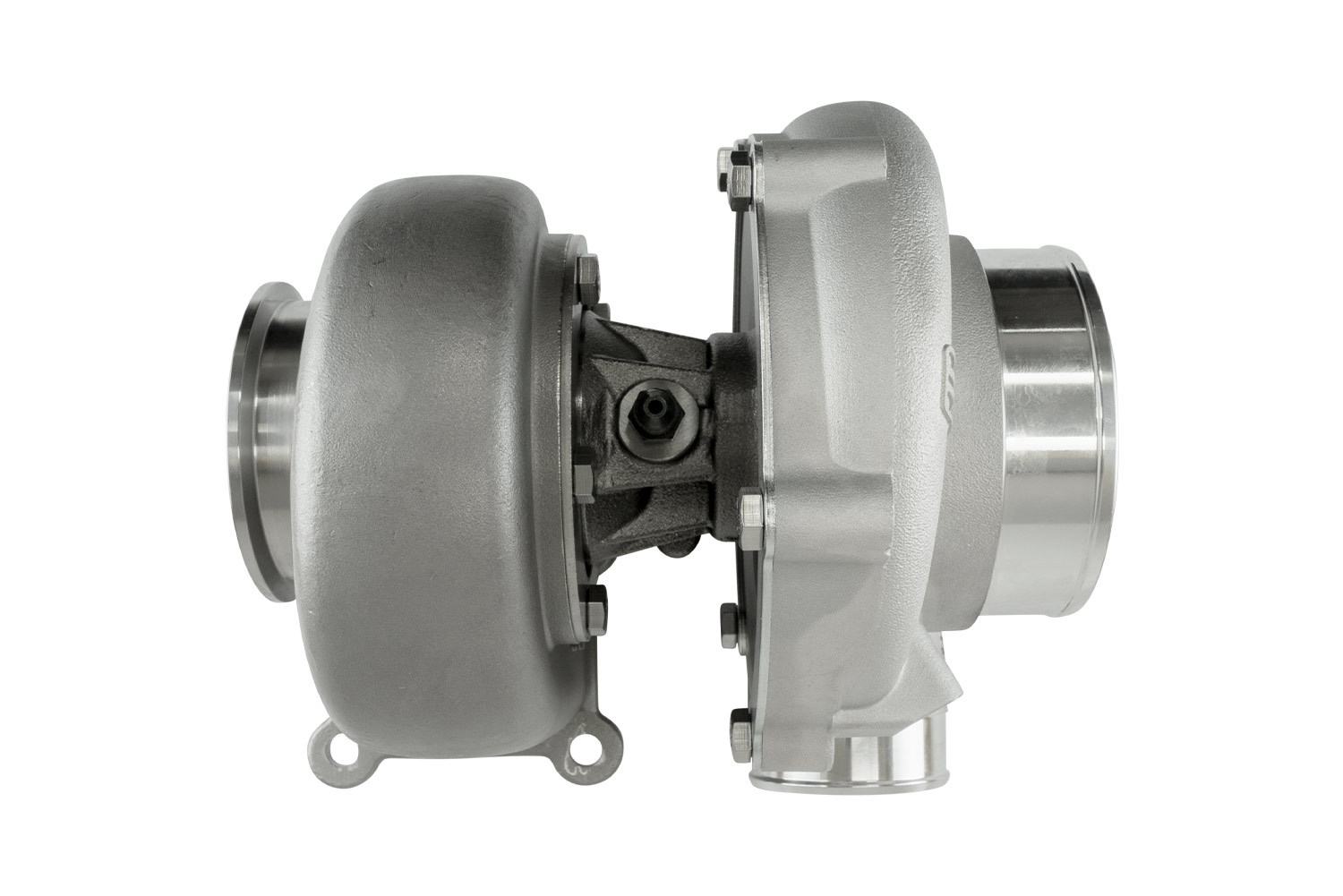

TS-1 Turbocharger 6870 (Kompact) T4 0.82AR Externally Wastegated

Ts 1 6870b T4082e 1
Ts 1 6870b T4082e 2
Ts 1 6870b T4082e 3
Ts 1 6870b T4082e 4
Ts 1 6870b T4082e 5
Ts 1 6870b T4082e 6

AUD $4,174.95

Turbosmart TS-1 6870 (Kompact) T4 Turbocharger (0.82AR Externally Wastegated)Specifications

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 68mm
Turbine Inlet: T4
Turbine Exducer: 70mm
Turbine AR: 0.82
Turbine Outlet: V-Band (3.00″)
Weight: 6.86kg / 15.1lbs
Horsepower Rating: 850-990HP

SKU: TS-1-6870B-T4082E Category: Brand:

Description

Turbosmart TS-1 6870 (Kompact) T4 Turbocharger (0.82AR Externally Wastegated) Features

  • Unparalleled transient response
  • Aggressive aerodynamics with 7+7 splitter wheels
  • Lightweight 310s stainless steel investment cast turbine housings
  • Lightweight, Aluminium compressor covers
  • CFD driven designed housings for optimal A/Rs and flow
  • T14 Inconel turbine wheel for extreme EGT’s
  • VSR speed balanced
  • Proprietary dual ceramic bearing system
  • Integrated Iron backplate on center housing

Turbosmart TS-1 6870 (Kompact) T4 Turbocharger (0.82AR Externally Wastegated)Specifications

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 68mm
Turbine Inlet: T4
Turbine Exducer: 70mm
Turbine AR: 0.82
Turbine Outlet: V-Band (3.00″)
Weight: 6.86kg / 15.1lbs
Horsepower Rating: 850-990HP
