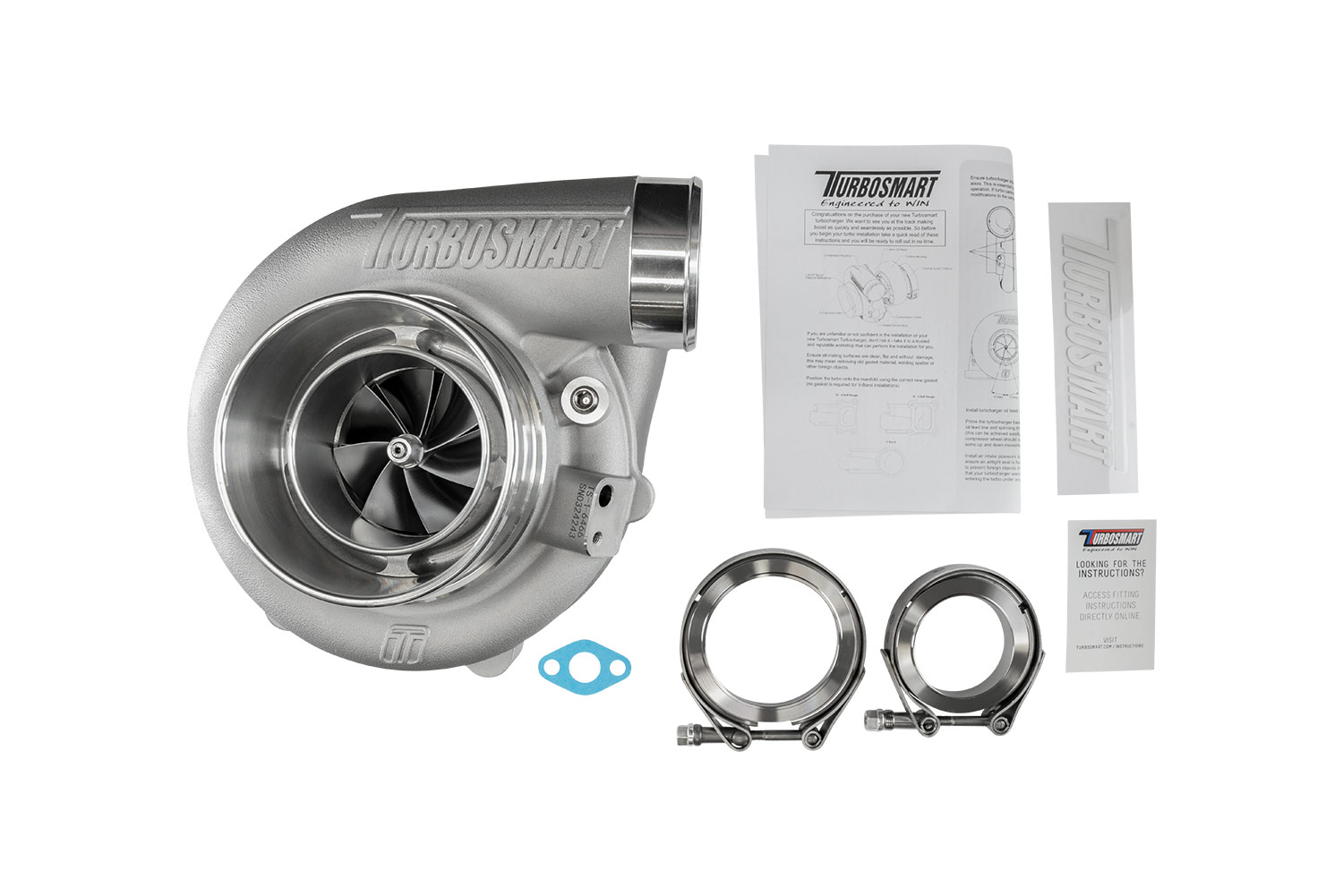

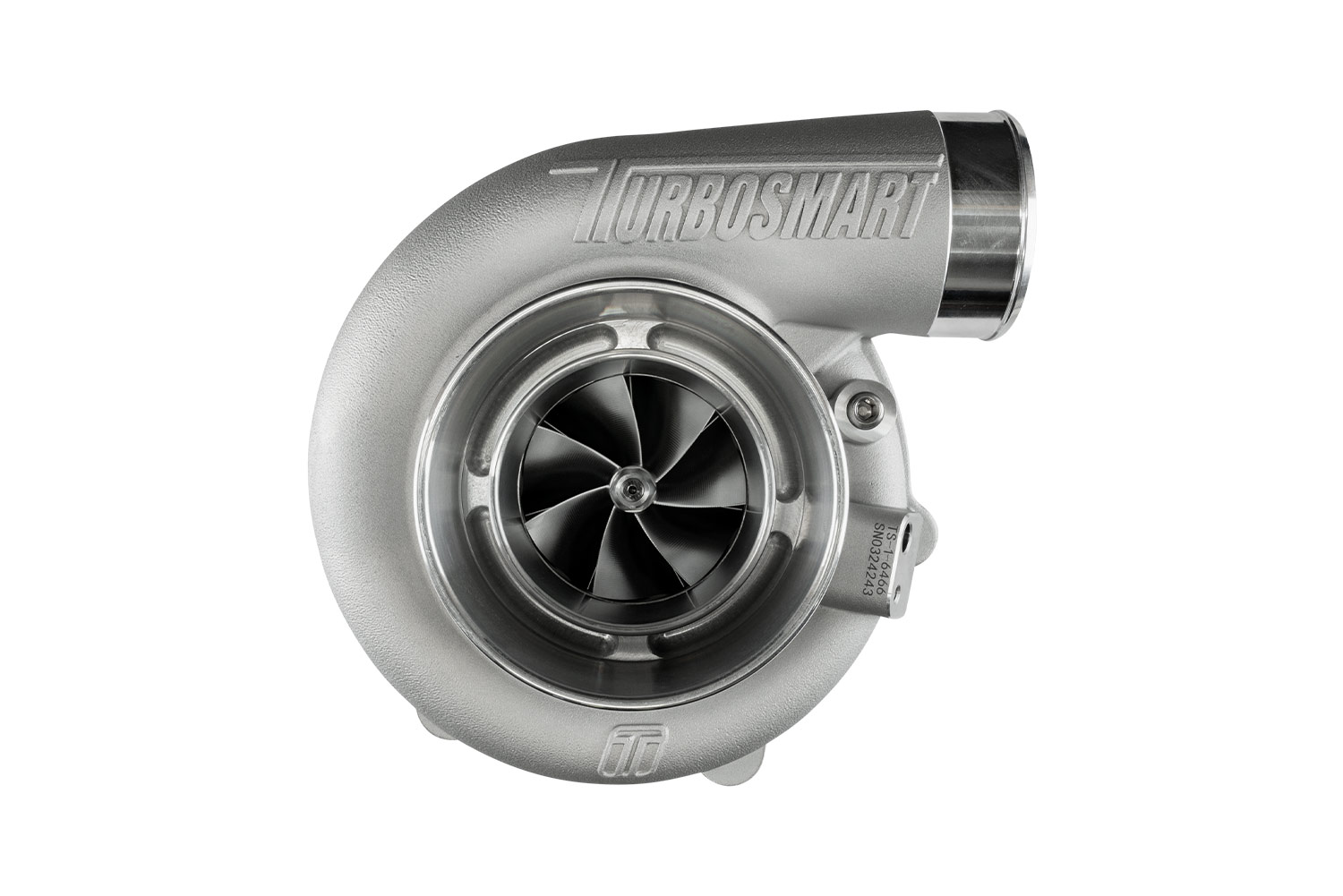

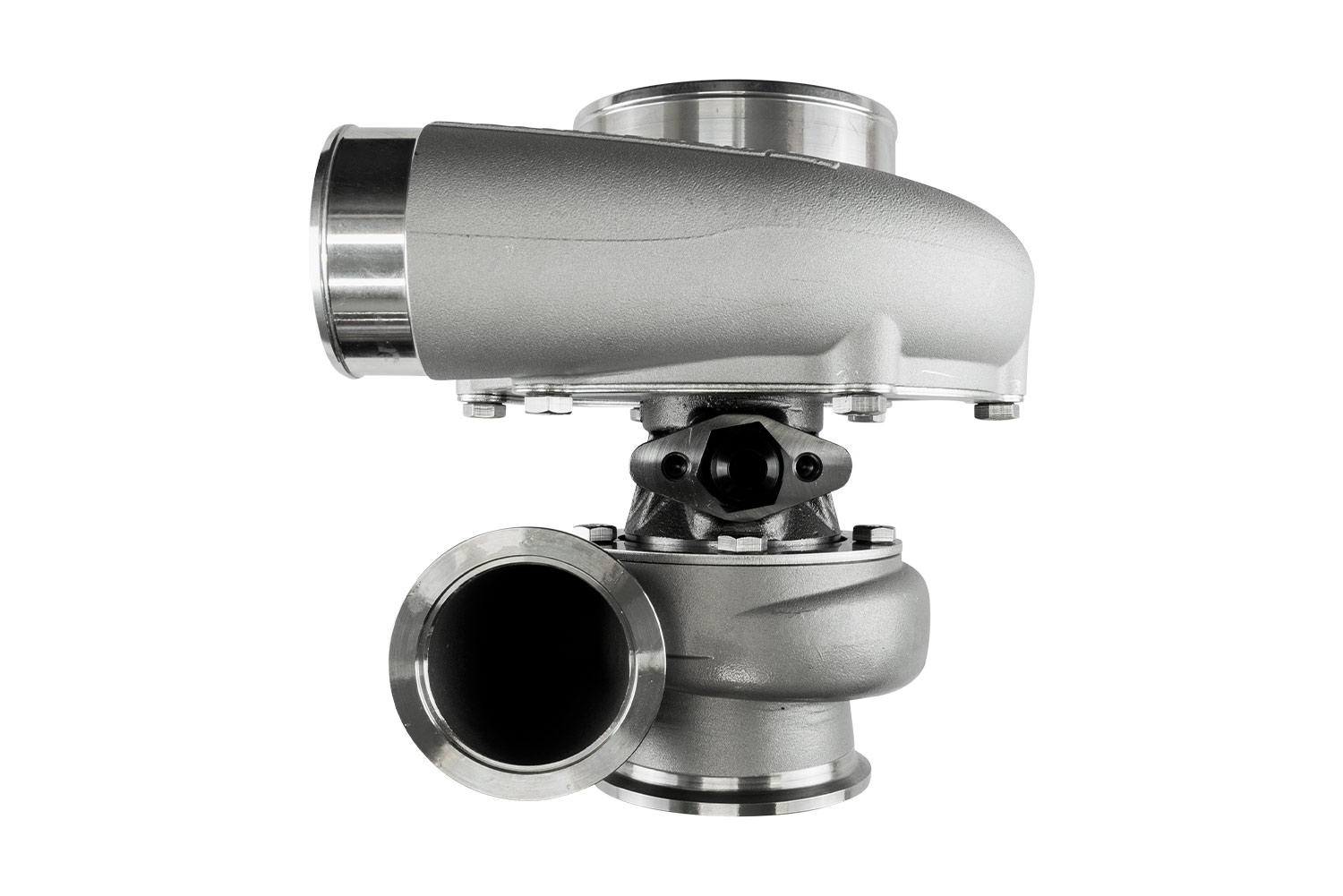

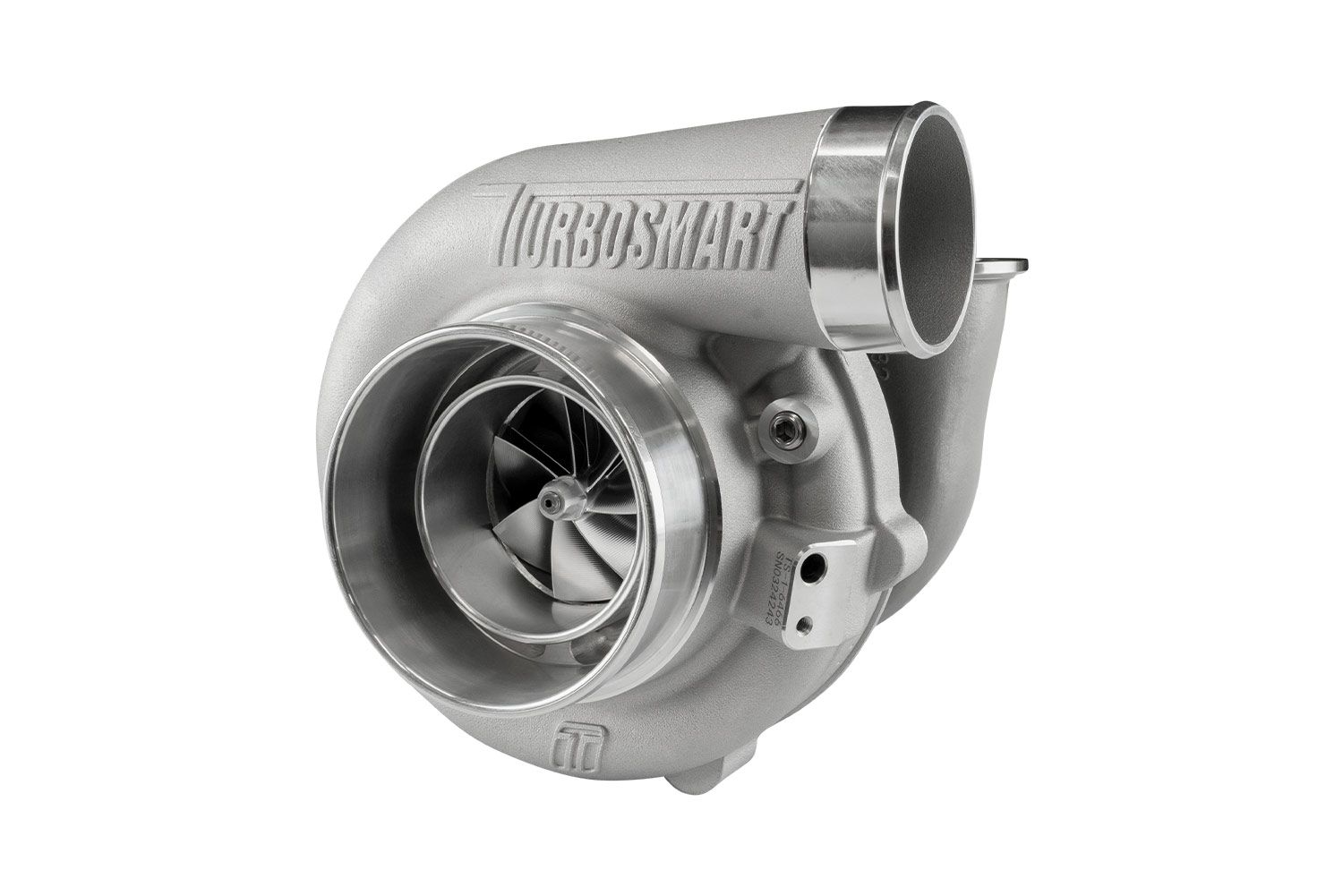

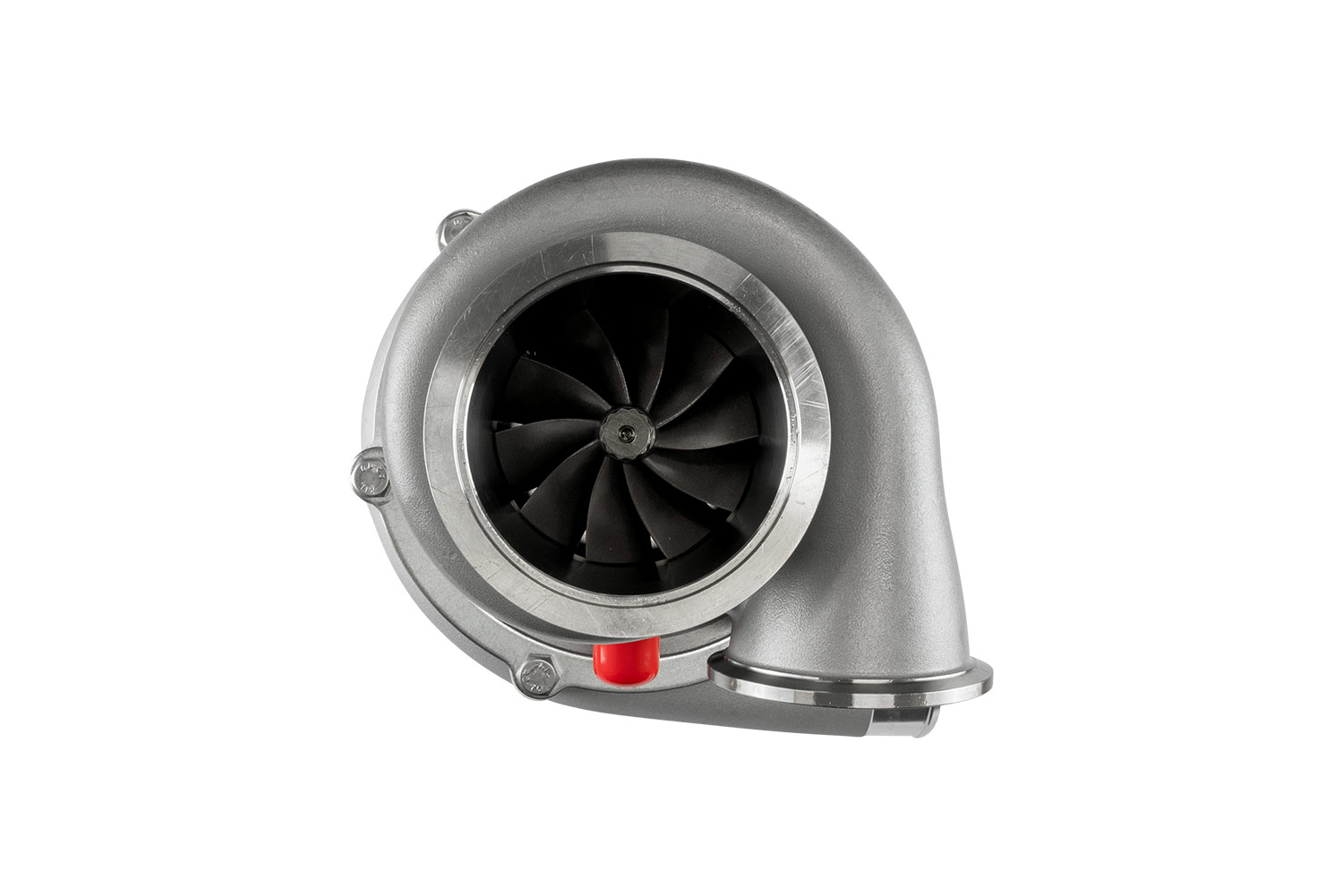

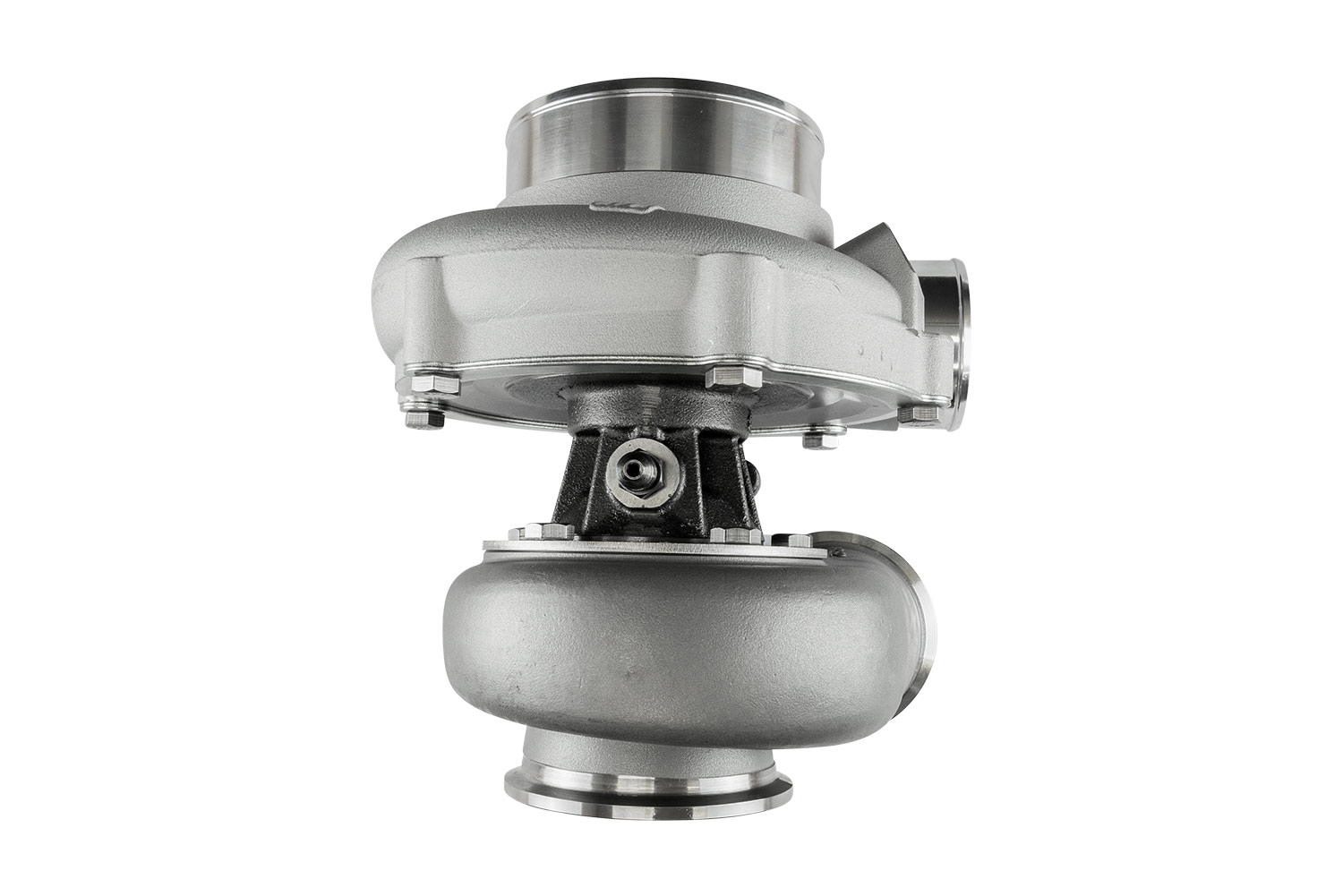

TS-1 Turbocharger 6466 V-Band 1.07AR Externally Wastegated

Ts 1 6466b Vb107e 1
Ts 1 6466b Vb107e 2
Ts 1 6466b Vb107e 3
Ts 1 6466b Vb107e 4
Ts 1 6466b Vb107e 5
Ts 1 6466b Vb107e 6

AUD $3,849.95

Turbosmart TS-1 6466 V-Band Turbocharger (1.07AR Externally Wastegated)

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 64mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 66mm
Turbine AR: 1.07
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 750-930HP

SKU: TS-1-6466B-VB107E Category:

Description

Turbosmart TS-1 6466 V-Band Turbocharger (1.07AR Externally Wastegated) Features

  • Unparalleled transient response
  • Aggressive aerodynamics with 7+7 splitter wheels
  • Lightweight 310s stainless steel investment cast turbine housings
  • Lightweight, Aluminium compressor covers
  • CFD driven designed housings for optimal A/Rs and flow
  • T14 Inconel turbine wheel for extreme EGT’s
  • VSR speed balanced
  • Proprietary dual ceramic bearing system
  • Integrated Iron backplate on center housing

Turbosmart TS-1 6466 V-Band Turbocharger (1.07AR Externally Wastegated) Specifications

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 64mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 66mm
Turbine AR: 1.07
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 750-930HP
