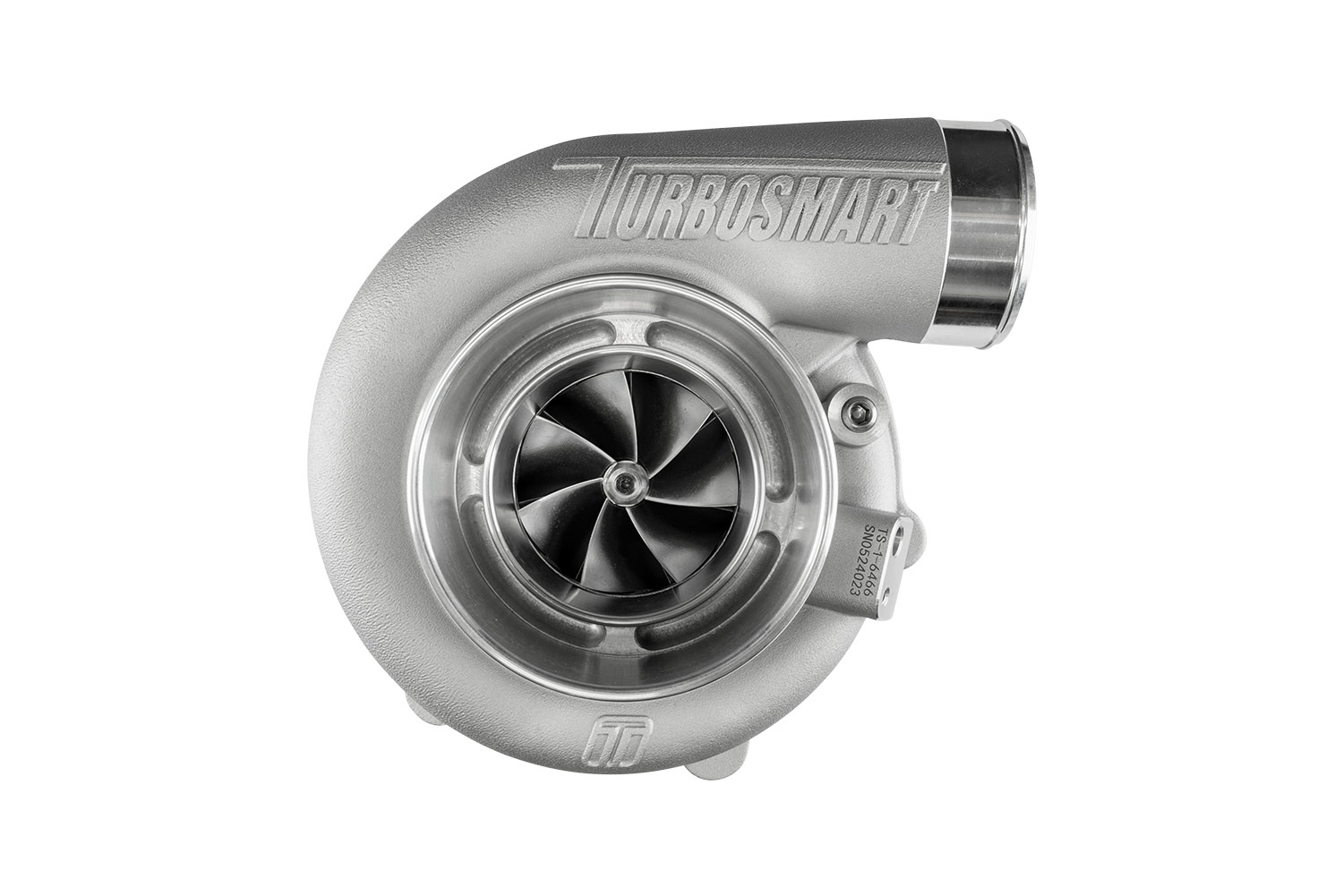

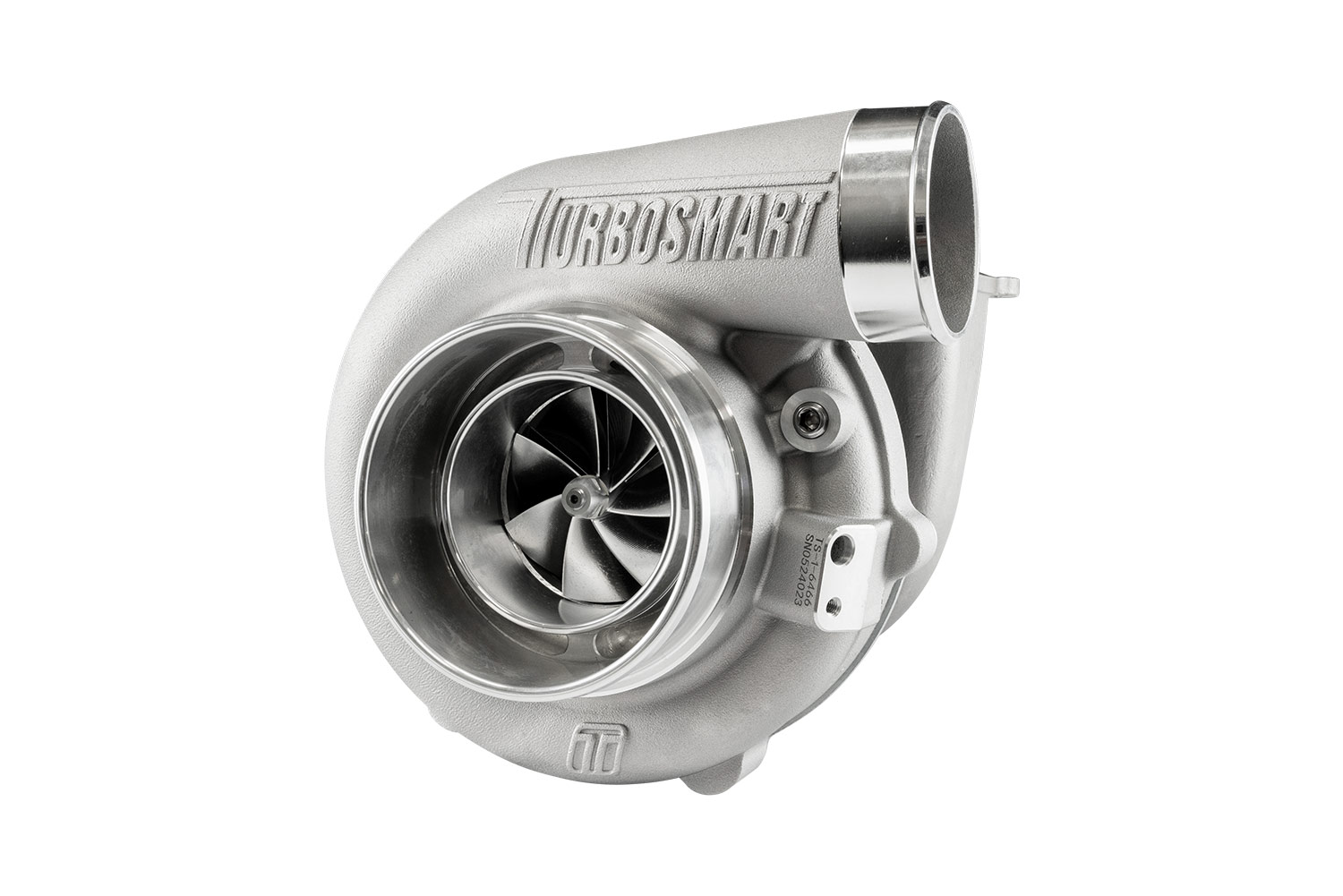

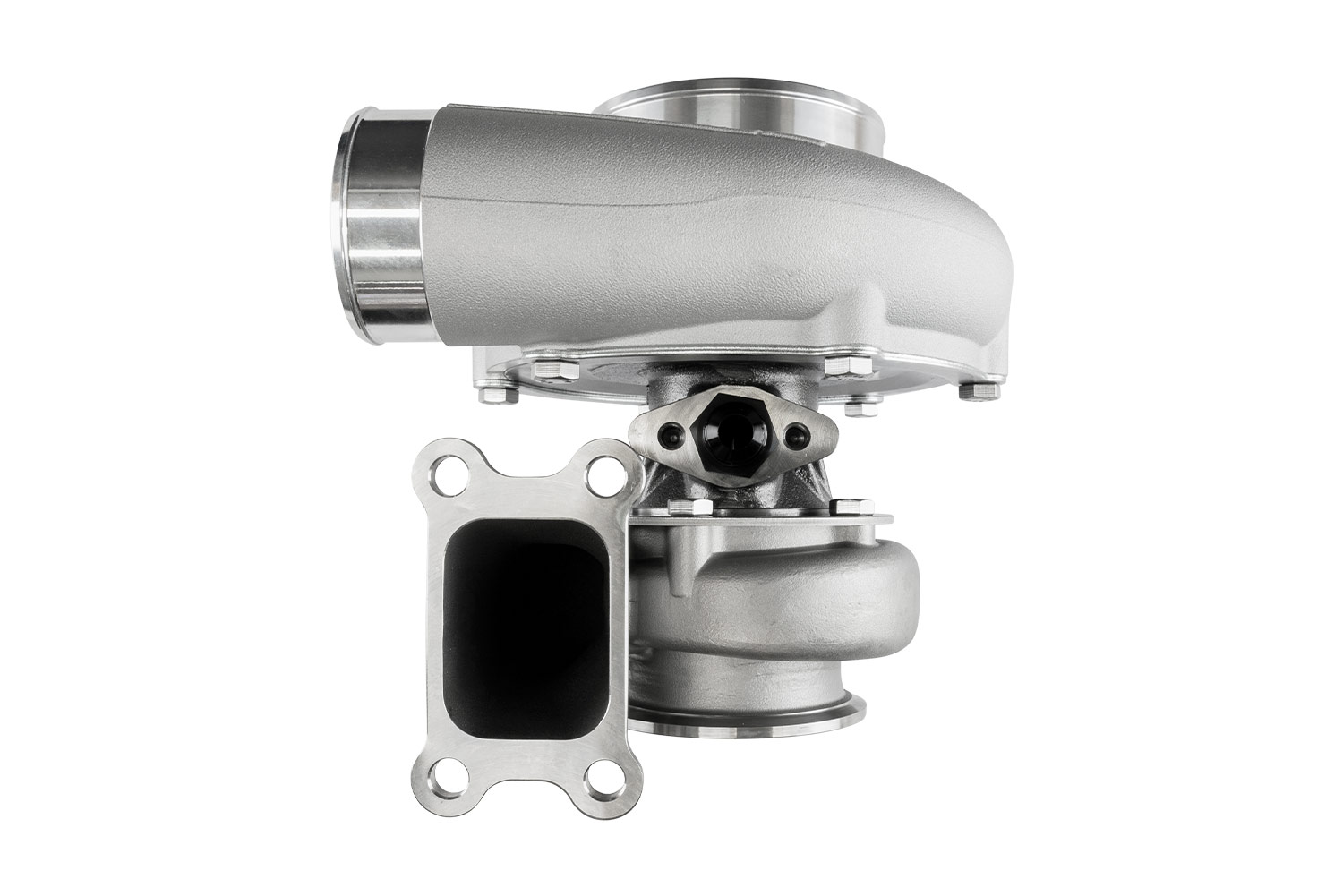

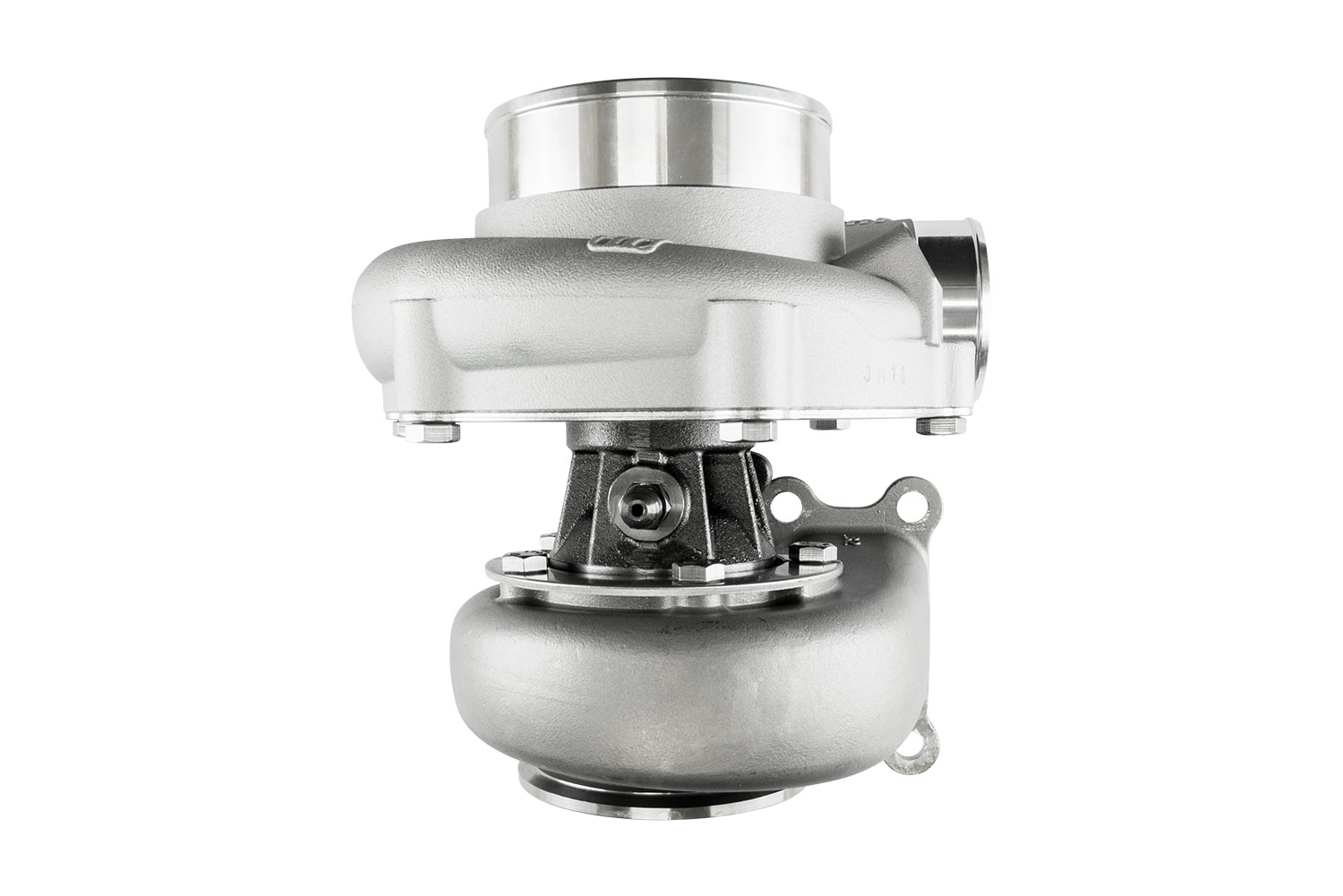

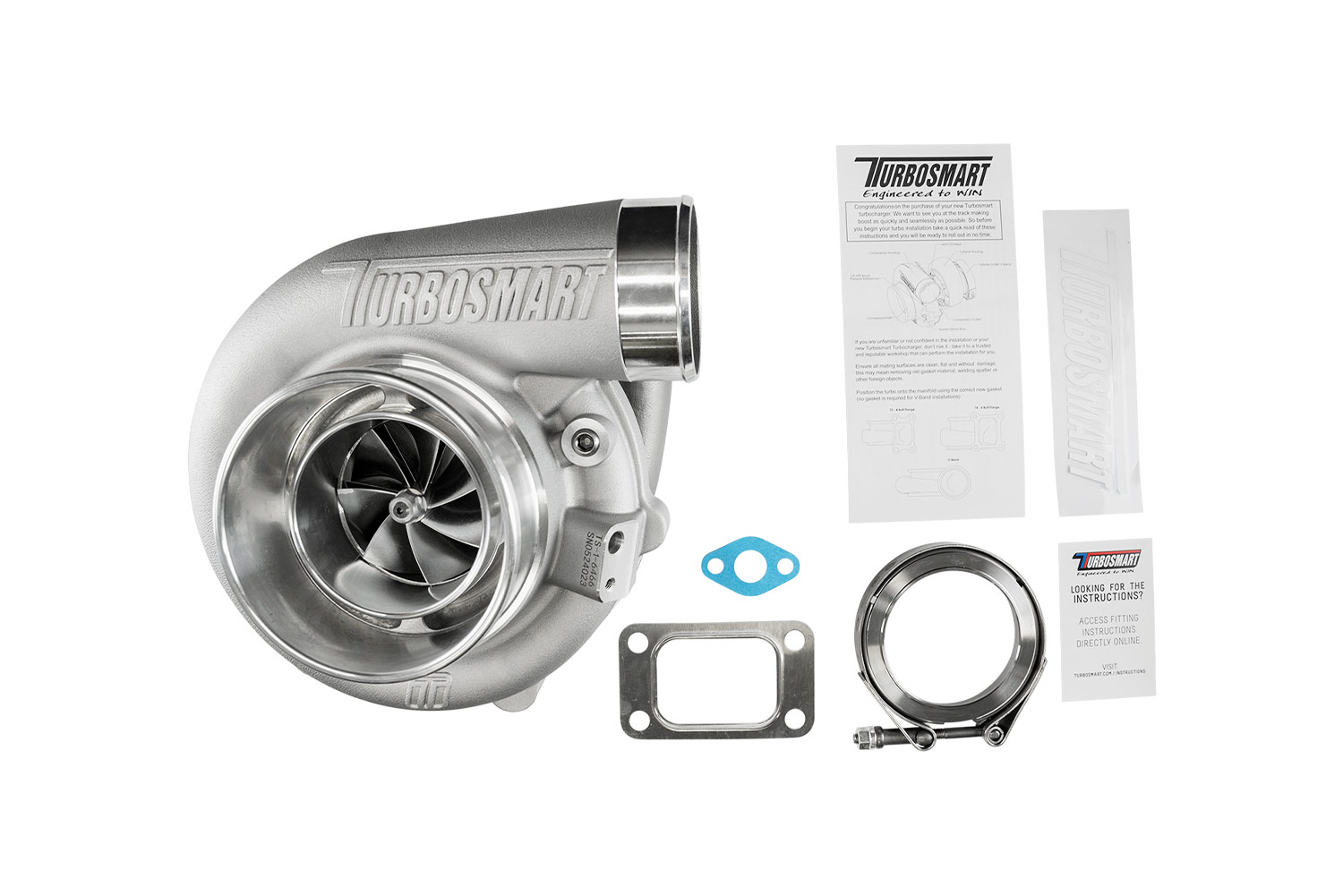

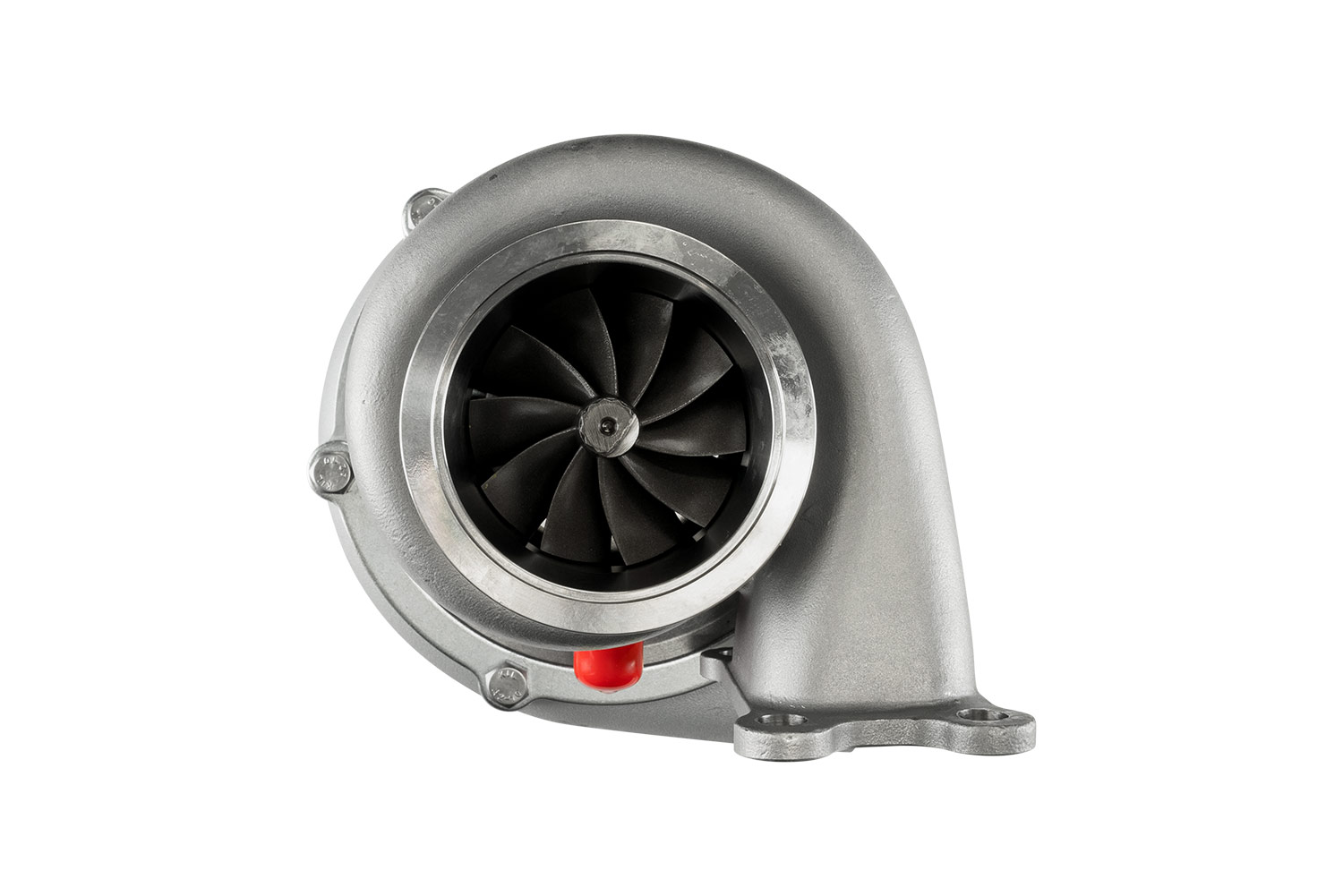

TS-1 Turbocharger 6466 T3 0.82AR Externally Wastegated

Features Turbosmart TS-1 6466 T3 Turbocharger (0.82AR Externally Wastegated)

Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal ARs and flow
T14 Inconel turbine wheel for extreme EGTs
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing

Specifications Turbosmart TS-1 6466 T3 Turbocharger (0.82AR Externally Wastegated)

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 64mm
Turbine Inlet: T3 Flange
Turbine Exducer: 66mm
Turbine AR: 0.82
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 750-930HP
