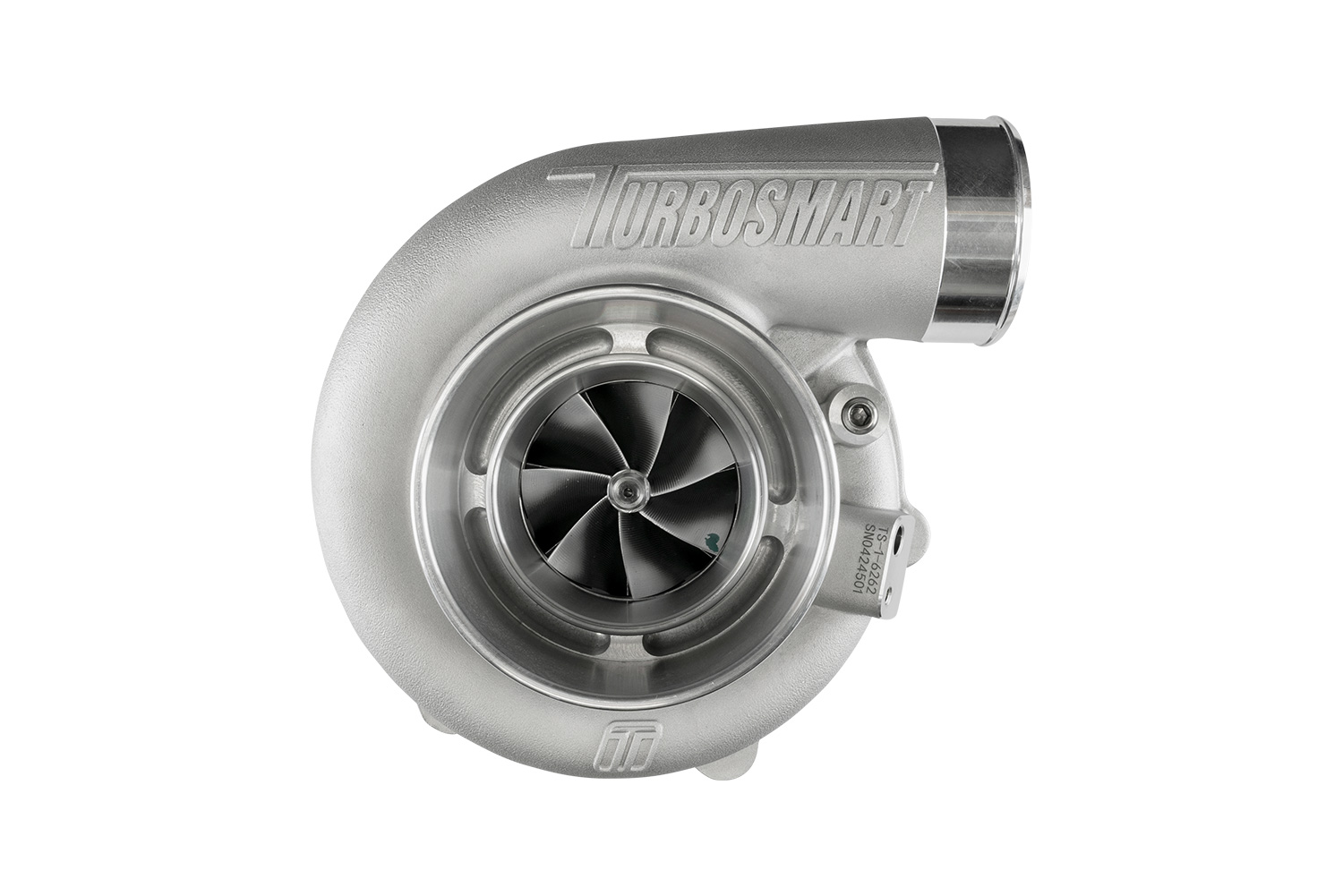

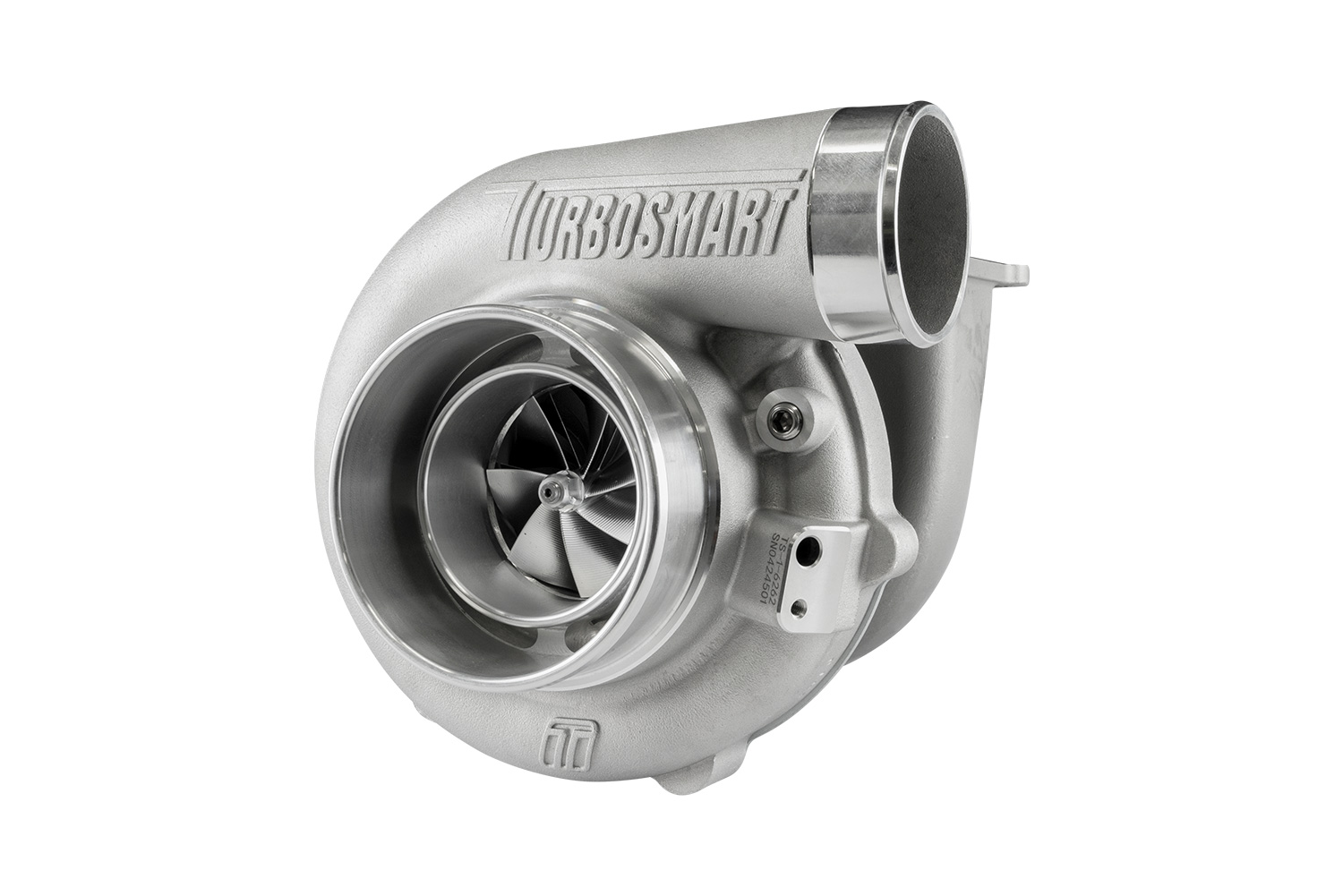

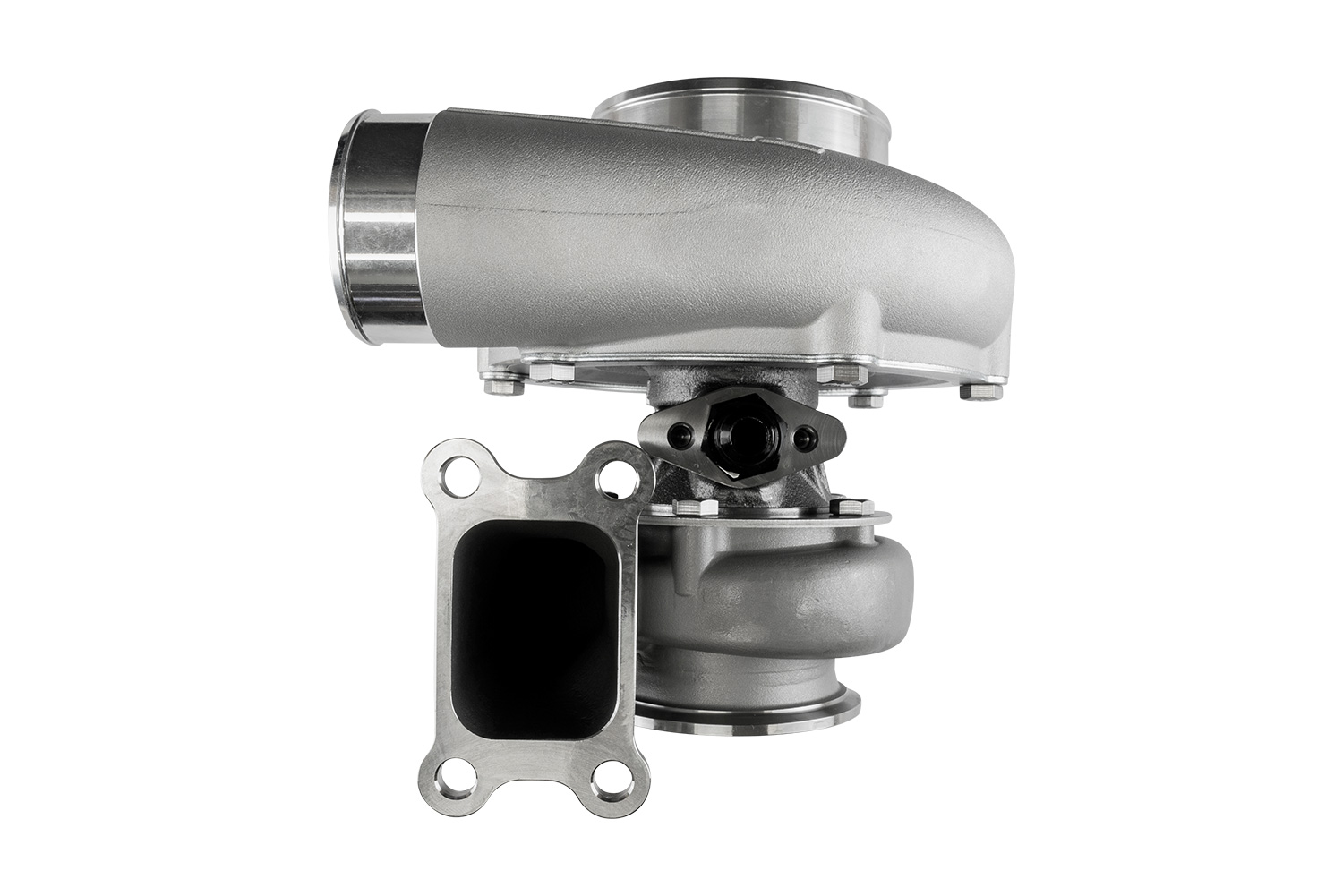

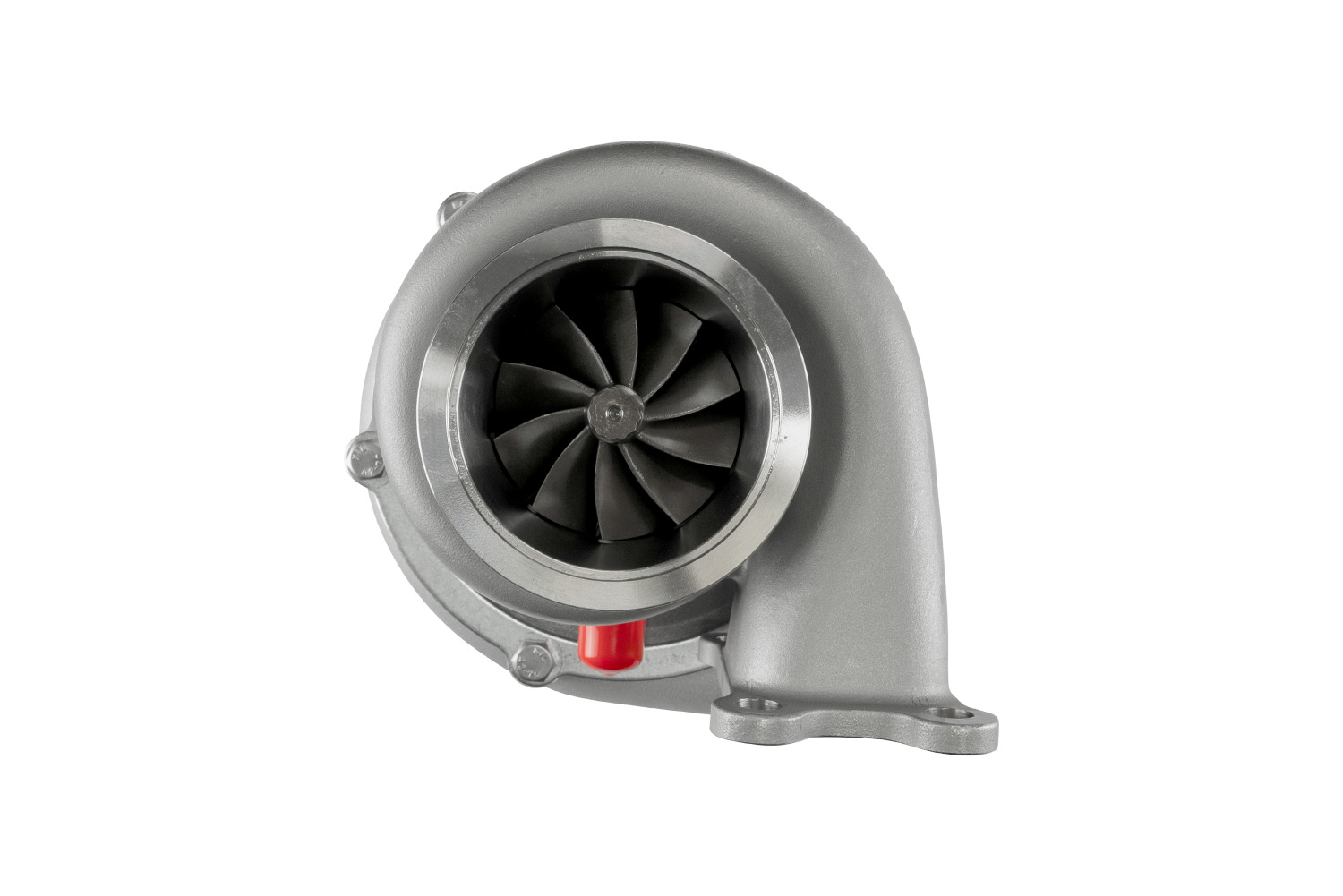

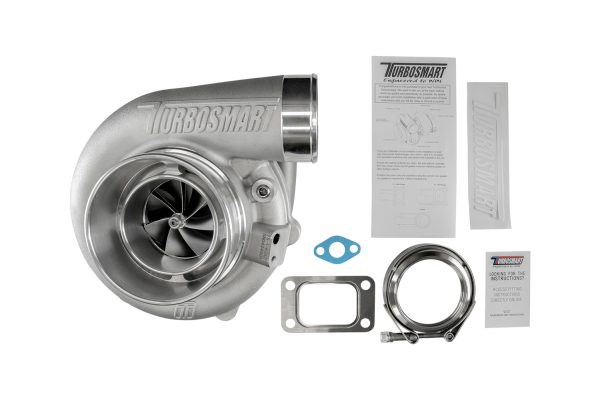

TS-1 Turbocharger 6262 T3 0.63AR Externally Wastegated
AUD $3,389.95
Turbosmart TS-1 6262 T3 Turbocharger (0.63AR Externally Wastegated) Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 62mm
Turbine Inlet: T3 Flange
Turbine Exducer: 62mm
Turbine AR: 0.63
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 650-800HP
Description
Turbosmart TS-1 6262 T3 Turbocharger (0.63AR Externally Wastegated) Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal ARs and flow
T14 Inconel turbine wheel for extreme EGTs
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing
Turbosmart TS-1 6262 T3 Turbocharger (0.63AR Externally Wastegated) Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 62mm
Turbine Inlet: T3 Flange
Turbine Exducer: 62mm
Turbine AR: 0.63
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 650-800HP
