GenV Hypergate45-Lite 14psi External Wastegate – Black (TS-0553-1612)
Description
Turbosmart GenV Hypergate45-Lite 14psi External Wastegate – Black (TS-0553-1612)
The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – the highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance, and best-in-class flow performance for optimum control and longevity.
Turbosmart GenV WG45 HyperGate45 Design
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management; the GenV Range has more features, options, and performance than any other gate.
Turbosmart GenV WG45 HyperGate45 Compatibility
A direct fit upgrade to all Gen4 Turbosmart wastegates, the WG45 features a unique collar-locking system, variable actuator cap and base for easy 360-degree routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports, and comes with the full range of available springs.
Turbosmart GenV WG45 HyperGate45 Options
- Available in Black, Blue, Red, Purple, and Sleeper colours
- Wastegate Position Sensor optional upgrade
- Compressed Gas / CO2 version
- Motorsport / Extreme Temp version
- Electronically Actuated / eWG version
- High Pressure (up to 50psi base) version
Turbosmart GenV WG45 HyperGate45 Features
- Class-leading thermal performance
- Class-leading CFD & bench validated flow performance
- Class-leading fatigue resistance
- Optional liquid actuator cooling
- Optional position sensor available separately
- Rotatable / clock-able actuator housing
- Nitronic 60 valve guide & high temp 347 SS body
- 17-7 PH stainless steel springs
- Strap-type V-band clamps

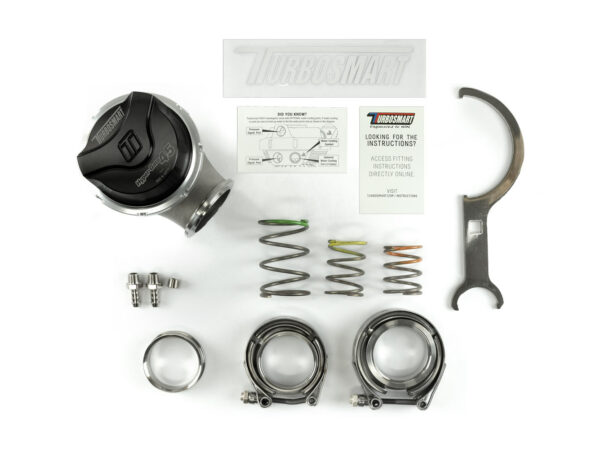

What’s Included
- GenV Wastegate unit
- All Springs Included
- 3.5.7.14psi (1 Inst. As per Description)
- Locking Collar Tool
- GenV SS316 Valve seat
- Strap Type V-Bands
- Inlet & Outlet Weld Flanges
- Hose Tail & Blank Fitting Kit
- Turbosmart Decal
SKU: TS-0553-1612
