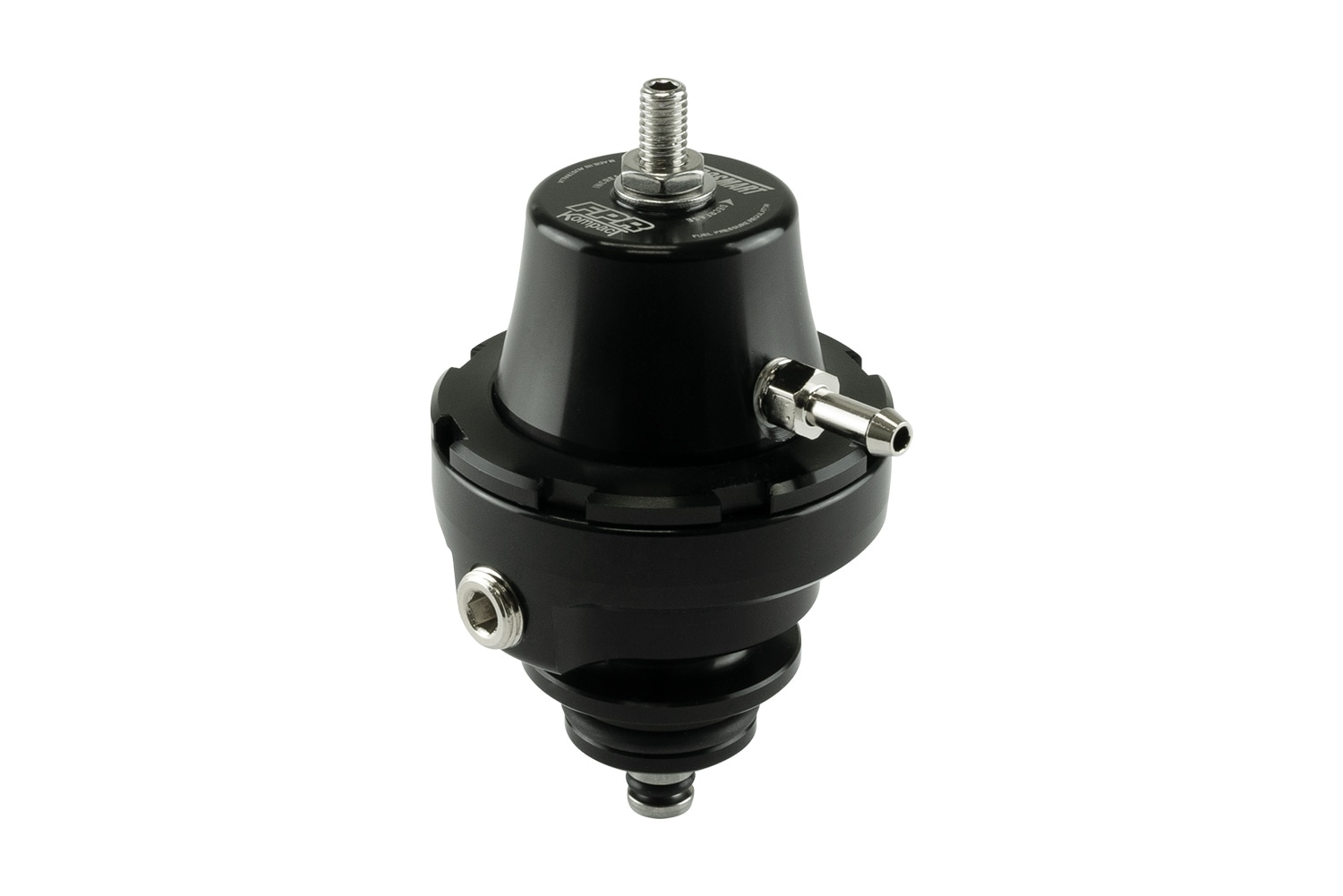

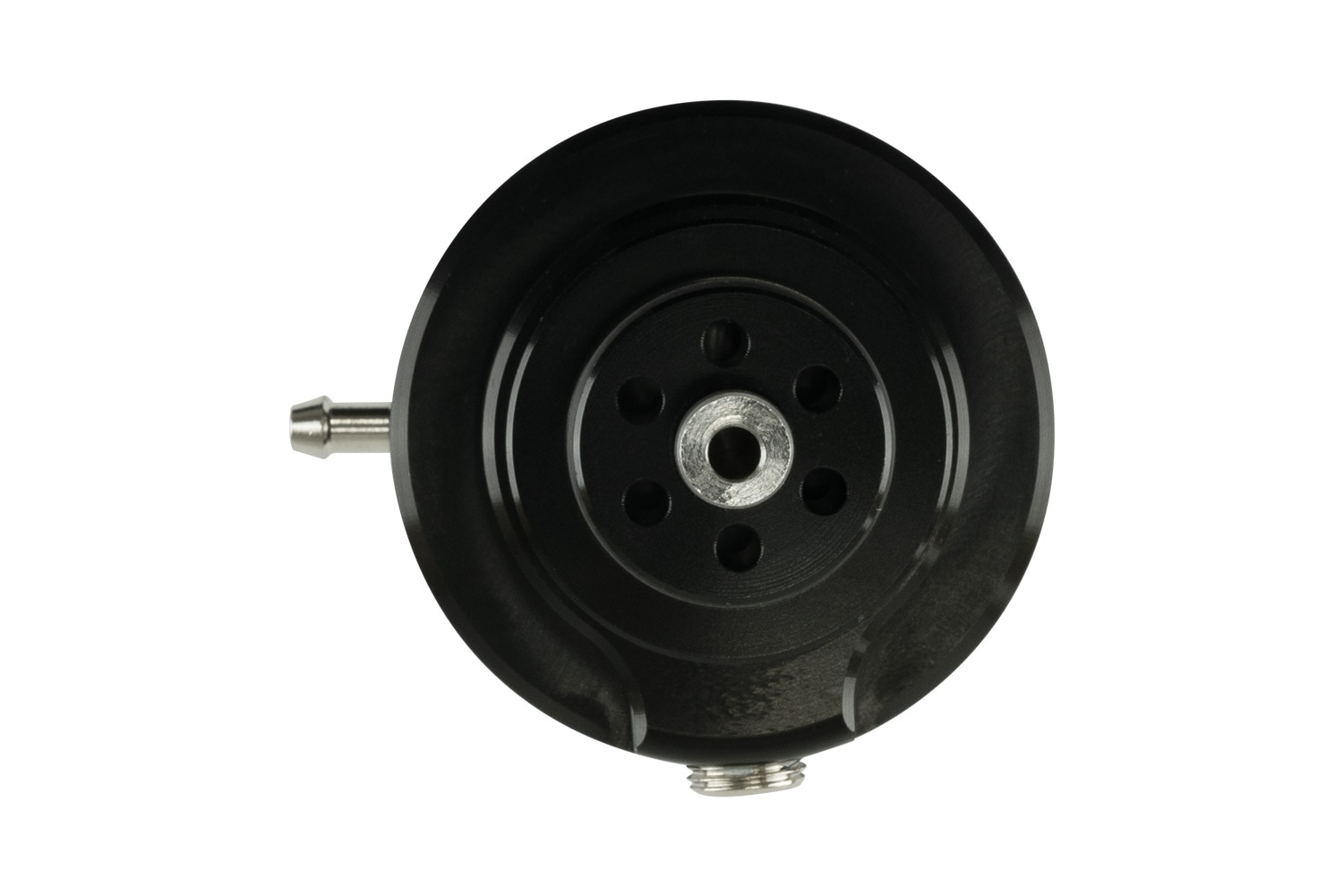

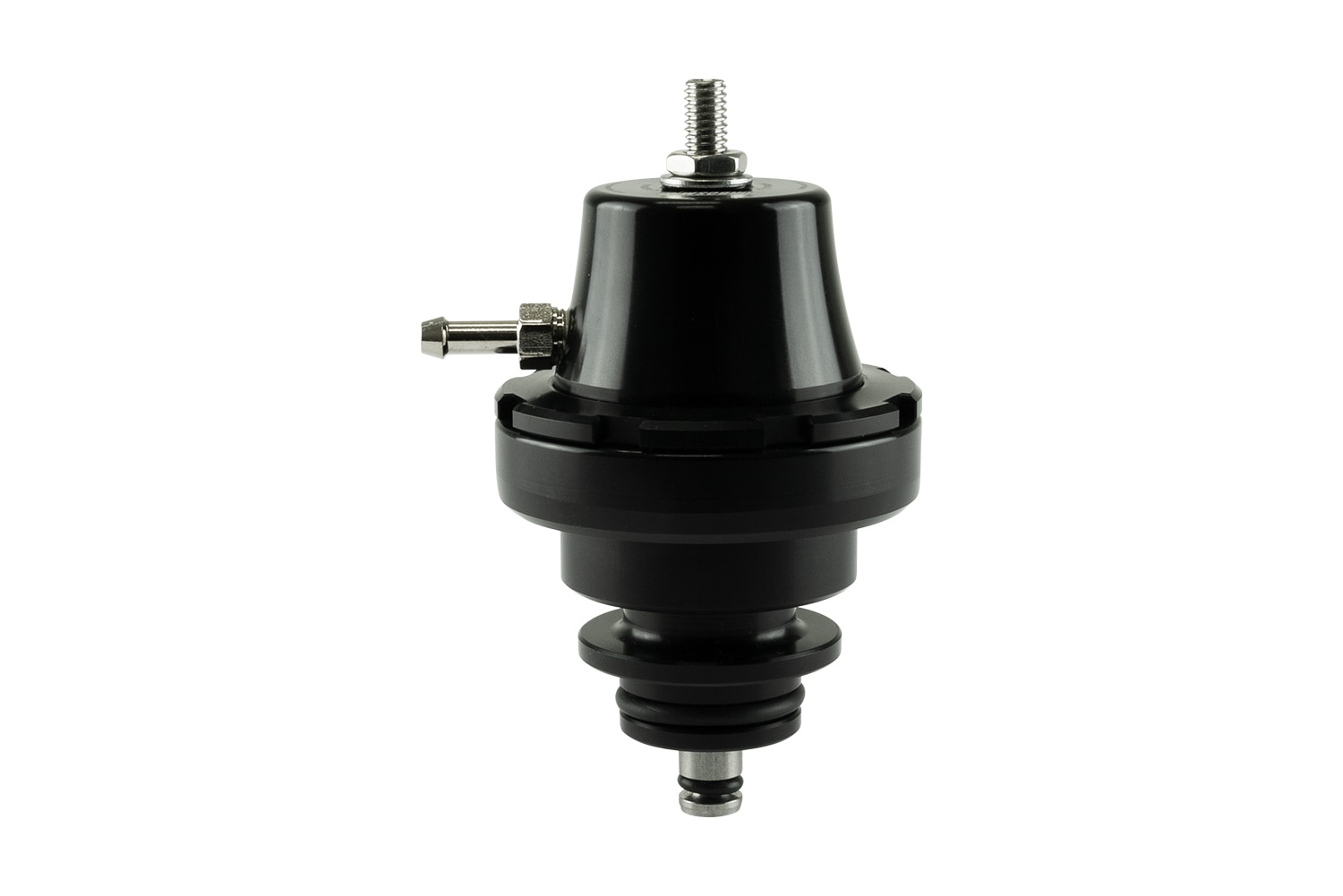

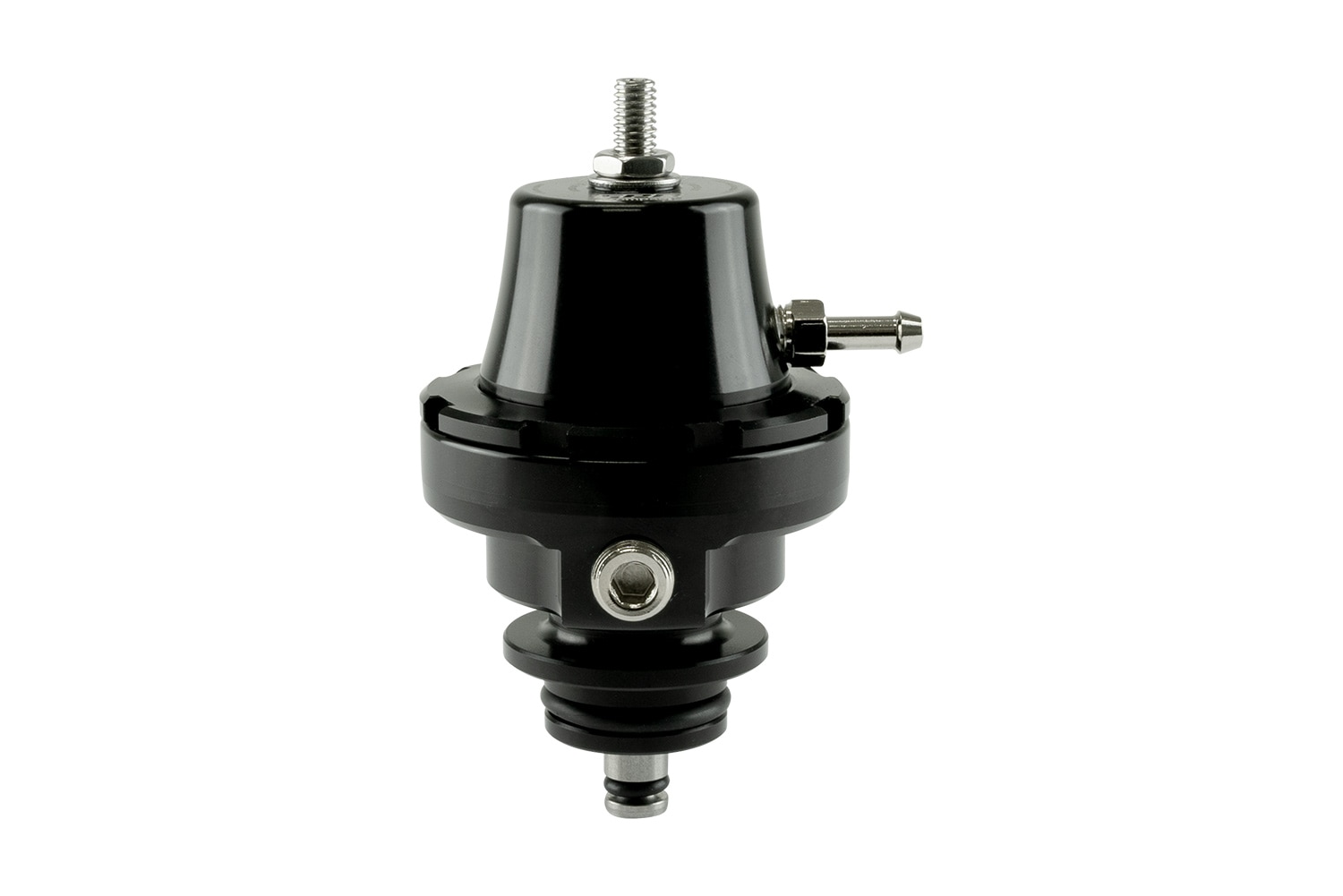

Turbosmart FPR Kompact Bosch/Barra (Sleeper)

Turbosmart FPR Kompact Bosch/Barra (Sleeper) TS-0404-1005

An All Black Fuel Regulator Upgrade Series for OE and Mild Upgrades to around 800HP. The FPR Kompact Series includes Universal (1/8NPT) Fuel Fittings as well as Bolt-ON direct replacement for Bosch in-rail style regulators as fitted to the VAG (Volkswagen Audi Group) of vehicles and the Ford ‘Barra’ Engine as found in the Australian Delivered Ford XR6 turbo. Providing class leading fuel control and response with a small footprint.

• FPR Kompact range for Bolt on & OE (EFI) Upgrade for 35psi to 80psi
• FPR Kompact Low Pressure (LP) upgrade for 3psi to 20psi

Direct Fit / Bolt-On Compatibility

• Volkswagen Audi Group (VAG) Engines
• Includes a wide range of VW and Audi models that use Bosch in-rail style regulators (commonly 1.8T, 2.0TFSI, 2.0TSI, VR6, etc.).
• Ford ‘Barra’ Inline-6 Turbo Engine
• As fitted to the Ford Falcon XR6 Turbo (Australian-delivered models).

Features

• Stainless Steel Valve Seat
• Suitable for all fuel types
• 1:1 Class Leading Ratio & Response
• Adjustable Pressure
• 1/8 NPT Pressure Sensor Port
• Unique Locking Collar Design
• Milspec Diaphragm
• Detailed Specific Fuel Flow Data & Spec

FPR Kompact Series Available In:

• FPR Kompact Bosch/Barra (Sleeper) TS-0404-1005
• FPR Kompact Uni 1/8″ NPT (Sleeper) TS-0404-1015
• FPR Kompact Low Pressure (LP) Uni 1/8″ NPT (Sleeper) TS-0404-1115

Compatible Barra Models

Ford Falcon (Turbo Barra Models)

• BA Falcon XR6 Turbo (2002–2005)

• BA MkII Falcon XR6 Turbo (2004–2005)

• BF Falcon XR6 Turbo (2005–2008)

• BF MkII Falcon XR6 Turbo (2006–2008)

• FG Falcon XR6 Turbo (2008–2014)

• FG X Falcon XR6 Turbo (2014–2016)

Luxury turbo models:

• BF G6E Turbo (2005–2008)

• FG G6E Turbo (2008–2014)

• FG X G6E Turbo (2014–2016)
