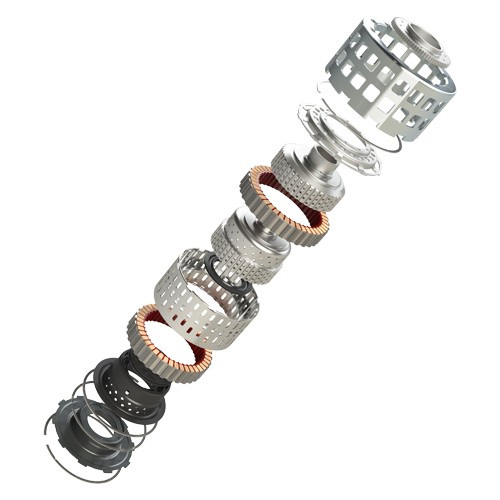

Dodson GT-R R35 GR6 Promax 10 Clutch Kit (DMS-8033)

Dodson GT-R R35 GR6 Promax 10 Clutch Kit (DMS-8033)

• 10 plate clutch build designed for R35 GTR

• Machined billet baskets, one-piece billet inner basket, and rigid alloy outer basket

• Patented friction design and proprietary heat-treated shims and steels

• Heavy duty basket output bearing, ground oil pump gears, and choice of serviceable or lifetime seals

• Light alloy forged pistons with Viton piston seals

• CAD designed and CNC machined components

• Oil pump gear is designed for reduced noise during operation

• Rated for up to 1200 hp; 10 years of development

• Custom builds available upon request

• Suitable for drag racing and high horsepower use

Kit Components

• 20 x Exedy® heavy duty patented frictions

• 20 x Exedy® heavy duty heat treated & ground flat steels

• 1 x Heavy duty high tensile forged alloy piston for clutch A with Viton piston seal

• 1 x Heavy duty high tensile forged alloy piston for clutch B with Viton piston seal

• 1 x Heavy duty billet steel basket (clutch A)

• 1 x Heavy duty billet steel basket (clutch B)

• 1 x Heavy duty high tensile billet outer alloy basket

• 1 x Heavy duty high tensile inner steel basket & gear plate

• 2 x Heavy duty matched oil pump gears

• 6 x Clutch housing circlips

• 2 x High temp piston shaft seals

• 2 x Spring retaining circlips

• 1 x Clutch centre circlip

Vehicle Fitment

• Nissan GT-R R35
